Libec SWIFT JIB50

The Libec SWIFT JIB50 is a telescopic jib arm with a main arm adjustable from 100 to 190 cm. With the arm short it carries 20 kg, at 145 cm 15 kg and fully extended 10 kg. It sits on a tripod with a 100 mm bowl, and the end of the arm takes a video head or the REMO30 remote head. It weighs 16.4 kg and comes with a case, 75 mm adapter and weight.

The Libec SWIFT JIB50 (JB50) is a telescopic jib arm with a main arm adjustable from 100 to 190 cm. At its shortest it carries 20 kg, at 145 cm 15 kg and fully extended 10 kg. The jib weighs 16.4 kg and sits on a tripod with a 100 mm bowl.

A telescopic jib, 100–190 cm

Change the arm length to suit the shot and the space, with up to 20 kg payload and a case included.

Arm 100–190 cmUp to 20 kg payloadWeight 16.4 kg100 mm bowl75 mm adapterPadded case

Length to suit the shot

The main arm extends telescopically from 100 to 190 cm. A short arm carries more, a long one reaches further over the scene.

The whole jib in one case

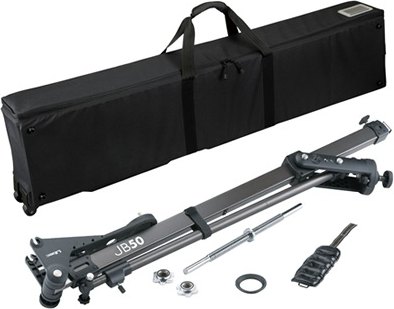

The jib, adapter and weight fit in the supplied padded case. It travels to the shoot as a single piece of luggage.

Ready for remote heads

The end of the arm takes a video head with a 75 mm or 100 mm ball as well as the REMO30 remote head.

Payload follows arm length

At 100 cm the JB50 carries up to 20 kg, at 145 cm 15 kg and at 190 cm 10 kg. You always choose the balance between reach and camera weight.

100 mm bowl

The jib mounts on a tripod with a 100 mm bowl, such as the T102RB.

75 mm adapter

The supplied adapter lets you use a 75 mm ball head.

Adjusting weight

A 1 kg weight is included for fine balancing.

Dolly or track

Set the tripod with the jib on a dolly or a track system.

A new, improved telescopic jib arm that offers much better handling, so you can capture better and more creative shots. With this arm you can shoot over people's heads and, combined with a controllable motorised head, create truly dynamic compositions. The whole arm fits into a single bag, it is light and portable, and thanks to its refined design you can set it up or take it apart very quickly.

Thanks to its telescopic design, you can adapt the camera arm to the required shot very quickly. By loosening a few screws you can slide the arm forward or backward and achieve perfect balance even in locations where there is not enough room for the operator. This design gives the arm the versatility needed for almost any shot, indoors and outdoors. The whole arm can easily be placed on fixed legs (e.g. T102RB), a wheeled dolly (e.g. DL-8RB) or a track dolly (e.g. TR-320), which makes it even more versatile.

The arm uses 1/4" and 3/8" threads, so you can very easily attach any other accessories to it (auxiliary adjustable arms, preview monitors, external recorders,...). The universal end of the arm is designed so that you can very easily attach weights or control handles to it.

At the opposite end of the arm there is a 75 mm/100 mm bowl that accepts a wide range of video heads as well as the motorised, remote-controlled Libec REMO30 head. The tilt of the whole end section is adjustable (a bubble level for levelling is included) and a screw lets you set how smoothly the whole arm moves. A sand counterweight for fine balancing of the arm is also included.

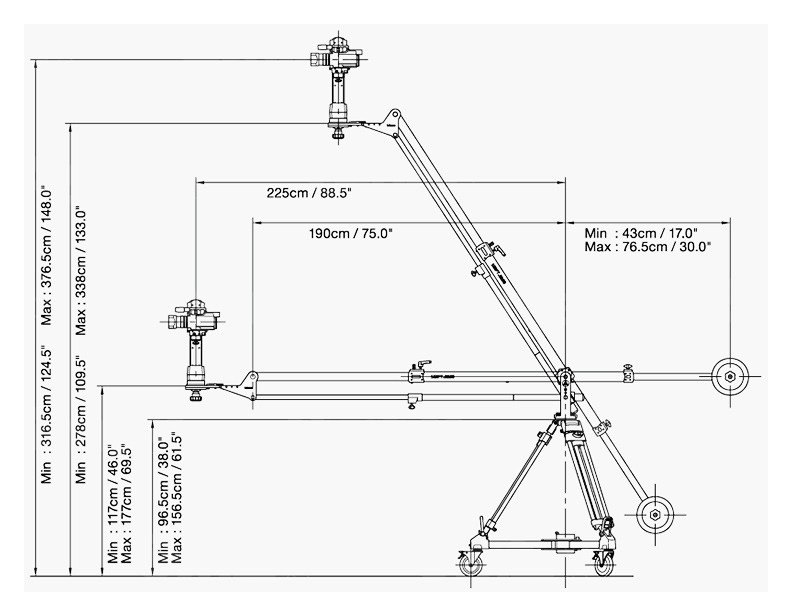

Jib dimensions. The drawing shows the reach and heights of the JB50 on a tripod with dolly, with the main arm short and fully extended.

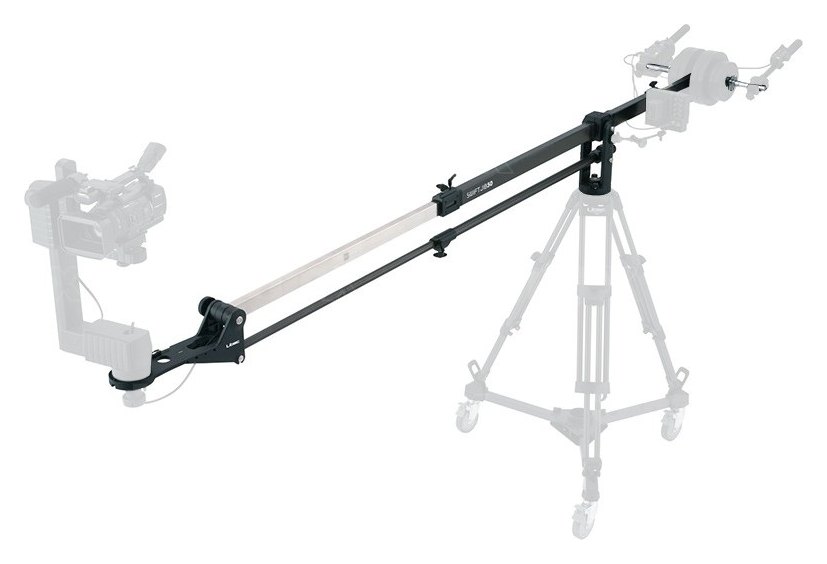

With a remote head. With the REMO30 motorised head on the end of the arm you can shoot from places a camera operator cannot reach.
