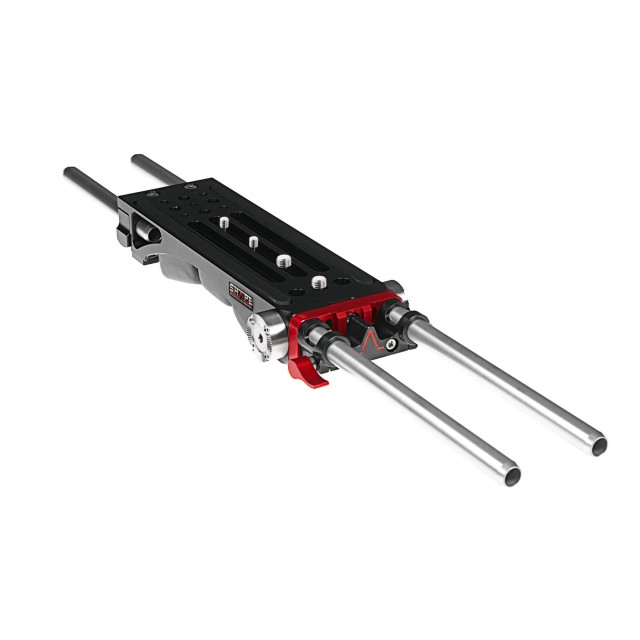

SHAPE 8000 V-LOCK QUICK RELEASE BASEPLATE

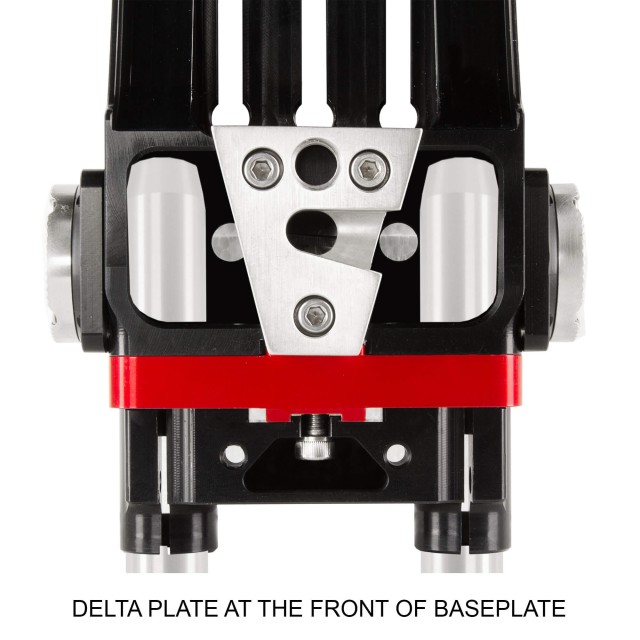

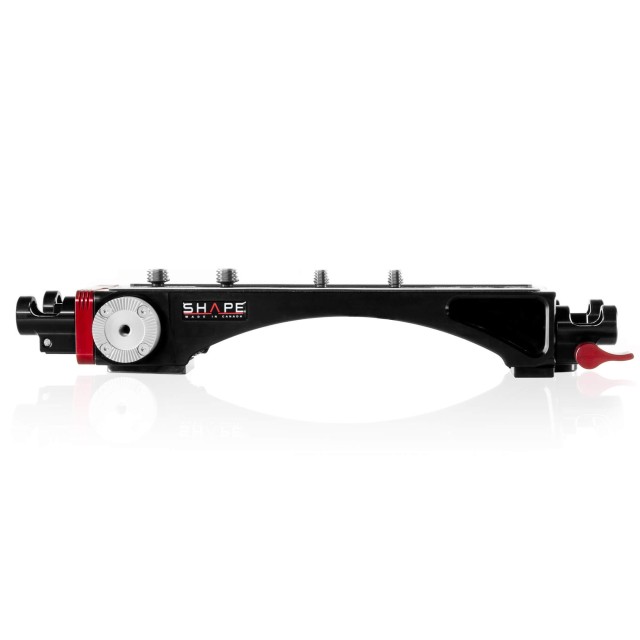

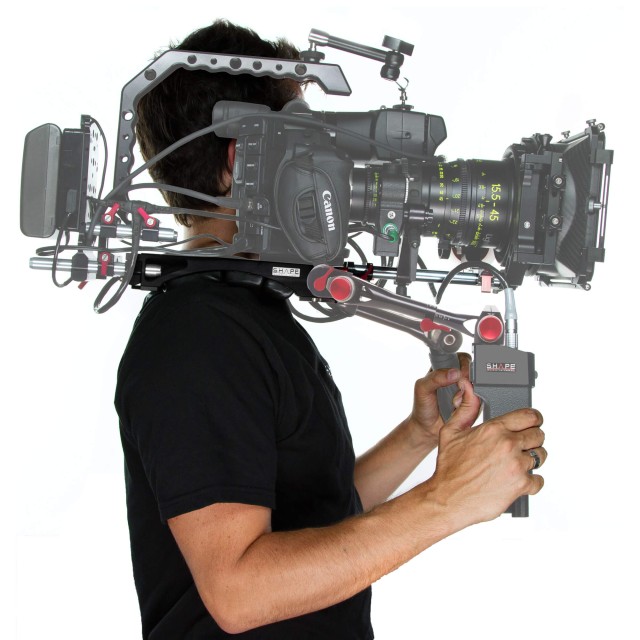

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

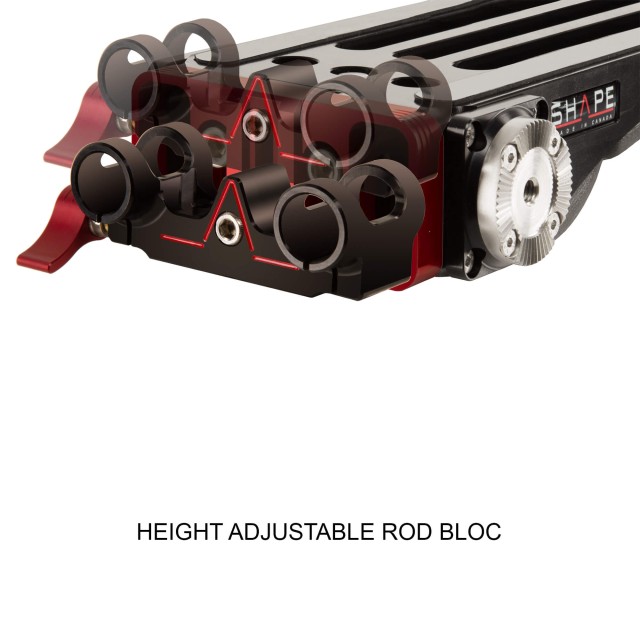

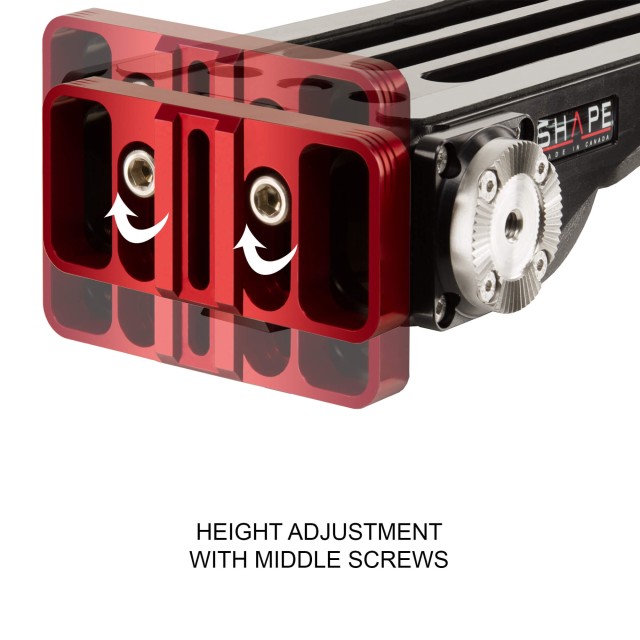

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8″ and 4″ 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.
