Product description SPECIFICATIONS

Product description

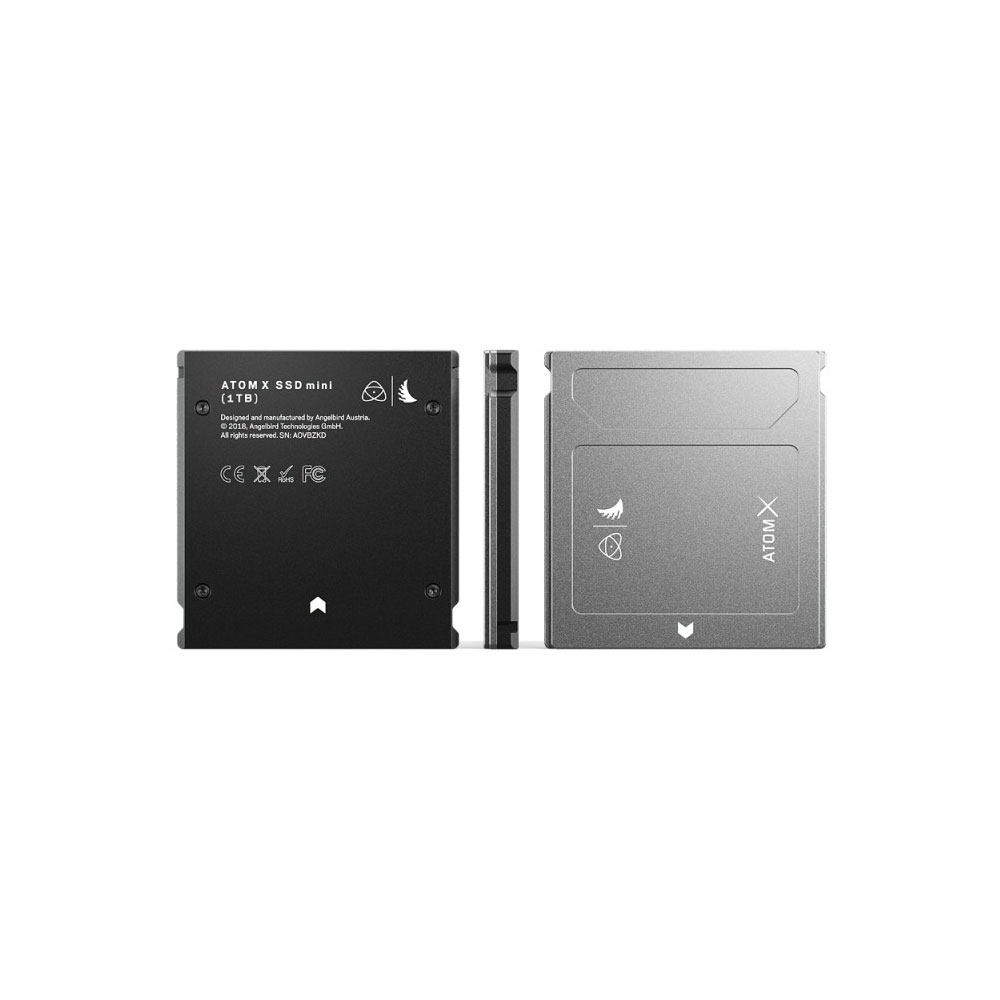

AtomX SSDmini 1TB capacity

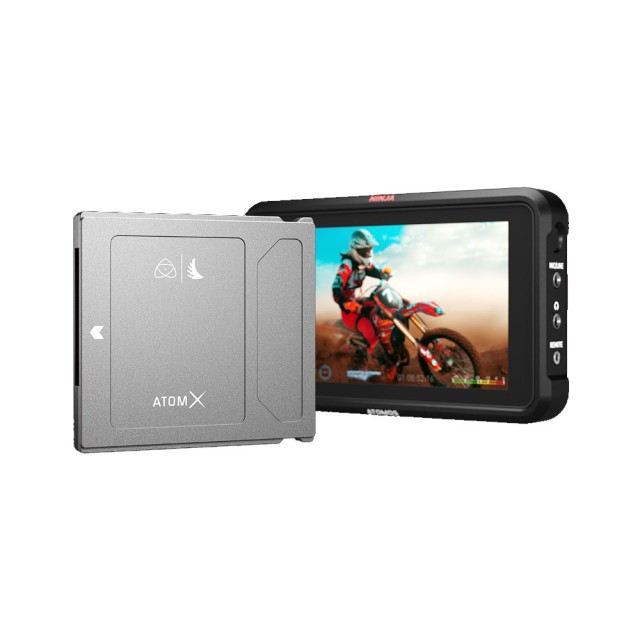

Angelbird’s AtomX SSDmini was custom made for the new Atomos Ninja monitor recorder and is perfectly compatible with all the other available recorders. The AtomX SSDmini is 20 percent smaller than the average SSD (to fit the small footprint of the Ninja), offers 1 TB of storage, has sustained read speeds of 540 MB/s and write speeds of 500 MB/s, captures CDNG up to 4K 30p, ProRes RAW HQ 5.7K up to 30p, plus 4K 60p and 2K 240p, sports a SATA III connector, and supports Stable Stream™ technology to never miss a frame.

Record ProResRAW directly with the Ninja V ProKit from the Sony FX6 and FX9 or other compatible SDI cameras.

Boom! Whether you are shooting in the desert or the snow-packed mountains, the AtomX SSDmini by Angelbird is your reliable partner. It’s tough, likes it rough, and is made to last. Oh, and before we forget, the AtomX SSDmini comes with great endurance to accompany you on your creative journey and to ensure constant performance. We sure hope so, since the AtomX SSDmini by Angelbird is made to travel. Its rock-solid build makes it shock, temperature, X-Ray and magnetic proof, so wherever you decide to bike, hike, climb or fly, our SSDmini will be a perfect travel companion.

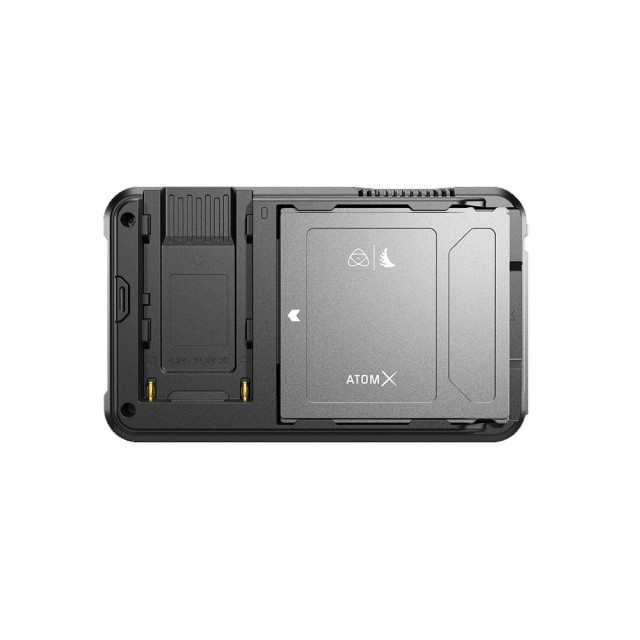

We have made sure that the Atomos Master Caddy guide rail system guarantees perfect docking to the SATA port. And yes, you can even use the new AtomX SSDmini by Angelbird with the entire Atomos range of Ninja and Shogun devices, plus—with the use of an adapter handle—even the Sumo19, Sumo19M and Shogun Studio. Now that comes in handy.

SPECIFICATIONS

General

  • Capacity: 1TB
  • Weight: 0,09kg
  • Dimensions: 8 x 7,5 x 0,9cm
  • Material: Aluminum
  • Warranty: 3 year limited warranty

Performance

  • Sequential Read Speed: 560 MB/s
  • Sustained Read Speed: 540 MB/s
  • Sequential Write Speed: 520 MB/s
  • Sustained Write Speed: 500 MB/s
  • Access Time: ~ 65 µs | 40 µs

Reliability

  • MTBF: 2,4Mio hours
  • Data Reliability: Built in EDC / ECC function
  • Data retention: 10 years at 25°

Endurance:
                500GB: up to 1500TBW
                1TB: up to 3000 TBW
                2TB: up to 6000 TBW

  • Certifications: RoHS, CE and FCC compliant, REACH

Electrical

  • DC Input Voltage: 5 V ± 10 %
  • Power Usage (IDLE/MAX):
  • 500GB: 0.35W/3.0W
  • 1TB: 0.35W/3.5W
  • 2TB: 0.3W/3.5W

Technical

  • Interface: SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported, SATA 3.0 compliant
  • Over Provisioning: ~ 9 %

Enviromental:

  • Shock Resistance (Operating): 1000G /0.5ms
  • Vibration Resistance (Operating): 2.17GRMS
  • Operating Temperature: -20 °C | 70 °C
  • Storage Temperature: –40 °C | 85 °C
  • Operation Humidity: 5 % to 95 % non-condensing

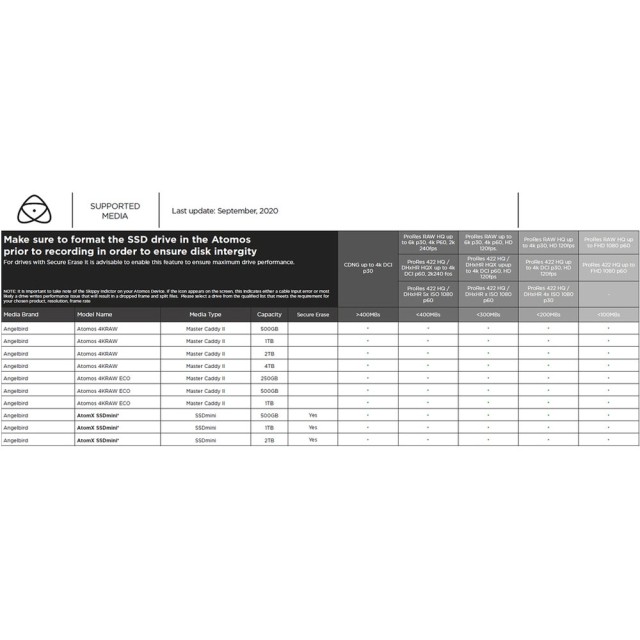

  • Compatibility List: NINJA | NINJA ULTRA | NINJA V | NINJA FLAME | NINJA INFERNO | SUMO 19* | SUMO 19M* | SHOGUN FLAME | SHOGUN INFERNO | SHOGUN STUDIO*

*SUMO 19 / 19M & SHOGUN STUDIO require to use the Atomos SSDmini adapter handle.

Parameters

Parameters

Manufacturer: Angelbird
Category: SSD

Main parameters

Card capacity1000GB
Write Speed500MB/s
Read Speed540MB/s
