Aputure INFINIBAR PB12 4-Light Kit (EU Version)

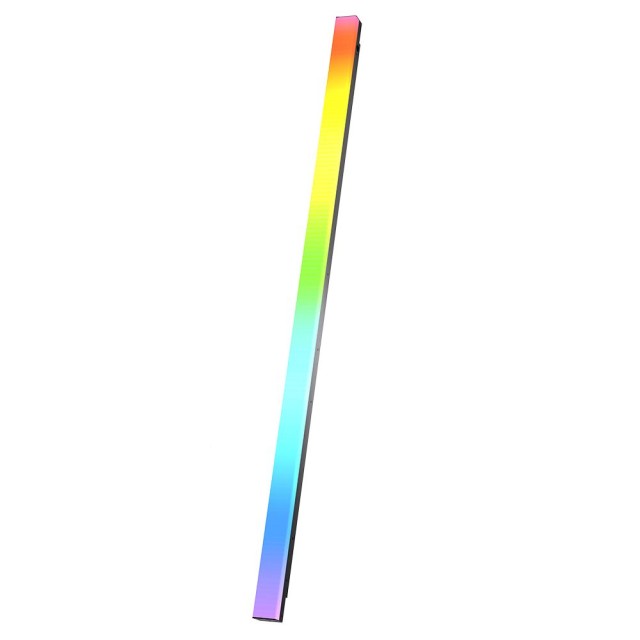

The INFINIBAR PB12 4-Light Kit includes 4 RGBWW full-color LED pixel bars with a temperature range of 2,000 to 10,000K. Each is 120 cm long and contains 96 individual RGB pixel light zones.

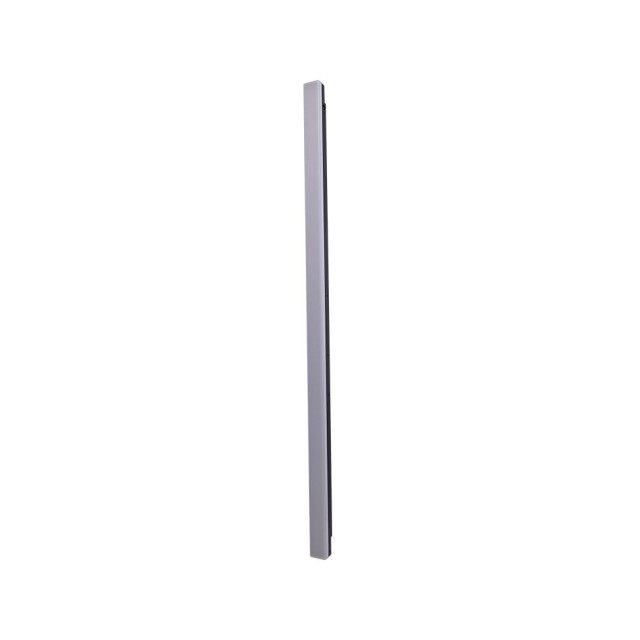

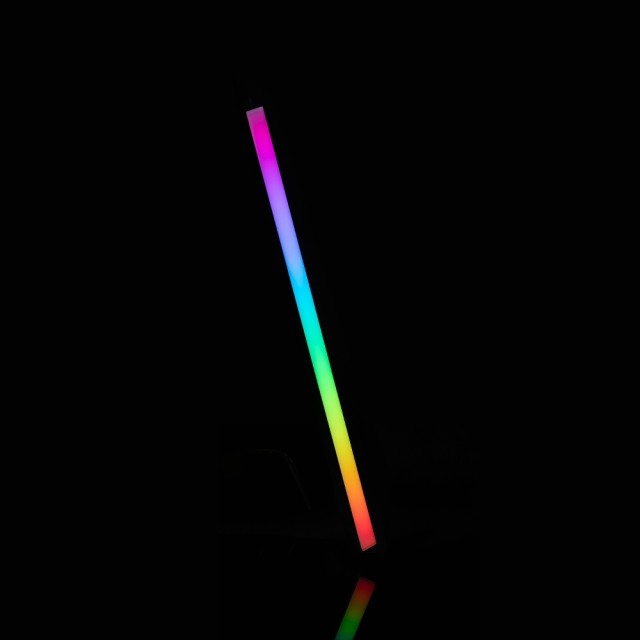

The INFINIBAR Pixel Bar is Aputure's first RGBWW full-color LED pixel bar with a color temperature range of 2,000 to 10,000K. It is the professional choice for videographers and lighting designers who need lights with precise yet flexible mounting options. Designed as a key light, the INFINIBAR light bar can be directly integrated into scenes or used with a mounting system thanks to its lightweight and robust aluminium body.

The INFINIBAR PB12 4-Light Kit includes 4 of these pixel bars. Their features include the ability to connect several INFINIBARs of different lengths using different types of connectors (the INFINIBAR 4-Light Kit includes 4 straight connectors, other types are available separately) and to create creative shapes and effects. The 96 RGB pixel light zones provide smooth pixel effects. The 4-light Kit not only expands INFINIBAR's capabilities by four times the amount of light, but also includes additional power cords, adapters and light grids housed in a rugged hard case.

Power and flexibility
the 4-light Kit not only allows each light to be charged separately. Thanks to a special 330W power adapter, the batteries of all four lights can be charged simultaneously. Using the Power-Sharing connectors, multiple INFINIBARs can be connected and operated with one power supply. Alternatively, each light's internal battery provides approximately 80 minutes of full power, providing greater flexibility.

With advanced wireless solutions, the 96 pixel INFINIBAR PB12 light zones can be wirelessly grouped and controlled via Sidus Link or LumenRadio CRMX. In addition, DMX can be connected via USB-C to an Aputure DMX adapter. In addition to 9 system effects and 7 pixel effects, the PB12 allows you to store up to 20 custom effects in Sidus Link for quick access to different lighting modes.

Specially developed RGBWW chipset
The INFINIBAR PB12's specially developed RGBWW chipset produces a wide CCT color range from 2,000K to 10,000K with full green-magenta adjustment. INFINIBAR provides reproduction of more than 90% of colors within the Rec.2020 color space as well as accurate skin tones. It achieves CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

Technical Specifications:

• CCT: 2 000 K - 10 000 K
• CRI: 96+, TLCI: 98+, CQS: 96, SSI (D56): 74, SSI (Tungsten): 85
• TM-30 RF (diameter): 94, TM-30 RG (diameter): 103
• Color chipset: RGBWW
• Beam angle (at 50% power): 120°
• Luminance: 2077 lm
• Max. power: 27 W
• Max. light consumption: 36.5 W at 24 V, 1.8 A
• Power consumption: 40 W
• Power supply: 100 V - 240 V 50/60 Hz, 1.5 A
• Battery capacity: 7.4 V, 8000 mAh, 59.2 Wh
• Battery life: approximately 80 minutes at maximum power
• Charging time: approx. 150 min (24 V / 2.67 A)
• Pixel Mapping: 96 pixels
• Operating temperature: -10 °C - 45 °C
• Control methods: Sidus Link App, DMX/RDM via USB-C, LumenRadio CRMX
• Range: Bluetooth 80 m, LumenRadio 100 m
• IP protection: IP 20
• Screen type: OLED
• Firmware upgrade option: Sidus Link, USB-C
• Passive cooling

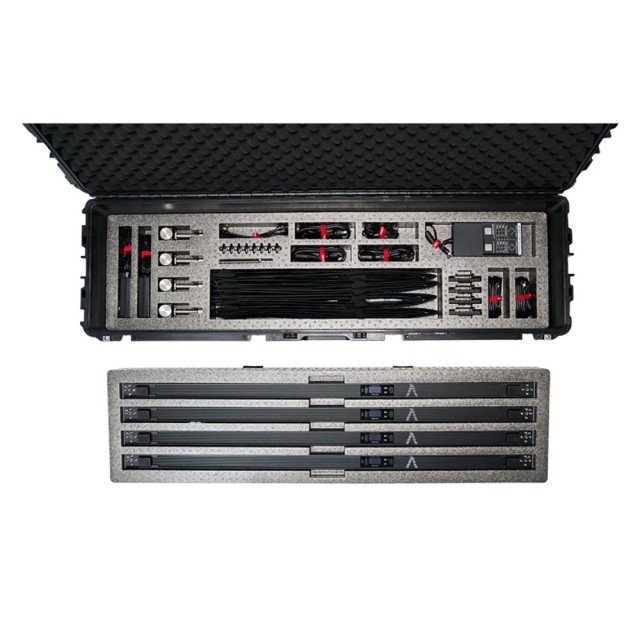

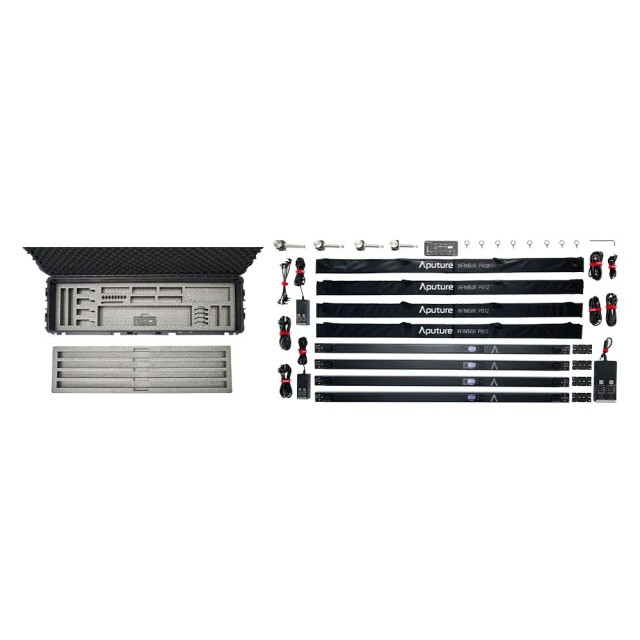

Package Contents:

• 4x INFINIBAR PB12
• 1x 330W DC power adapter
• 2x 48W DC power adapter (3m)
• 3x AC power cord with lock (1.5m)
• 4x 5.5mm DC Barrel male-to-male power cable (20cm)
• 1x 5.5mm DC Barrel 4-way splitter cable

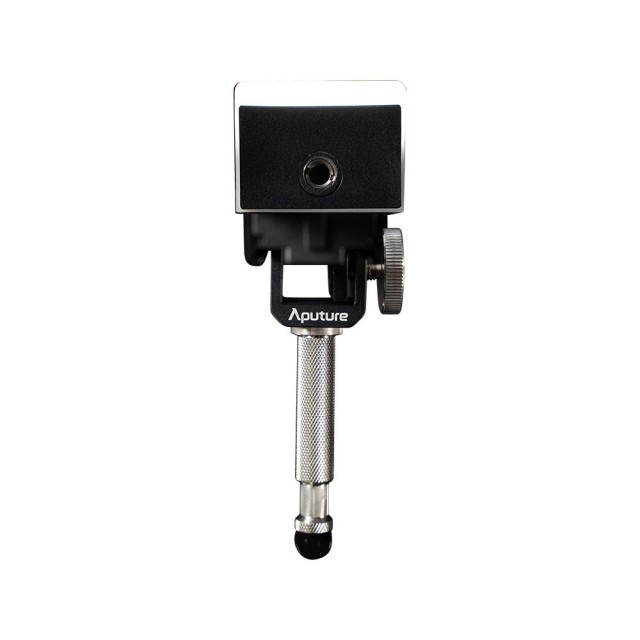

• 4x INFINIBAR clamp on baby pin adapter

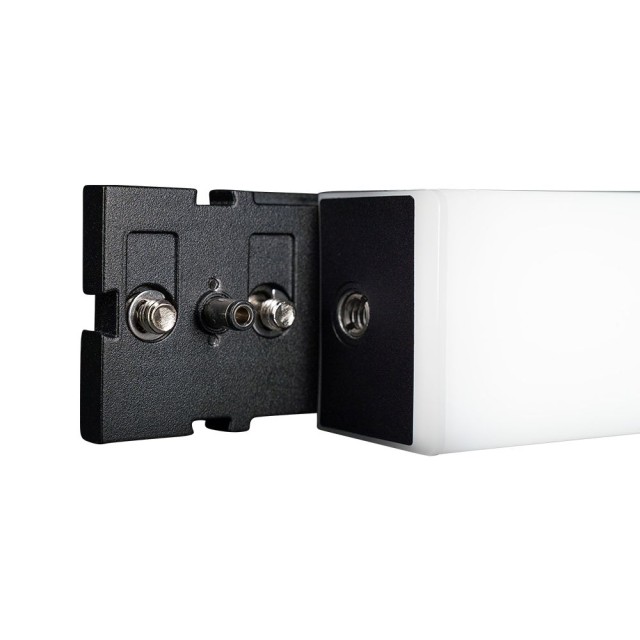

• 4x INFINIBAR straight connector
• 8x ¼-20" eye bolt
• 1x 5mm Allen wrench
• 4x INFINIBAR PB12 45º light grid
• 1x hard case
