Aputure INFINIBAR PB12 (EU Version)

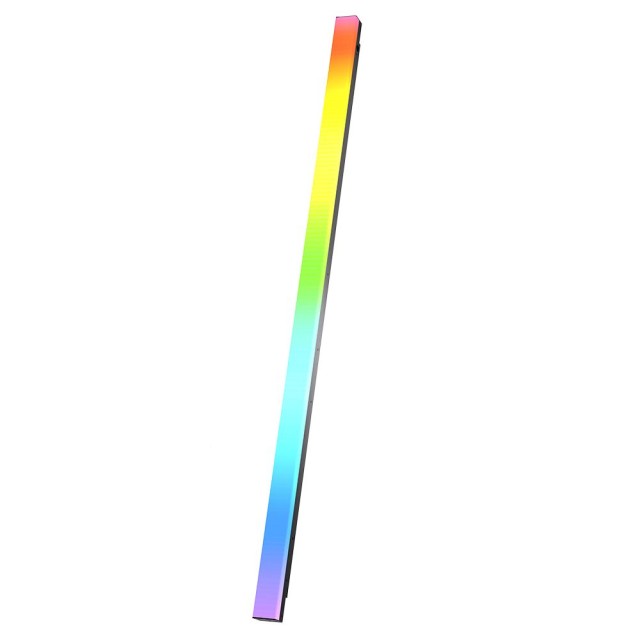

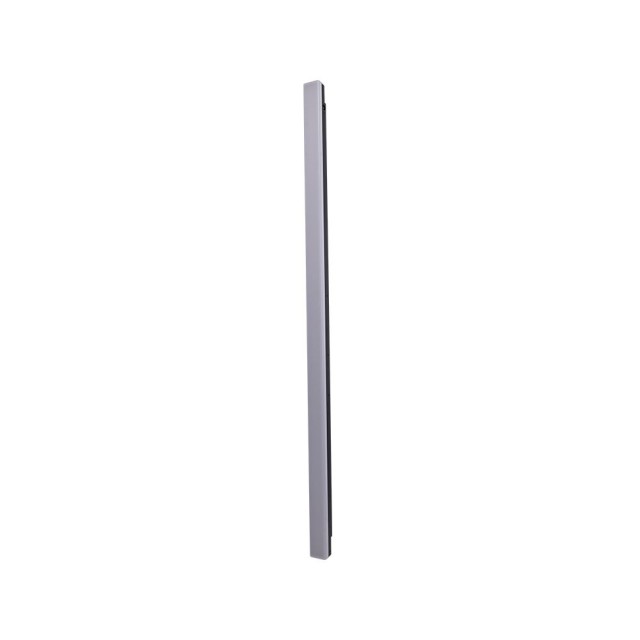

INFINIBAR is Aputure's first RGBWW full-color LED pixel bar with a color temperature range of 2,000 to 10,000K. It is the professional choice for videographers and lighting designers who need lights with precise yet flexible mounting options. Each bar is 120 cm long and contains 96 individual RGB pixel light zones.

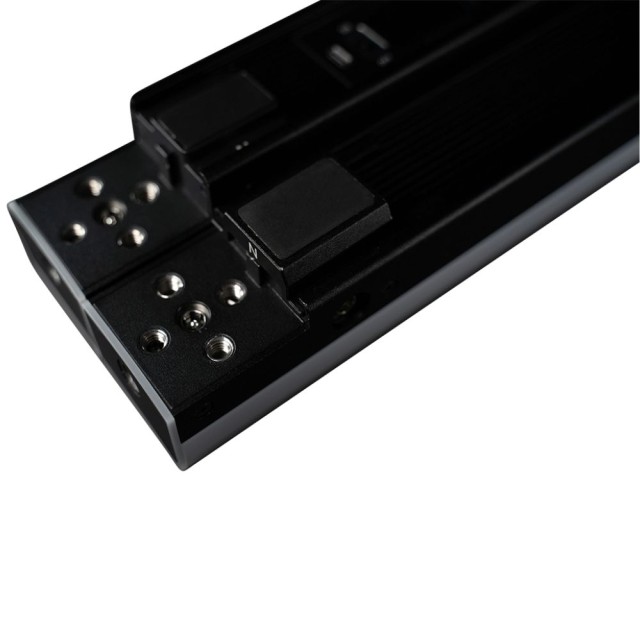

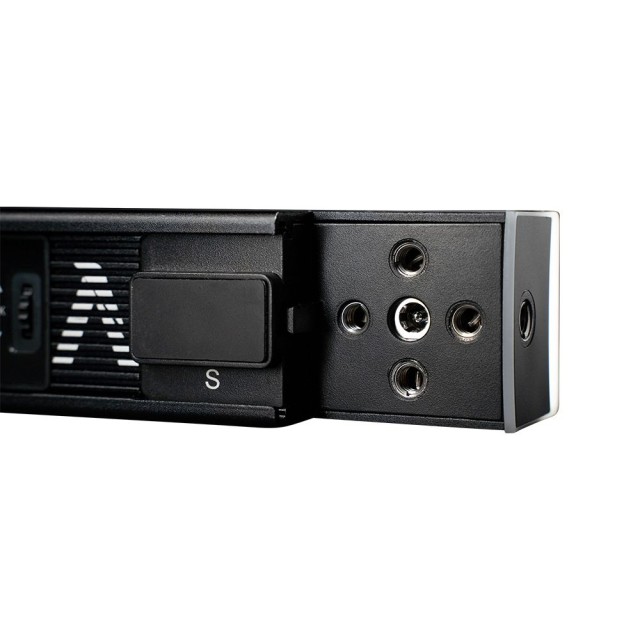

The INFINIBAR light bar has been designed as a key light and can be directly integrated into scenes or used with a mounting system thanks to its lightweight and robust aluminium body. Important features include the ability to connect several INFINIBARs of different lengths using different types of connectors (one straight connector is included with the INFINIBAR itself, other types are available separately) and to create creative shapes and effects. The gap between these splices is optically almost zero thanks to the integrated smooth Blending Design. 96 RGB pixel light zones provide smooth pixel effects.

Power and flexibility
Multiple INFINIBARs can be interconnected using power-sharing connectors and operated with a single power supply. Alternatively, each light's internal battery provides approximately 80 minutes of full power, providing greater flexibility.

With advanced wireless solutions, the 96 pixel INFINIBAR PB12 light zones can be wirelessly grouped and controlled via Sidus Link or LumenRadio CRMX. In addition, DMX can be connected via USB-C to an Aputure DMX adapter. In addition to 9 system effects and 7 pixel effects, the PB12 allows you to store up to 20 custom effects in Sidus Link for quick access to different lighting modes.

Specially developed RGBWW chipset
The INFINIBAR PB12's specially developed RGBWW chipset produces a wide CCT color range from 2,000K to 10,000K with full green-magenta adjustment. INFINIBAR provides reproduction of more than 90% of colors within the Rec.2020 color space as well as accurate skin tones. It achieves CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

Features:

• 27 W RGBWW Full Color LED Pixel Bar with 120 cm length

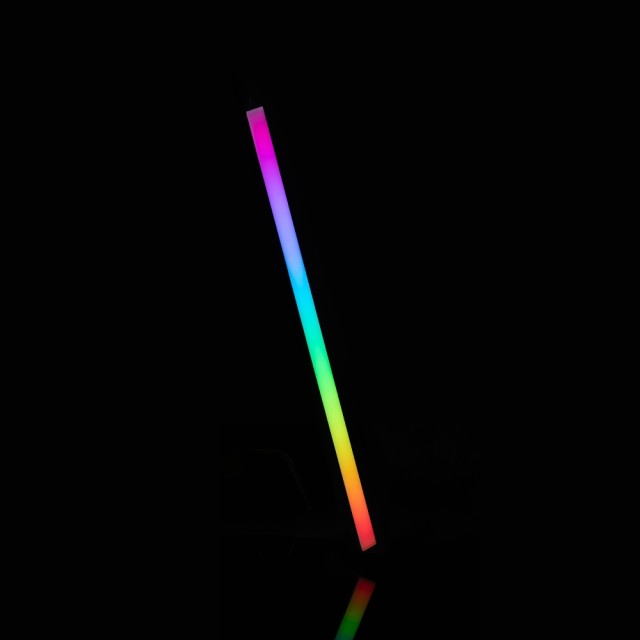

• 96 individual pixel light zones
• Smooth Blending Design
• Integrated battery (59.2 Wh) with approx. 80 minutes of battery life
• 100% brightness control in 0.1% increments
• Fully adjustable CCT from 2,000K - 10,000K + G/M adjustment
• More than 90% of colours within Rec.2020 colour space
• Multiple control options: Sidus Link App, DMX/RDM via USB-C (available separately), LumenRadio CRMX
• 9 built-in system FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
• 7 built-in pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
• Supports SidusPro FX: including Manual FX, System FX, Picker FX, Magic Program and Music FX
• Stores up to 10 User FX and 10 Music FX
• Frequency selection for flicker reduction
• Optional accessories: softbox; 45º extension, light grid

Technical Specifications:

• CCT: 2,000K - 10,000K
• CRI: 96+, TLCI: 98+, CQS: 96, SSI (D56): 74, SSI (Tungsten): 85
• TM-30 RF (diameter): 94, TM-30 RG (diameter): 103
• Color chipset: RGBWW
• Beam angle (at 50% power): 120°
• Luminance: 2077 lm
• Max. power: 27 W
• Max. light consumption: 36.5 W at 24 V, 1.8 A
• Power consumption: 40 W
• Power supply: 100 V - 240 V 50/60 Hz, 1.5 A
• Battery capacity: 7.4 V, 8000 mAh, 59.2 Wh
• Battery life: approximately 80 minutes at maximum power
• Charging time: approx. 150 min (24 V / 2.67 A)
• Pixel Mapping: 96 pixels
• Operating temperature: -10 °C - 45 °C
• Control methods: Sidus Link App, DMX/RDM via USB-C, LumenRadio CRMX
• Range: Bluetooth 80 m, LumenRadio 100 m
• IP protection: IP 20
• Screen type: OLED
• Firmware upgrade option: Sidus Link, USB-C
• Passive cooling
• Dimensions
  • Holder: approx. 120.4 x 4.5 x 4.3 cm
  • Packaging: approx. 127.7 x 13 x 12.5 cm
  • AC power adapter: approx. 12 x 5.3 x 3.2 cm
• Total weight: approx. 2.85 kg

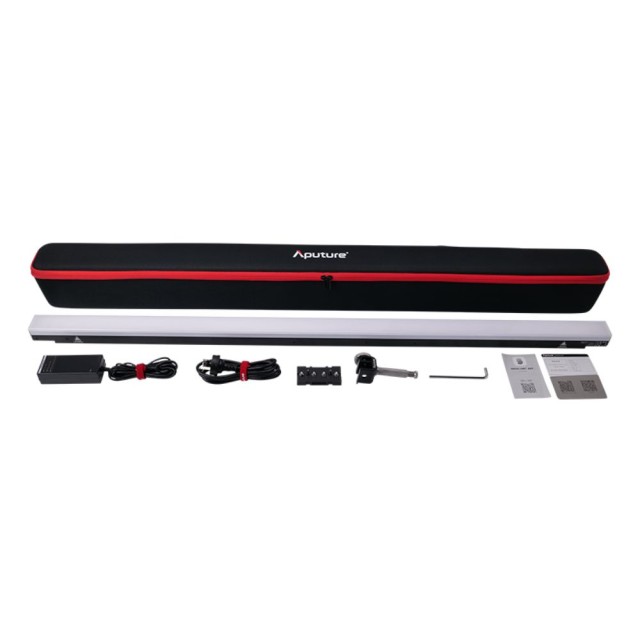

Package contents:

• 1x INFINIBAR PB12

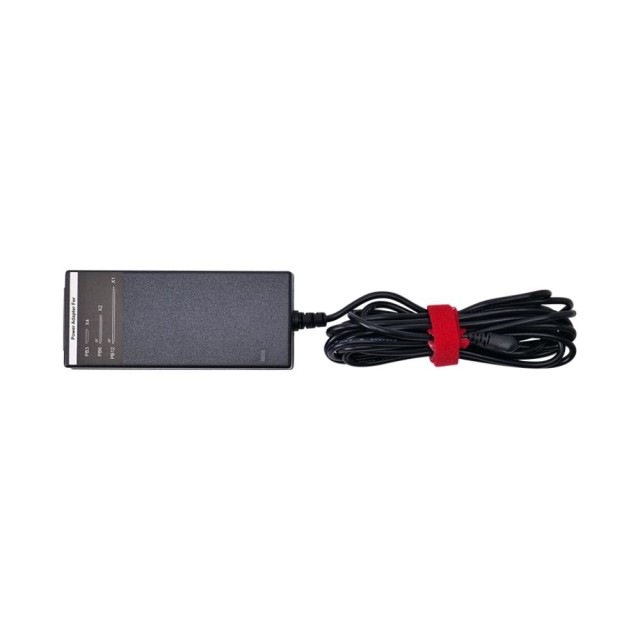

• 1x 48W DC power adapter (3 m)

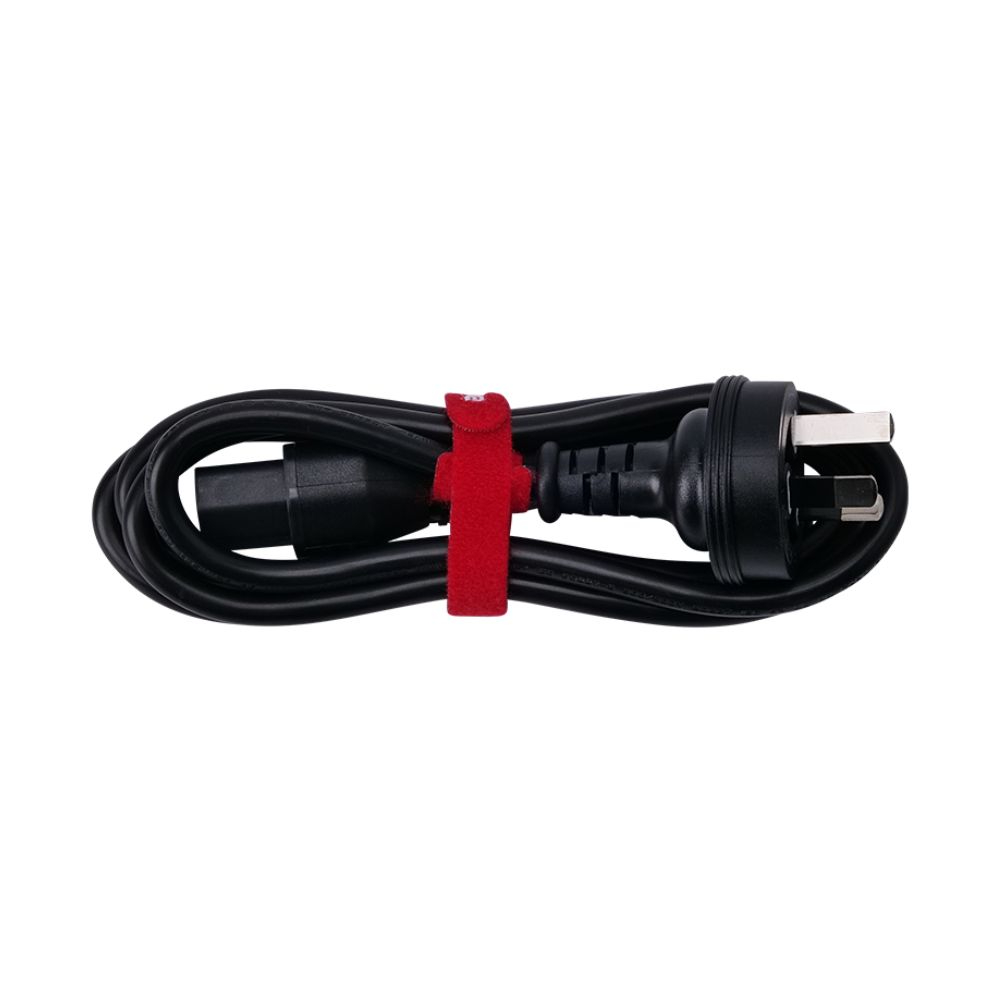

• 1x AC power cord with lock (1.5 m)
• 2x Magnetic spacer

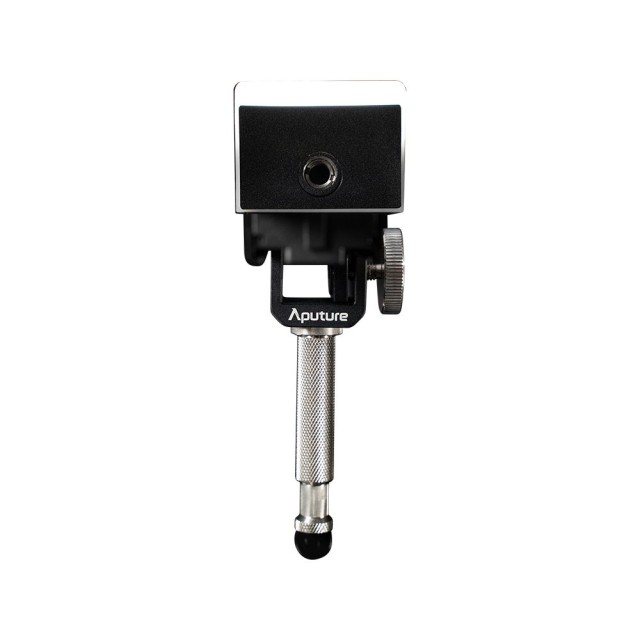

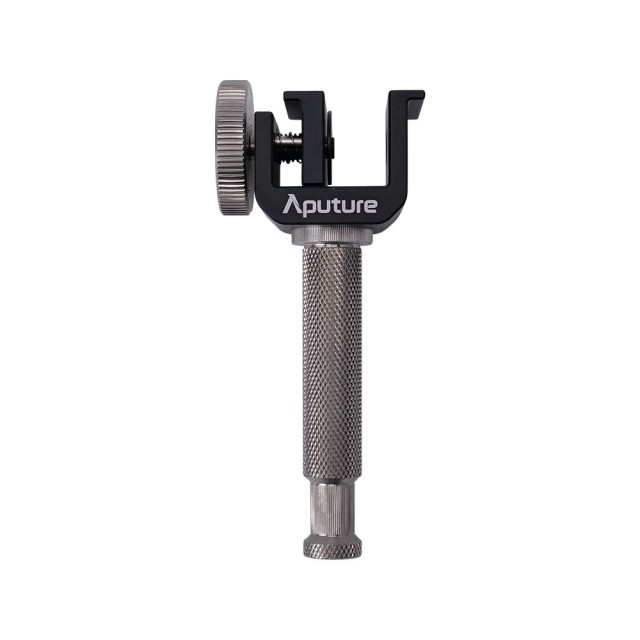

• 1x INFINIBAR Baby Pin Adapter Clamp

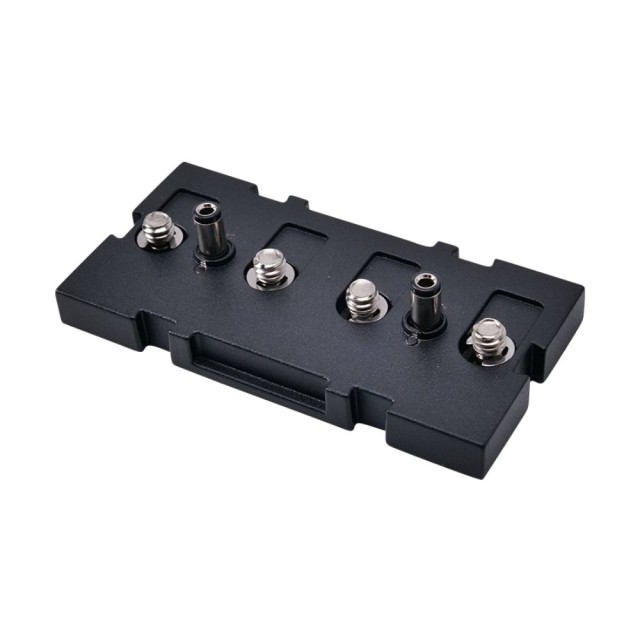

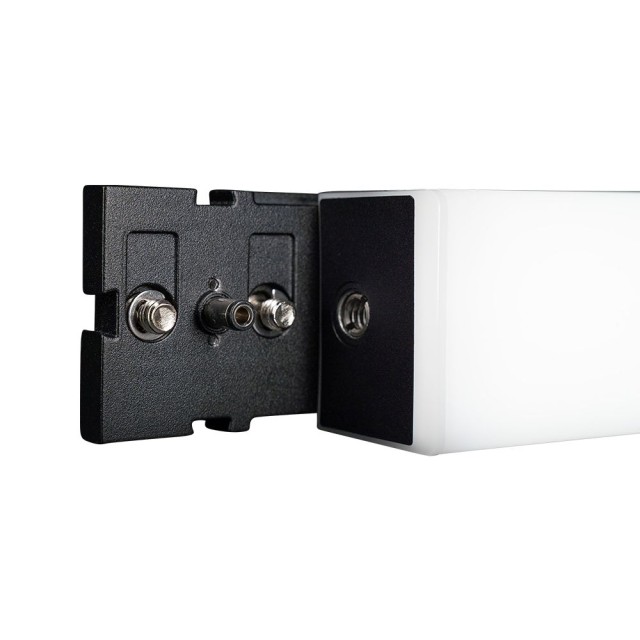

• 1x INFINIBAR straight connector

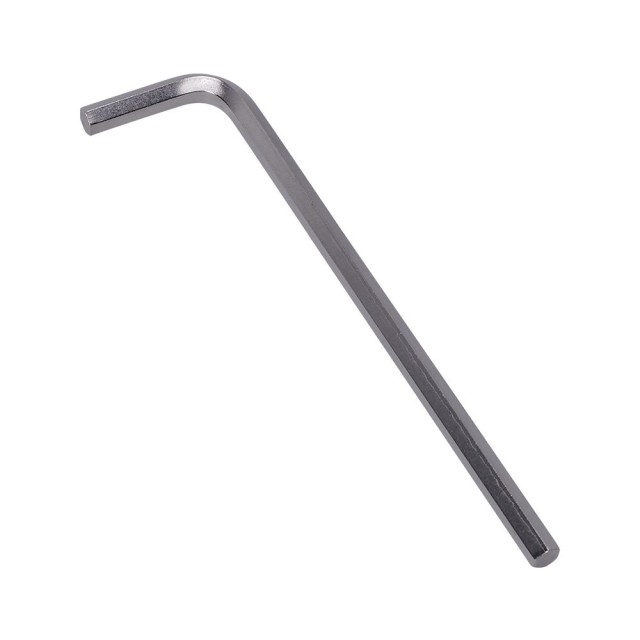

• 1x 5mm Allen key

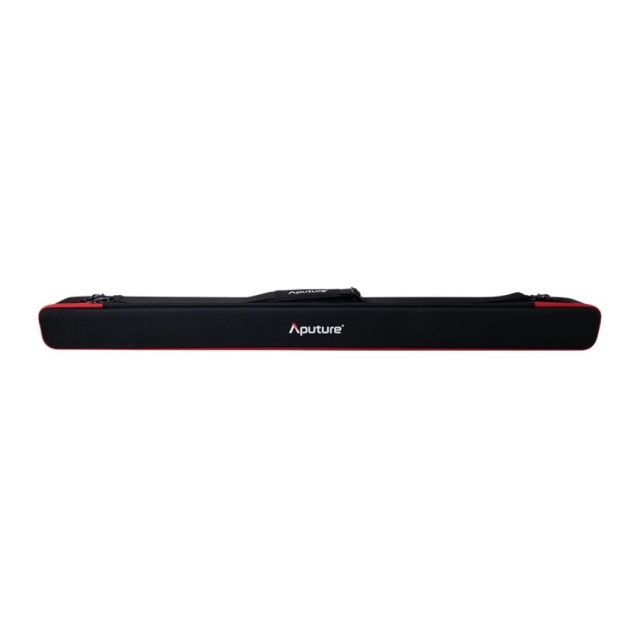

• 1x Carrying bag
