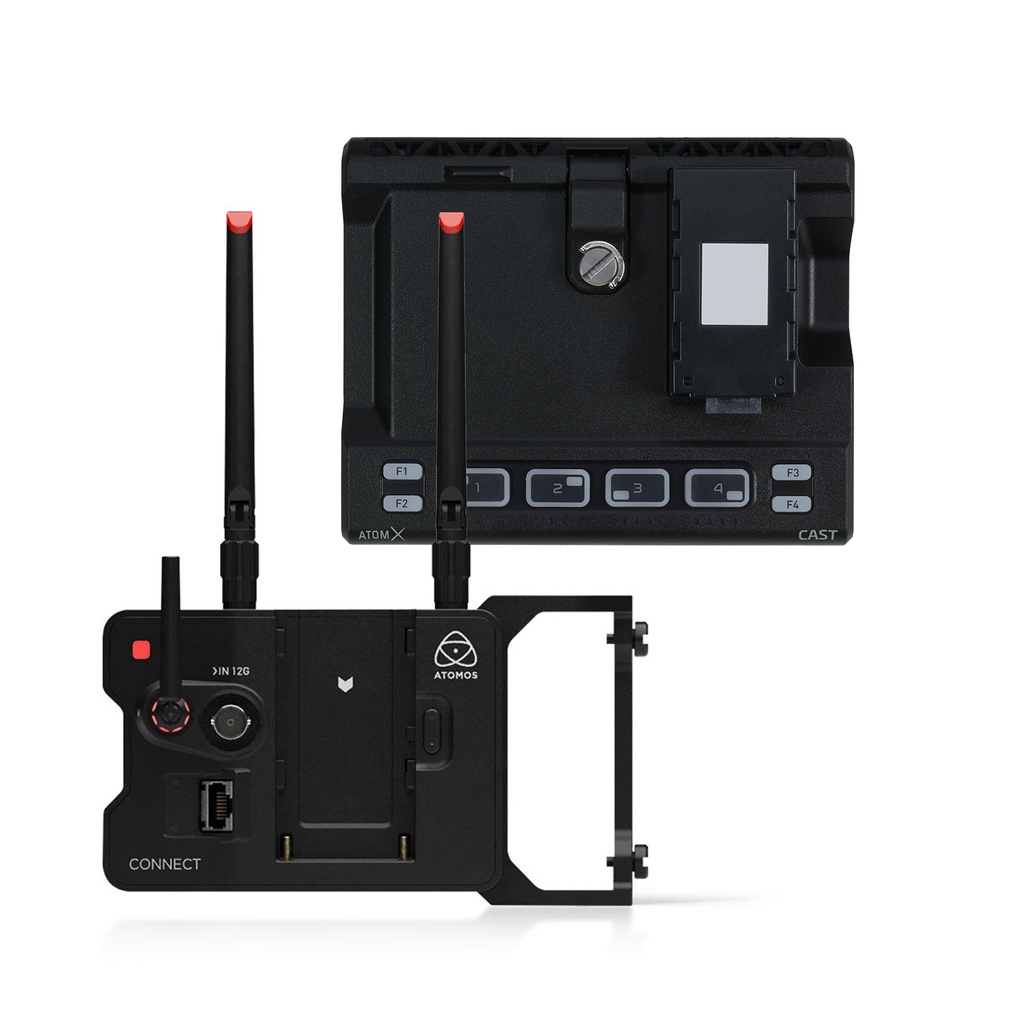

ATOMOS Ninja Mega Bundle

Obsah balenia:

• ATOMOS CONNECT
• AtomX SSDmini Handle
• MasterCaddy III with screw
• Wifi Antenna with Black cap
• RF antenna
• Antenna storage Pouch
• 3.5mm audio jack to jack cable
• Antenna coloured cap
• Antenna mount covers
• 1 x AtomX Cast
• 1 x USB-C Cable
• 1 x AtomX SSD mini handle

Physical Specifications:

• Dimensions: 129 x 49 x 160 (AtomX Cast)
• Weight: 485g / 1.06lbs
• Mount points: Anti rotational 1/4" 20 / 3/8 on base of unit
• Construction & Control:
• Body: ABS plastic with locking arm for Ninja V/V+
• Cooling: Passive
• Tally light: Record tally Via Ninja V/V+, Program and Preview illumantaion on CAST buttons
• Control Buttons: 4 x Switching, 4 x Function
• AtomXpansion slot: To connect to Ninja V/V+ (no moduell pass through)
• Power:
• Input voltage: 6.2V to 16.8V
• DC in connector:Lock DC connector from Ninja V/V+ DC power supply
• Battery: Via optional Atomos DC to DTAP cable
• Display: Via Ninja V/V+
• Touchscreen: Via Ninja V/V+ SuperAtom IPS panel (capacitive touch)
• Size: 5.2"
• Resolution: 1920 x 1080
• Brightness (cdm2/Nits): 1000
• Aspect ratio: 16:09
• Color Gamut: Rec.709
• Video Input:
• HDMI: 4 x HDMI 1.4b up to 1080p60
• Bit Depth: 10bit
• Video Chroma Subsampling: 4 2 2
• HDCP copy protection: No
• Video Output:
• HDMI CAST: HDMI 1.4b up to 1080p60 - Program ONLY
• HDMI Loop out: Ninja V/V+ -Multi functions out- Program, Preview, Multiview
• Multiview: Yes, via Ninja V/V+
• OS overlays: Optional via Ninja V/V+ HDMI out
• Video Chroma Subsampling: 4 2 2
• Bit Depth: 10bit
• Web Streaming:
• USB UVC USB-C: up to 1080p30
• Audio In/Out:
• Audio Quality: 24/48kHz
• Audio Codec: PCM
• HDMI: 2ch 24Bit, input dependent per input
• Analogue Audio In: 3.5mm via Ninja V/V+
• Analogue Audio Out: 3.5mm via Ninja V/V+
• Headphone Out: 3.5mm via Ninja V/V+
• Timecode / Sync:
• Embedded HDMI
• Resolution & Frame Rates
• Supported base resolution & FPS
• FHD 1920 x 1080 Progressive: 23.98/24/25/29.9/30/50/59.94/60
• FHD 1920 x 1080 PsF: No
• FHD 1920 x 1080 Interlaced: 50/59.94/60
• 1280 x 720p: No
• SD PAL/NTSC: No
• Program Recording CODEC: via Ninja V/V+
• Apple ProRes: LT, 422, 422HQ
• Avid DNxHD: DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)
• Playback via Ninja V/V+
• Apple ProRes: Yes, with Linear PCM audio
• Avid DNx: Yes, with Linear PCM audio
• Recording functions:
• Switched Program Record: Yes via Ninja V/V+
• Multi Input / Switching:
• Multiple HDMI input: Up to 4 x HDMI up to 1080p60
• Multiview Display: Quad input display on Ninja V/V+ Display
• Multiview Output: Via Ninja V/V+ HDMI out - Set to Program, Preview or Multiview
• Picture in Picture (PIP): Any input over Any input, 4 postions in small or large size PIP
• Graphic overlays: Select layout for Stored Graphics in Ninja V/V+ and save configured scene presets
• Media pool storage: Upload and Store Graphics in Ninja V/V+
• Input transitions: Fade from/to Black / White
• Input Processing: Interlaced to Progressive
• Input Frame rate processing: Yes
• Supported media:
• Master Caddy II: Yes
• SSDmini: Yes, requires the included AtomX SSD mini handle adapter
• File System: ExFat
• Onboard Signal Processing:
• Pulldown removal: Interlaced to Progressive on Input and USB stream
• Optional extras: USB Dock
• Warranty: Standard 1 Year
