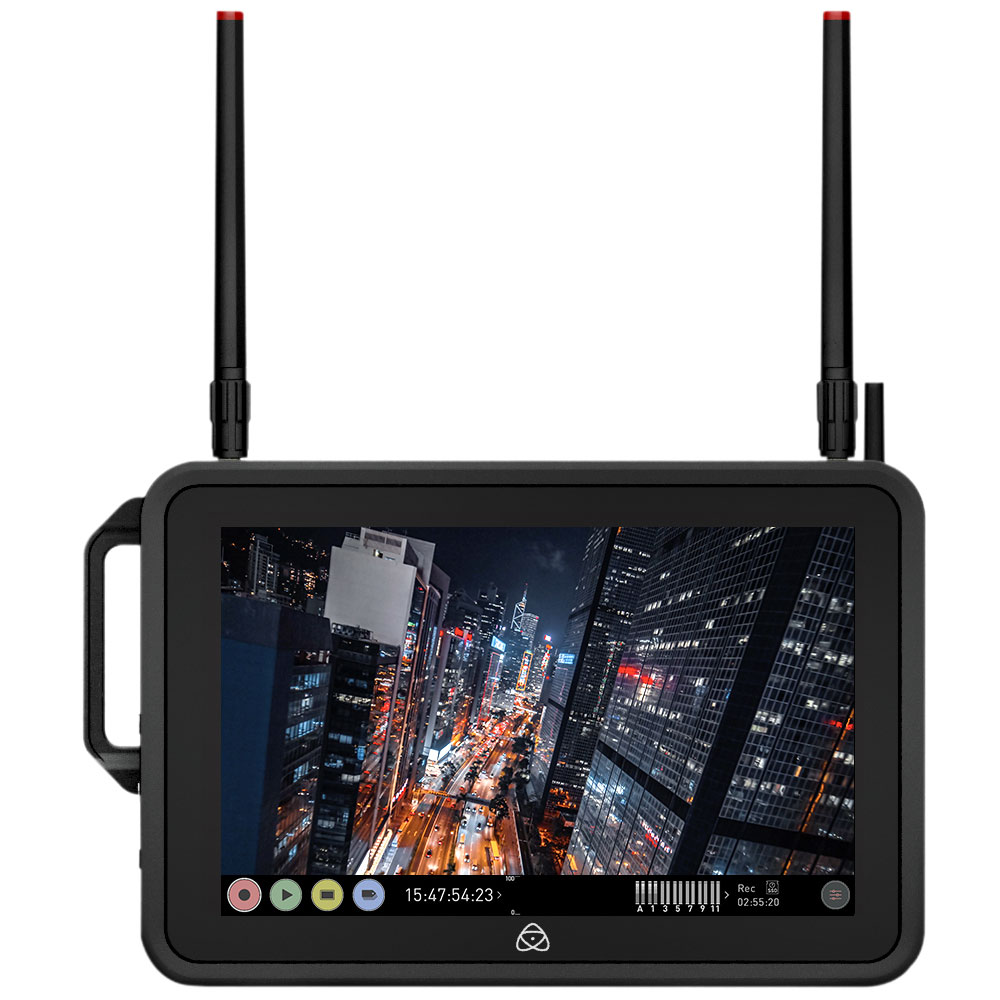

ATOMOS Shogun Connect

SHOGUN CONNECT - 7'' HDR monitor, RAW Recorder with cloud integration

Key Features

• Our most powerful device for monitoring and recording
• Compatible with a wide range of digital cinema, mirrorless, and DSLR cameras
• Professional video connectivity including 12G-SDI, HDMI 2.0
• Monitor up to 8K HDR sources and use AtomOS tools to perfect every shot
• Record in a range of professional formats including Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265)
• Includes full support for Atomos Cloud Studio

Featuring a super bright 7-inch 2000nit screen and multiple recording options, Shogun CONNECT provides a premium experience for HDR monitoring and RAW recording. In addition, it includes loop-through and cross-conversion functionality via its 12G SDI-IN and OUT interface. Shogun CONNECT supports SDI RAW inputs up to 6K at 30fps. It can simultaneously loop out standard YCC video via SDI and HDMI to multiple non-RAW compatible devices.

As you would expect from an Atomos device, Shogun CONNECT combines high-quality monitoring and many different industry-standard recording formats. It also transforms digital cinema, mirrorless, and DSLR cameras into devices that support a range of advanced cloud-based workflows.

Redesigned Touchscreen
The new 7-inch, daylight-viewable, highly-responsive SuperAtom IPS touchscreen is perfect for outdoor use, even in direct sunlight. All the controls are there to perform the adjustments necessary to allow Shogun CONNECT to function equally well in darker environments.

Compact and Versatile
From individuals to large-scale cinema productions, Shogun CONNECT has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun CONNECT to remain in place at all times.

A Complete Monitoring Toolbox
Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false color, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images for exposure, framing or focus.

Powered for the Future
Shogun CONNECT is built around the latest ATOMOS silicon, the AtomIC3. The processor provides all the performance to handle the demands of the very latest cameras. It can manage higher frame rates and increased resolutions. Currently the device supports the RAW output of various cameras up to 4K at 120fps via HDMI or SDI, with 8K ProRes RAW recording of up to 30fps exclusive to certain cameras.

Wireless Remote Control
The AtomRemote app for iOS and macOS offers an array of external controls for Shogun CONNECT*. The app enables you to perform a range of configuration tasks and operations up to 15 meters away from the device via Bluetooth LE. Input options include the ability to define camera connections, select Gamma/EOTF, and adjust Gamut settings. For monitoring, AtomRemote can be used to control playback, choose monitoring modes, apply custom 3D LUTs, or view image analysis tools including exposure and focus. Output controls include options for 4K to HD, LUT preview, and HDR output.

Wireless Timecode
Atomos AirGlu™ adds wireless timecode, sync, and control technology to Shogun CONNECT. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time consuming post-production workflows to produce perfectly synchronized, multi-camera video.

Supported Resolutions & Frame Rates
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun CONNECT can record more color information and immediately add value to your production with your existing camera rig. Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun CONNECT is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision.
Shogun CONNECT also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun CONNECT the ideal choice for big budget filmmakers around the world.

Professional Codec Support
With flexible options for industry standard formats and RAW codecs, Shogun CONNECT records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload. Shogun CONNECT is designed to be versatile and meet the requirements of your workflow. Atomos understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.
