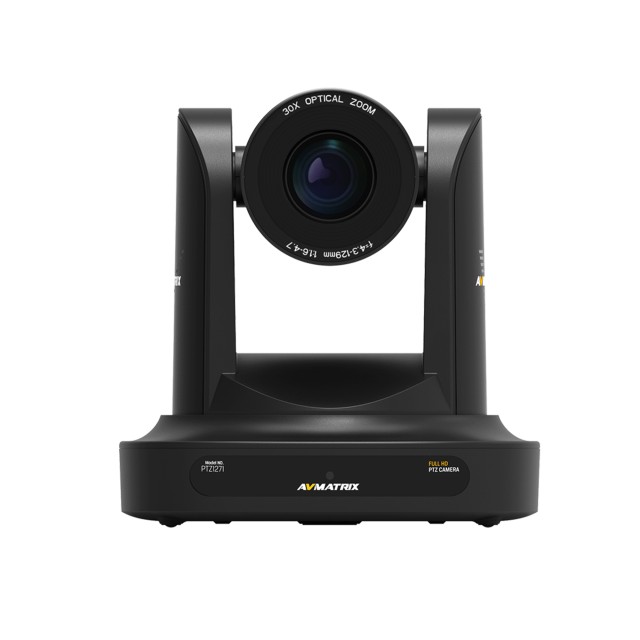

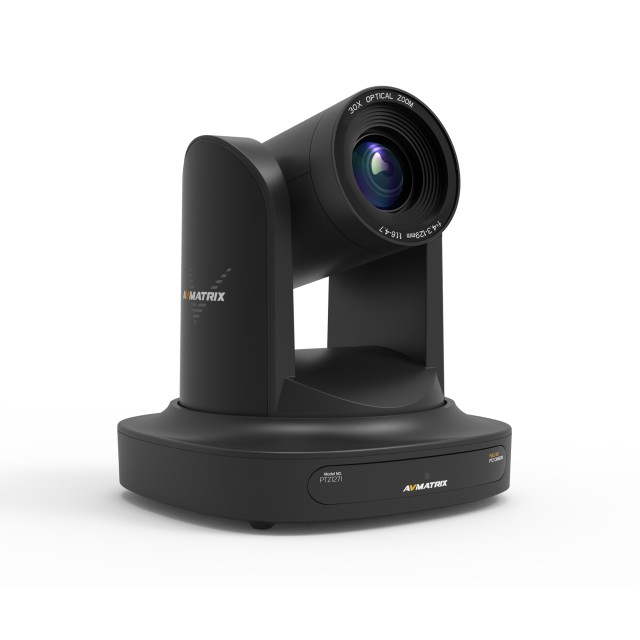

AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera

+2
  • Free transport
SKU: PTZ1271-30X-POE

The PTZ1271-30X-POE Full HD PTZ camera from AVMatrix offers precise control and multiple output ports with video resolution up to 1080p and also supports control and streaming over LAN. Designed for broadcast, security and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D and PELCO-P control protocols.

More information

1 339 € with VAT 1 106.61 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 4 pcs
Praha 4 pcs
SKU:
PTZ1271-30X-POE
Add to Compare Price history

AVMATRIX PTZ1271-20X-POE Full HD PTZ Camera

In stock > 5 pcs1 089 €without VAT 900 €

AVMATRIX PTZ1271-20X-NDI Full HD PTZ Camera with NDI HX

In stock 1 pcs1 459 €without VAT 1 205.79 €

AVMATRIX PTZ1271-30X-NDI Full HD PTZ Camera with NDI HX

In stock 1 pcs1 699 €without VAT 1 404.13 €

AVMatrix PTZ Camera -20X-NDI wPSU - White

In stock 1 pcs1 459 €without VAT 1 205.79 €

AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera White

In stock 1 pcs1 339 €without VAT 1 106.61 €

Top accessories for AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera

Canare 6G/3G/HD-SDI cable on reel with cable holder 50m

  • Top product
Canare L-4.5CHWS BNC (M-samec) / BNC (M-samec) is a "Low Loss" flexible and durable
298 €
Backordered 4 pcs

AVMATRIX Micro 4-Channel HDMI & DP Video Switcher

  • -13 %
Promotion: -13%
Compact 4-Channel Video Switcher 1 x DisplayPort & 4 x HDMI Inputs 1 x HDMI Multiview
371.49 €
429 €
In stock 4 pcs

AVMATRIX MMV1630 16 Channel 3G-SDI Multiviewer

  • Free transport
MMV1630 is the perfect solution for a large broadcast project. One machine supports
1 699 €
In stock > 5 pcs

AVMATRIX PTZ Camera Ceiling-Mount Bracket (Black)

Mount your AVMATRIX PTZ camera with this PTZ Camera Ceiling-Mount Bracket from AVMATRIX.
61 €
In stock 3 pcs

CONST LS-04 Light stand

CONST LS-04 / telescopical stand consist of 3 parts, maximal height 335cm
76 €
In stock 1 pcs

PremiumCord Patch cable CAT 6a S-FTP BLK, 10m

Premiumcord Patch cable CAT 6a S-FTP, RJ45-RJ45, AWG 26/7 black
9.6 €
To be sent > 5 pcs

PremiumCord Patch cable CAT 6a S-FTP BLK, 5m

Premiumcord Patch cable CAT 6a S-FTP, RJ45-RJ45, AWG 26/7 black
5.7 €
To be sent > 5 pcs

AVMATRIX VC41 1080p 3G-SDI PCIe 4-Channel Capture Card

Simultaneously live stream and capture your gameplay or content creation using this
429 €
In stock 3 pcs

AVMATRIX PTZ Camera Bracket MB03

No information or description of what this is exactly, just photos.
85 €
In stock 1 pcs

AVMATRIX PKC3000 Professional IP & Serial PTZ Camera Joystick Controller

Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D Control up to a
549 €
In stock 1 pcs

Show all accessories

Product description

Product description

The PTZ1271-30X-POE Full HD PTZ camera from AVMatrix offers precise control and multiple output ports with video resolution up to 1080p and also supports control and streaming over LAN. Designed for broadcast, security and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D and PELCO-P control protocols.

The integrated f/1.6 to 4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

Key Features

  •     1/2.8" HD CMOS Sensor
  •     30x Optical Zoom, 10x Digital Zoom
  •     HDMI & 3G-SDI Video Output, PoE Power
  •     Streaming Protocols: RTSP, RTMP, SRT
  •     RS-232/RS-485 Serial Control
  •     Onvif, VISCA over IP, VISCA, PELCO-D/P
  •     Tripod & Optional Wall/Ceiling Mounting

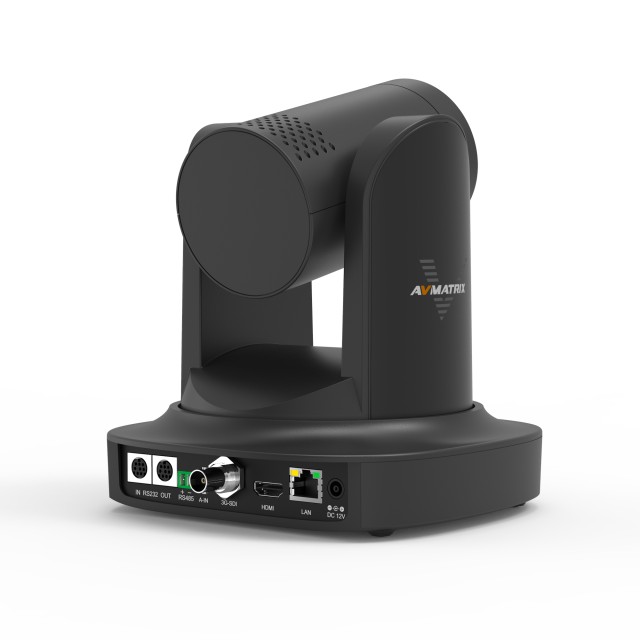

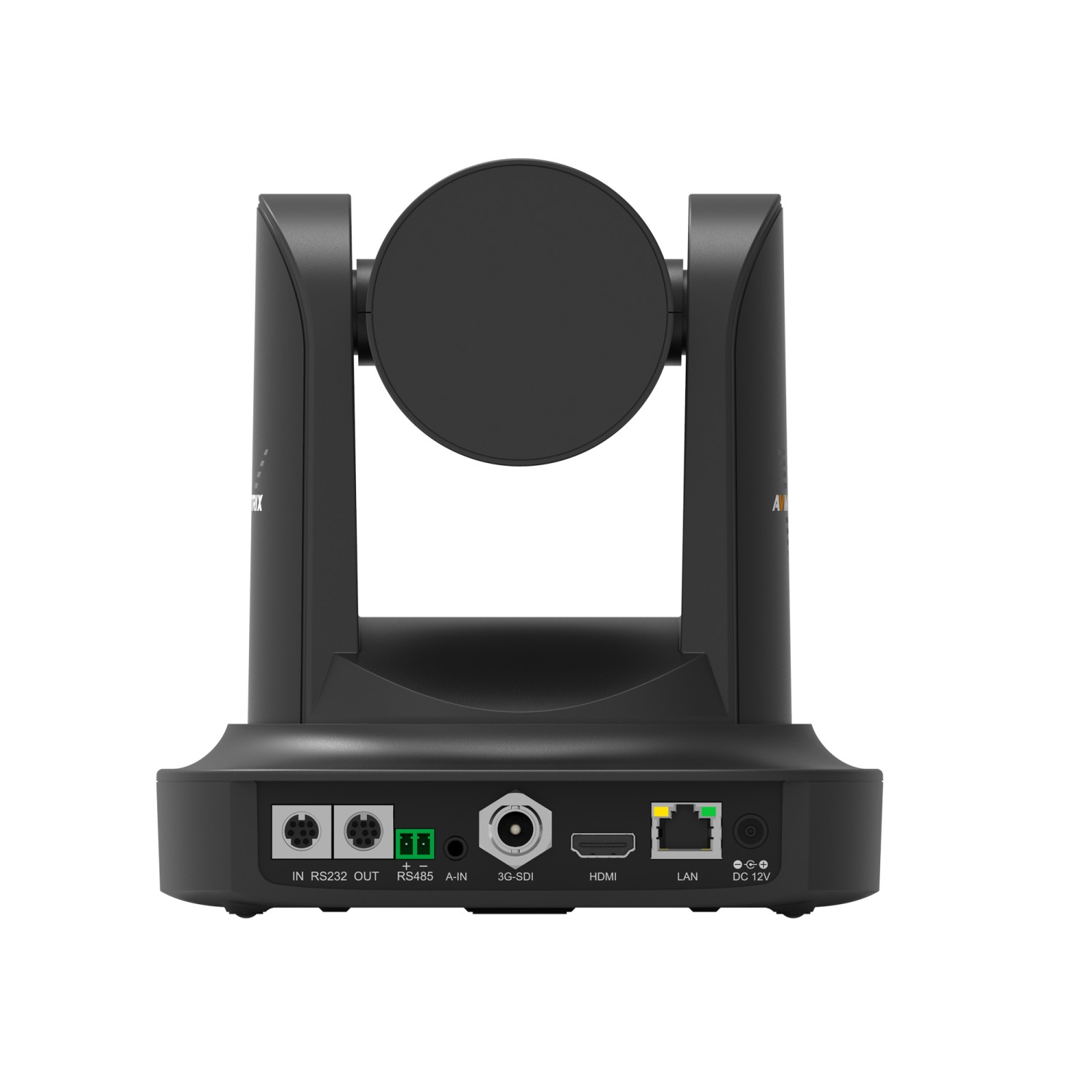

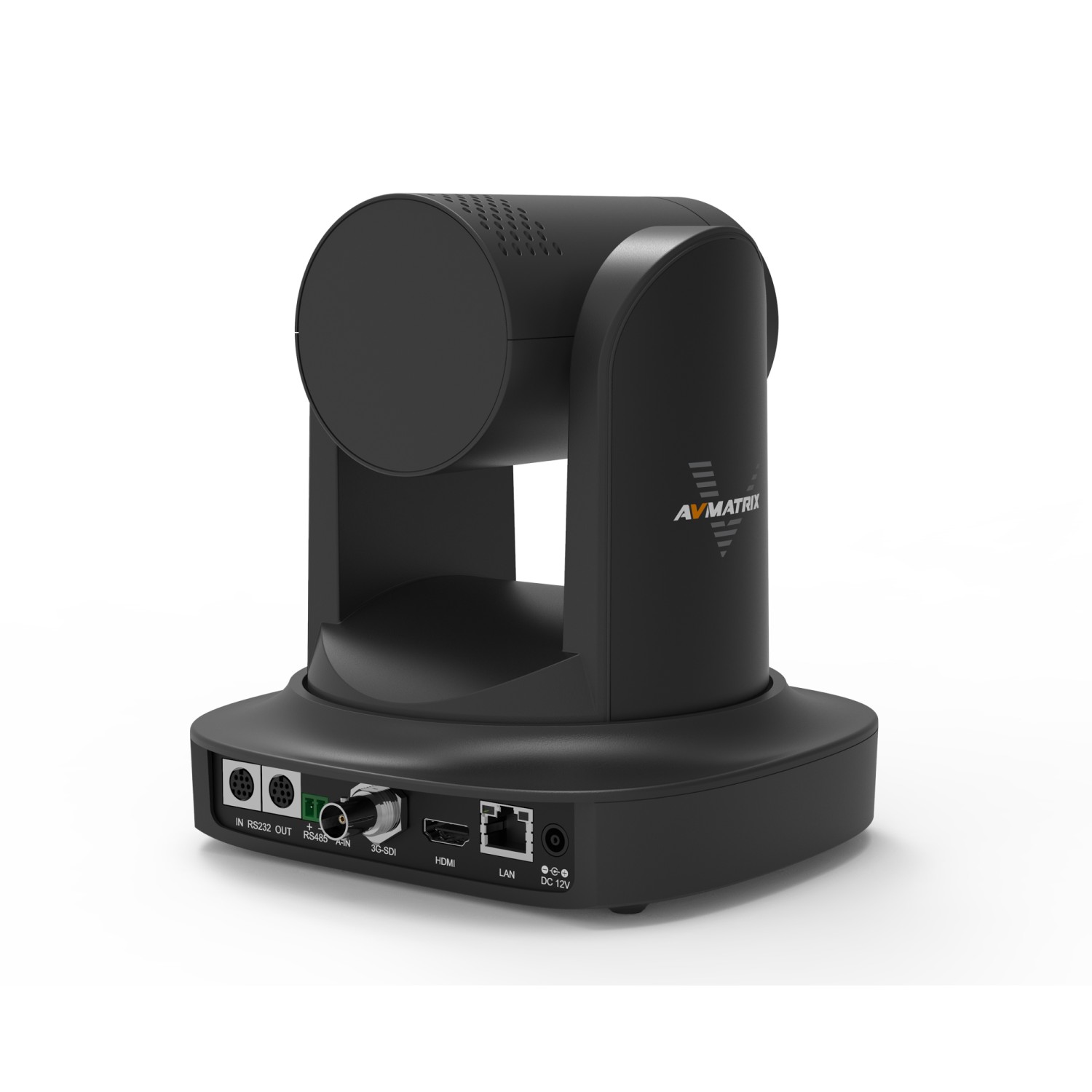

The PTZ camera includes various interfaces. SDI, HDMI, IP outputs allow users to output an up to FHD 1080p signal simultaneously.
The LAN port supports Power Over Ethernet(PoE), NDI|HX 5.0(optional) and IP streaming via RTSP, RTMP protocols. It offers an audio
line-in for NDI/IP streams.  Users can control the PTZ camera easily via LAN port or RS-232 /RS-485 serial port.

Provides 20x/30x optical zoom lens for effective close-up and wide-angle shooting.
Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness.


Easily Control

The PTZ camera can be easily controlled by IR remote control Web UI as well as the joystick
camera controller via IP or serial port. Multiple control protocols are supported including
ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.


A variety of Installation

Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.



TECHNICAL SPECIFICATION


Parameters

Parameters

Manufacturer: AVMATRIX
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
ResolutionFull HD
Streaming service typesYouTube Live
Streaming service typesFacebook Live
Streaming service typesUSTREAM
Streaming service typesWOWZA
Zoom30x
Internal RecordingNo
Type of bayonetintegrated lens
OutputHDMI
OutputSDI
OutputRTMP
Output3G SDI
OutputHD-SDI

Other parameters

VersionPTZ
FPSHD 60fps
FPSHD 50fps
Lens lens aperture1.8f
Min. focal length4.3mm
Max. focal length129mm
Colour depth8 bit
Colour depth10 bit
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Control protocolPelco-P
Control protocolPelco-D
Control protocolVISCA
Control protocolONVIF
