AVtec XHD070Pro

  • End Of Life
SKU: XHD070PRO
This product is no longer offered. Please select from the alternatives below.
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The difference between the XHD070Pro and XHD070 is the number of features that is added to the Pro version, being the Histogram, False colors and Exposure. These features make it just a little bit easier to get the perfect picture when you use your monitor on a more frequent basis. This makes the XHD070 a great tool for the average user who wants to maximize the results with a minimum of cost and effort.

Key Features

  • Ultra-thin, lightweight design
  • 1280 x 800 resolution IPS display
  • HDMI and A/V camera inputs
  • Supports up to 1080p resolution signals
  • Built-in speaker
  • Headphone output
  • Four assignable function buttons
  • Includes sunhood, ballhead, and three battery plates
  • On-screen multilingual menu
  • 16:9, 4:3, Panorama, and Automatic aspect ratios

Monitoring Functions

  • Histogram
  • False Colors
  • Exposure (Zebras)
  • Focus Assist
  • Center Marker
  • Safe Frame
  • Check Field
  • Camera Mode
  • Aspect Ratio
  • Image Flip
  • Pixel-to-Pixel
  • Image Freeze

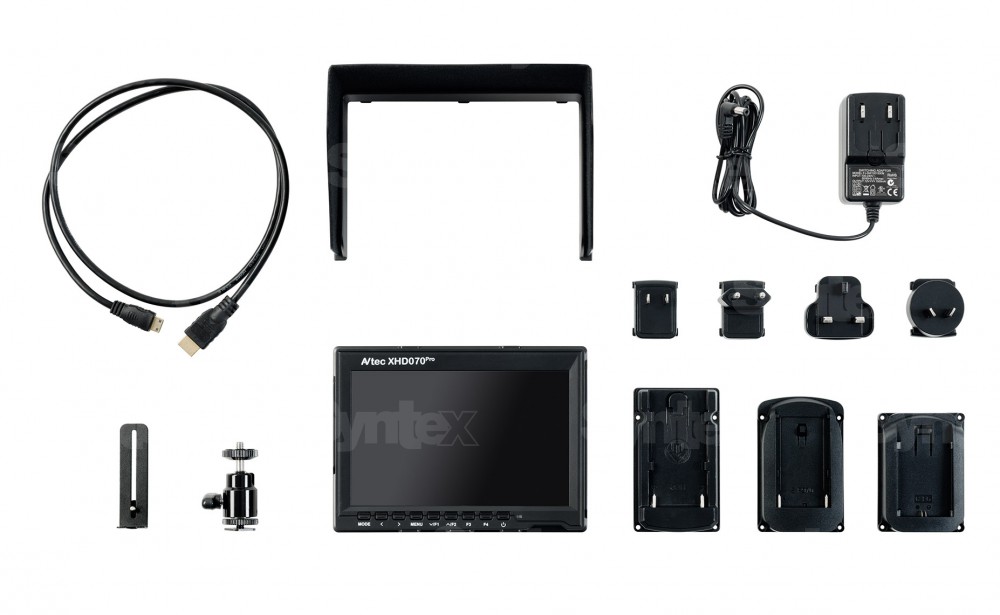

PACKAGE CONTENT

  • Avtec XHD070Pro 7" On-Camera HDMI IPS Monitor

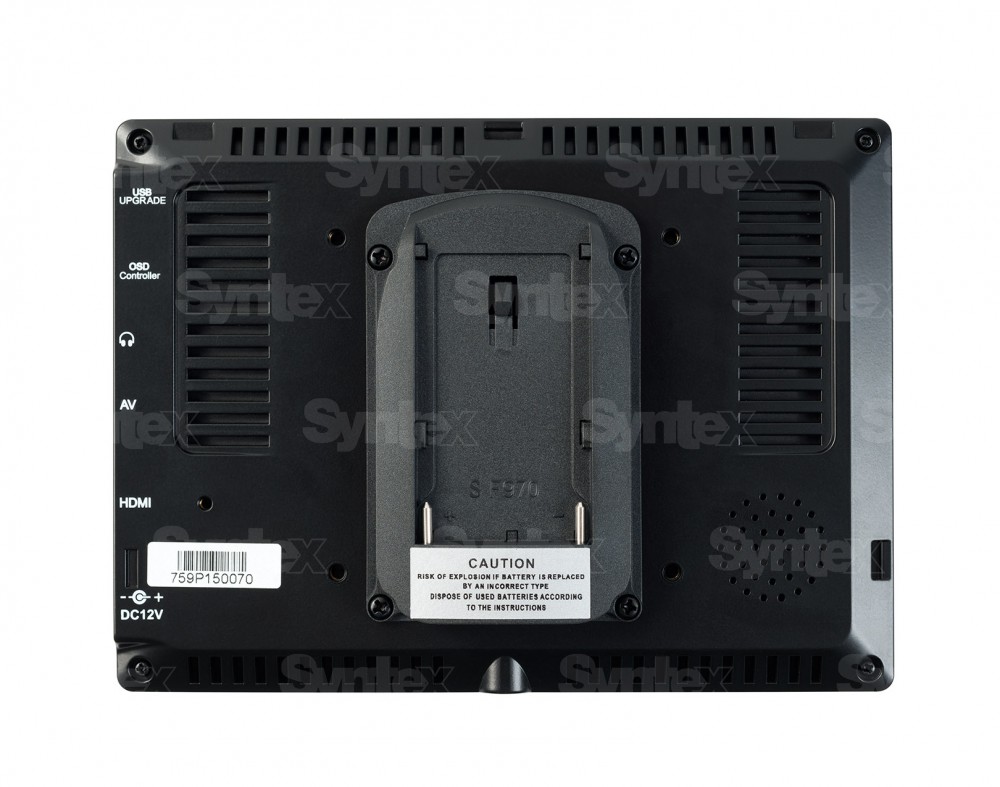

    Battery Plate for Sony NP-F Batteries
    Battery Plate for Sony BP-U Batteries
    Battery Plate for Canon LP-E6 Batteries
    AC/DC Power Adapter with EU, US, UK, and AU Plug Adapters
    Sun Hood

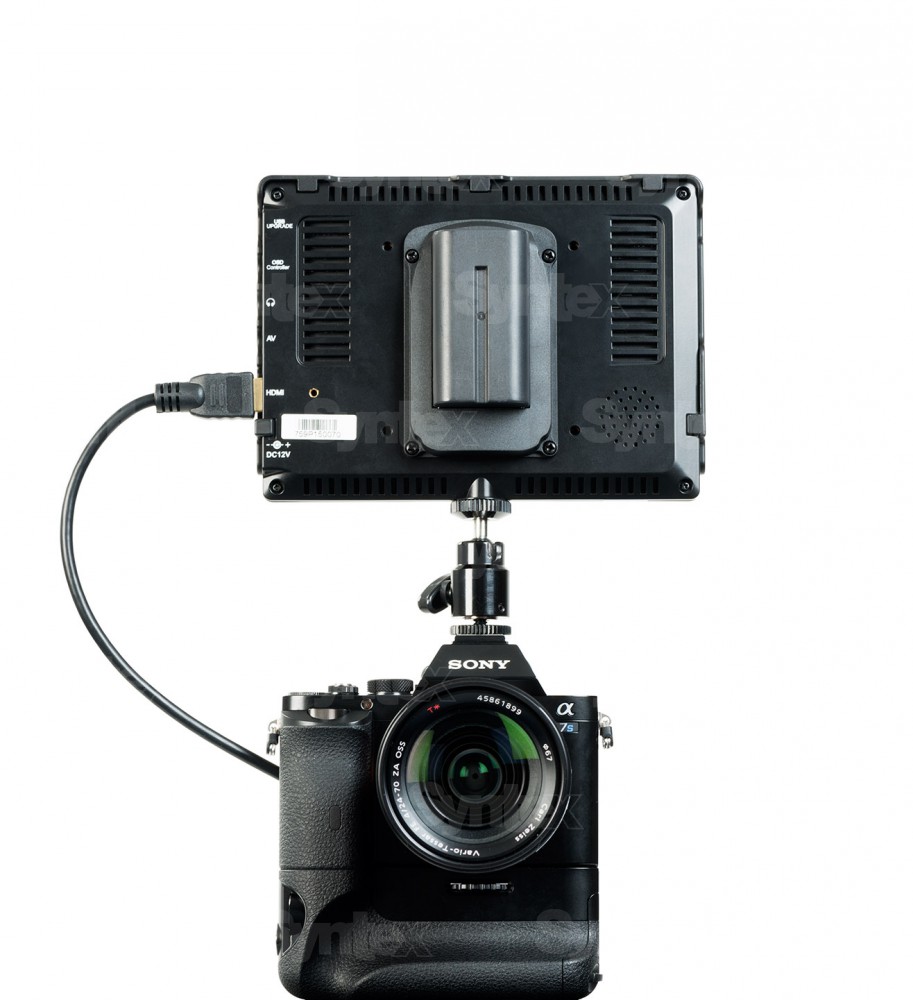

    Shoe Mount Ball Head with 1/4"-20 Camera Screw
    HDMI to HDMI Mini Cable
    HDMI Cable Clamp

SPECIFICATIONS

  • Display LED-backlit IPS LCD 7" (18 cm)
  • Resolution 1280 x 800
  • Dot Pitch 0.11775 (W) x 0.11775 (H)
  • Aspect Ratio 16:9
  • Brightness 400 cd/m2
  • Contrast Ratio 800:1
  • Response Time 25 ms
  • Viewing Angle 178° - 89/89/89/89° (Left/Right/Up/Down)
  • Input Signal 1 x HDMI type A
  • 1 x A/V
  • Color System NTSC 3.58 / PAL 4.43
  • Supported Resolutions 1080p60/59.94/50/30/29.97/25/24/24/23.98/23.98 fps, 1080i60/59.94/50, 720p60/59.94/50/30/29/25/24/23.98, 576p/i, 480p/i
  • Speaker Built-in on the rear
  • Headphone Output Stereo 3.5 mm
  • Input Voltage 7.4 to 35 VDC
  • Mount Type 1/4"-20 threaded hole on the bottom
  • Power Consumption ≦ 5W
  • Operating Temperature -4 to 122°F (-20 to 50°C)
  • Storage Temperature -22 to 140°F (-30 to 60°C)
  • Dimensions 7 x 5 x 0.7" (17.5 x 13 x 1.7 cm), 7 x 5 x 1.7" (18 x 13 x 4.3 cm) (including sun hood)
  • Weight 0.64 lb (290 g)
Parameters

Parameters

Manufacturer: AVtec
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor power supplySony NP-F
Monitor power supplySony NP-F / BP-U
Luminosity400cd/m2
Panel resolution1280x800

Other parameters

Other featuresLightweight
