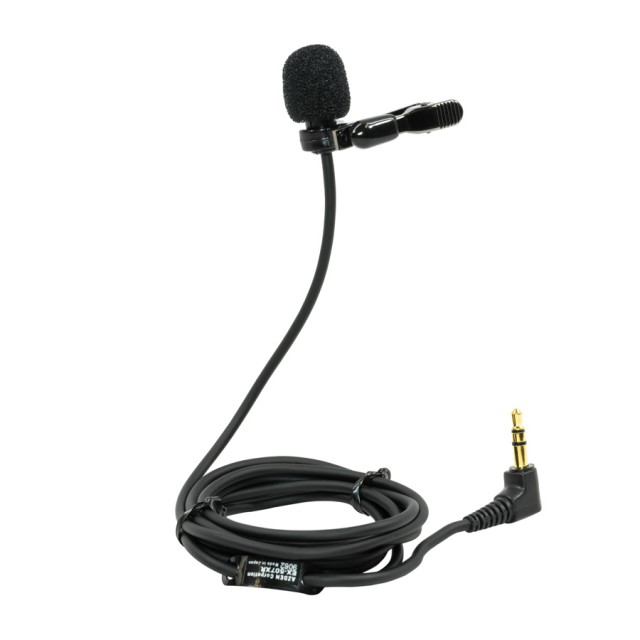

Azden EX-507XR Professional Lavalier Microphone

Professional quality, omni-directional lavalier microphone for the PRO-XR and other wireless systems.

The EX-507XR lavalier microphone is a direct replacement mic for the PRO-XR wireless system, but with its 3.5 mm TRS output connector, its also compatible with many other 3rd party wireless systems, including ones from Rode, Sennheiser and Sony. In addition, it can be used with other Azden wireless systems such as the VHF Pro Series and the 310 and 330 UHF wireless series systems. The EX-507XR would also work well plugged directly into a camera or digital audio recorder.

This lav mic offers a full spectrum frequency response with a natural contour, and a highly sensitive, omni-directional microphone element. The 4-foot long cable (approximately) is plenty of length for use with a belt-clip transmitter and the right-angle plug helps to prevent accidental disconnection. Mic includes an alligator-style lapel clip for attachment to clothing and foam windshield.

Note: this model microphone is not compatible with the PRO-XD system. For that, please see the EX-507XD.

Mic Element: Electret Condenser

Polar Pattern: Omni-Directional

Freq. Response: 20 Hz~20 kHz

Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa

Impedance: 2.2 kΩ @1 kHz

Power Requirement: Plug-in power DC 1-10 V

Connector Type: Φ3.5 mm TRS

Cord Length: 1.2 m

TheAzden EX-507XR is a lapel microphone for the PRO-XRwireless system (but not the PRO-XD; requires the EX-507XD model), which is also compatible with a number of competing solutions such as Rode, Sennheiser and Sony, as well as the Azden VHF Pro Series and both 310 and 330 UHF products, thanks to the 3.5mm TRS output connector . It can also be connected directly to a camera or audio recorder (with plug-in power). The microphone also offers high sensitivity, over 1m of cable, a clip for easy attachment to clothing and foam wind protection.

• Microphone insert type: electret
• Directional characteristics: omnidirectional
• Frequency response: 20 Hz~20 kHz
• Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa
• Impedance: 2.2 kΩ @1 kHz
• Power: Plug-in Power 1-10 V=
• Output Connector: 3.5mm TRS
• Cable length: 1.2 m
