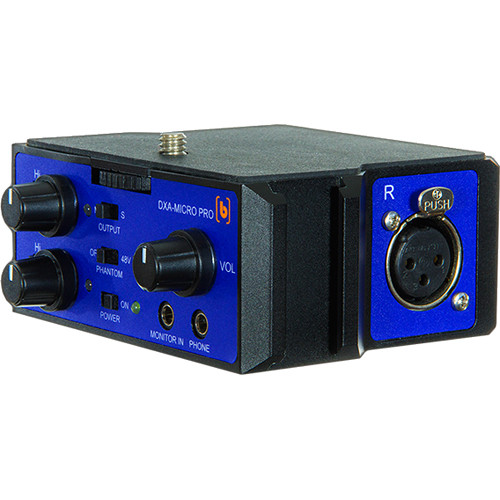

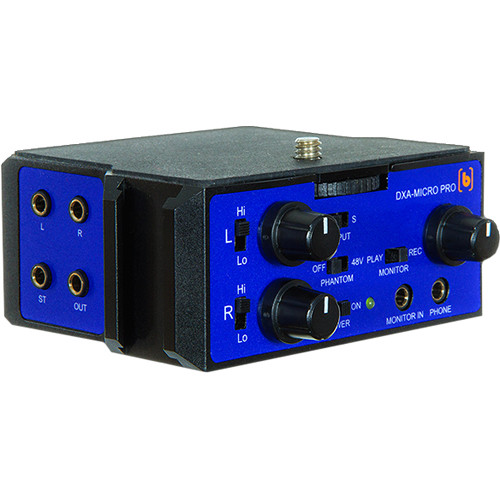

BeachTek DXA-Micro Pro

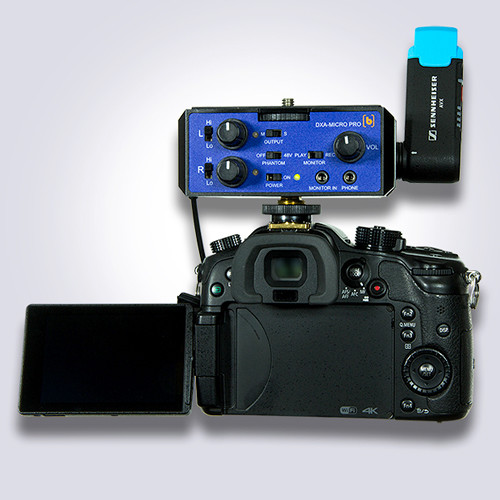

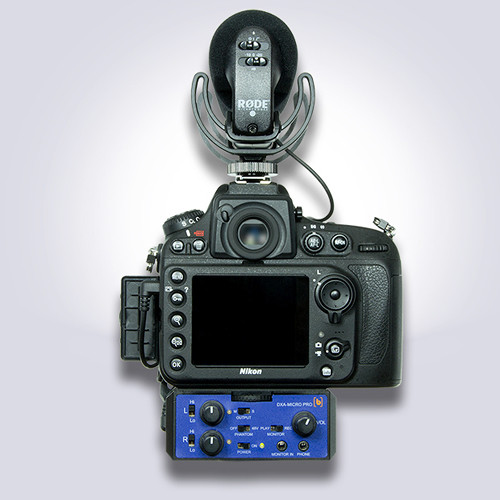

The BeachTek DXA-MICRO PRO is packed with all the features you need to record high quality audio from virtually any source. Superb operation and ease of use to make capturing pro audio a snap. Since the audio is recorded directly to the camera, it will always in sync with the video, eliminating the need for any post production processing. The compact size makes it ideal for use with the latest mirrorless cameras. The DXA-MICRO PRO is the missing link for connecting virtually any microphone to your camera.

Maximum Input Levels
LO gain -14dBu
HI gain) -29dBu

Output Level
-26dBu when level indicators change to red

Frequency Response
20Hz to 20kHz (+/- 0.5dB)

THD + N
Less than 0.03% @ 1kHz, -30dBu input

S/N Ratio
85dB @ 1Khz, -30dBu input

Gain
LO +15dB
HI +30dB

Phantom Power
Regulated 48 volt power
Current to 14mA (direct short)

Plug-in Power
3.5 volts on all mini-jack mic inputs

Battery Type
One 9 volt alkaline or lithium battery

Battery Duration
3 hours typical with alkaline battery (no phantom)
8 hours typical with lithium battery (no phantom)

Dimensions
4” x 3” x 1.5” (L x W x H)
(102 mm x 76 mm x 38 mm)

Weight
12 oz. (0.3 kg)
