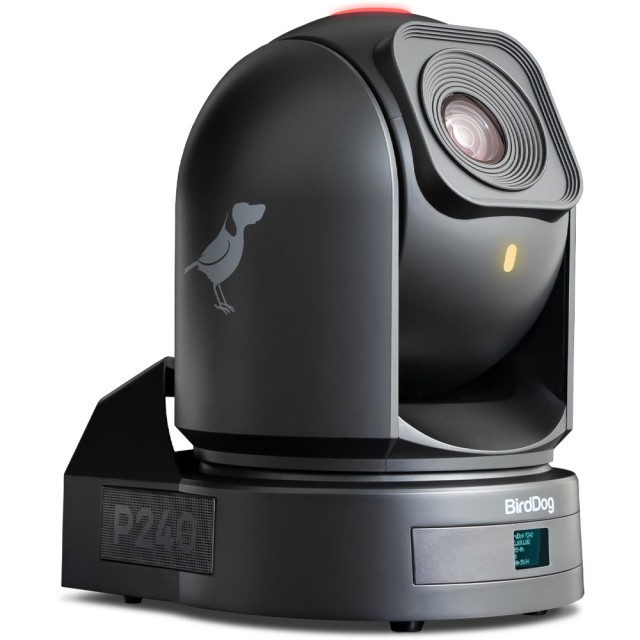

BirdDog P240 FULL NDI PTZ CAMERA Black

1x BirdDog PTZ camera
1x Camera Power Adaptor & Power Cord
1x Mounting Screws
1x User Manual

CAMERA

• IMAGE SENSOR: 1/2.5 inch CMOS 8.5MP
• LENS: 4.4-88.4mm
• OPTICAL ZOOM: Up to 40x *
• SRZ (Super Resolution Zoom): 40x in Full HD
• HORIZONTAL ANGLE OF VIEW: 70.2° (W) – 4.1° (T)
• APERTURE: F2.0 (W) – F3.8 (T)
• MIN. ILLUMINATION: Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)
• SHUTTER SPEED: 1/1 – 1/10000s
• FEATURES: Visibility enhancer, Black & White, E-Flip, Mirror, Colour enhancement, Black level, gamma, Colour/Hue Adjust, HLC, Colour Bar
• IMAGE STABILIZER: YES
• COLOR GAIN:Yes (15 steps)
• COLOR HUE: Yes (15 steps)
• GAMMA: Standard, Straight, 512 pattern
• GAMMA LEVEL: Yes (15 steps)
• BLACK LEVEL: Yes (97 step) – Flicker Cancel: Yes
• NOISE REDUCTION: On/Off (level 5 to 1/Off, 6 steps), 2D/3D
• S/N RATIO:≥50db
• FOCUS: Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit
• WHITE BALANCE: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto）
• EXPOSURE: Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
• BACKLIGHT COMPENSATION: YES

*(When running in native scan mode)

MECHANICAL

• PAN MOVEMENT: Horizontal: ±175º (Zoom Adaptive Speed Range: 0.05°〜100°/s)
• TILT MOVEMENT: Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°〜50°/s)
• PRESET POSITIONS: 128 (Speed adjustable: Up to 150°/s)
• ENVIRONMENTAL: Indoor
• OPERATING TEMPERATURE: -10 – +40 (°C)
• OPERATING HUMIDITY: ≤80%
• TALLY DISPLAY: Bi Colour Full overhead and rear (w/included 0-9 number silicon plugs)
• ONBOARD OLED DISPLAY: 5-line, RGB Color, Graphical

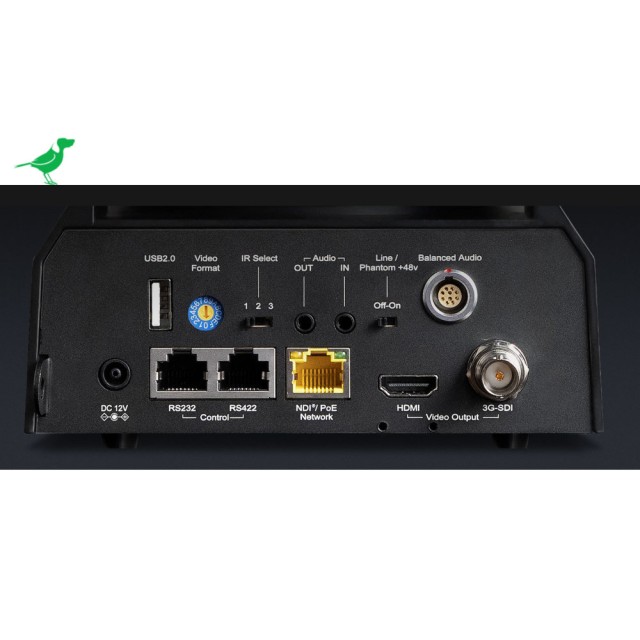

VIDEO INTERFACE

• VIDEO OUTPUT: NDI/HDMI/3G-SDI
• HD VIDEO FORMATS: 1080p 59.94, 50, 29.97, 25, 23.97 1080i 59.94, 50 • 720p 59.94, 50
• ANALOGUE AUDIO I/O:
  • IN: balanced XLR (via breakout cable) with 48V Phantom power, unbalanced 3.5mm TRS (stereo)
  • OUT: balanced XLR (via breakout cable), unbalanced 3.5mm TRS (stereo)
• AUDIO OUTPUT:

  • Embedded with main HDMI, 24bit
  • Embedded with SDI, 24bit
  • Embedded with NDI

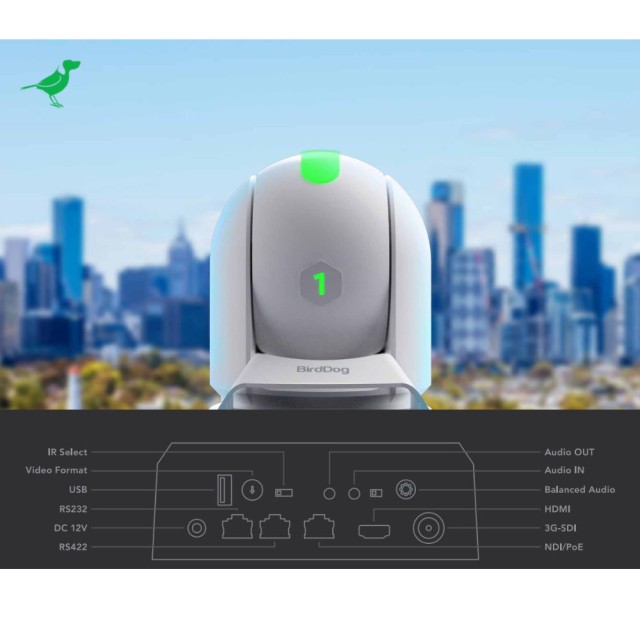

CONTROL INTERFACE

• IP PTZ CONTROL: NDI Control (auto configuring), VISCA IP
• SERIAL PTZ CONTROL: 2x RJ45: RS232 / RS422 Connectors
• SERIAL CONTROL PROTOCOL: VISCA / PELCO D

POWER & DIMENSIONS

• POWER INPUT: 12v DC, PoE+ (IEEE 802.3at)
• POWER CONSUMPTION: 22.5W (PTZ move simultaneously)
• DIMENSIONS: 163x199x231mm
• WEIGHT: 2.395kg

NETWORK

• VIDEO COMPRESSION:
  Full NDI – i-frame high quality low latency NDI for production
  h.264 long-GOP (Limited resolution support)
• NETWORK PROTOCOL:

  • NDI – Discovery, configuration, and control NDI | HX2*
  • SRT*
  • Cloud Connect*
  • RTSP*
  • RTMP*
• WEB CONTROL INTERFACE: Full control via Web/Mobile UI including Scene presets
• OPTIONAL MOUNTS: Ceiling mount, Wall mount

*Coming soon with free firmware update.
