BLACK LION AUDIO PBR XLR - patchbay 12+4 XLR

patchbay 12+4 XLR, 16 connection points, gold-plated connectors, high reliability, long service life

professional studio patch panel with XLR connectors, 16 connection points, high reliability and long life

• patch panel with XLR connectors
• 16 connection points
• connectors with gold-plated contacts
• high mechanical resistance and reliability
• long service life

Your high-quality studio and home instruments require high-quality interconnection. Black Lion Audio has been dedicated to ultimate sound quality for years. That's why it is bringing new PBR patchbays to market - interconnect panels for use in the studio as well as in theaters and other professional sound installations.

Each PBR patchbay uses high-quality metal connectors with gold-plated contacts. This ensures highly reliable interconnection of your equipment. The black anodized aluminum front panel and metal body gives the PBR series patchbays a sleek sophisticated look and, together with the robust connectors, ensures mechanical durability and long life.

PBR XLR

is a patchbay designed to connect devices and cabling using XLR male and XLR fem connectors. Standard quality XLR-XLR symmetrical cables can be used for interconnection. The patch panel is made in 19" 1U format.

front panel
The Patchbay has 16 XLR connectors on the front panel. The first twelve marked INPUT 1, 2,... 12 are fitted with XLR fem connectors and are used to bring the signal to the inputs of the connected devices. The remaining four connectors labeled OUTPUT 13, 14,... 16 are XLR male and are intended for the outputs of connected devices. The aluminum front panel is equipped with side brackets for installation in a 19" rack.

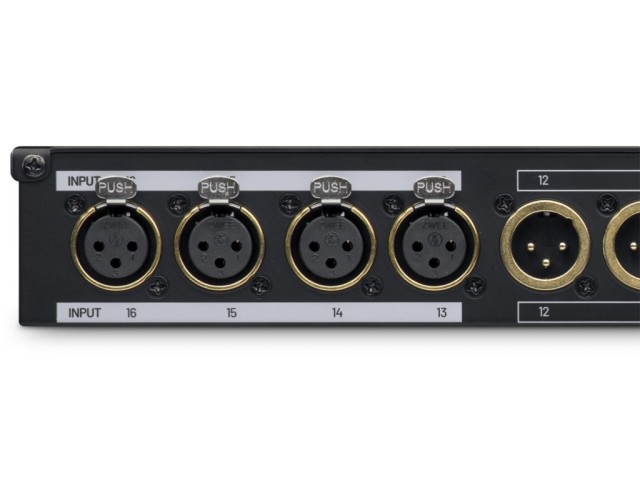

rear panel
The rear panel logically houses the opposite connectors marked INPUT/OUTPUT. The first twelve are XLR male and can be used to take signals from the front inputs. The remaining four are XLR male and take the signal from the outputs of the connected devices.

features:

• number of connectors: 2x 16
• connector type: XLR male and XLR fem - gold-plated contacts
• number of connection points: 16
• anodized aluminium front panel
• robust metal chassis
• high mechanical resistance and reliability
• long service life
• dimensions: 48.5 x 4.5 x X cm (W x H x D)
• width, height: 19", 1U
• weight: X kg
