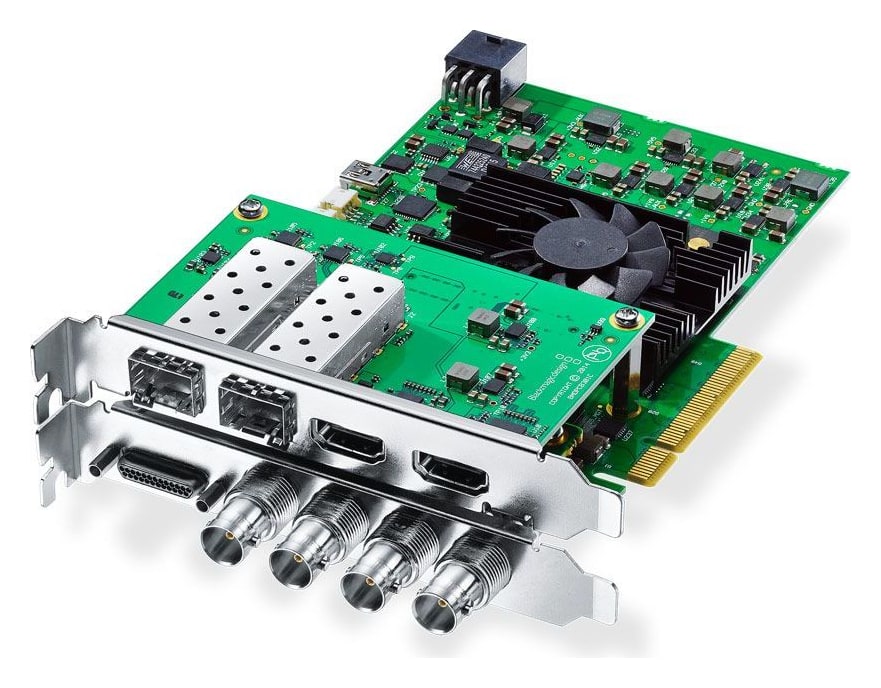

Blackmagic Design DeckLink 4K Extreme 12G

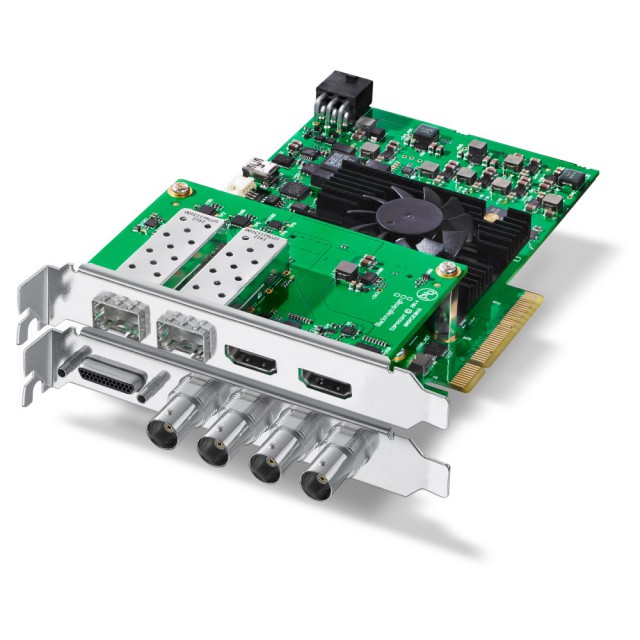

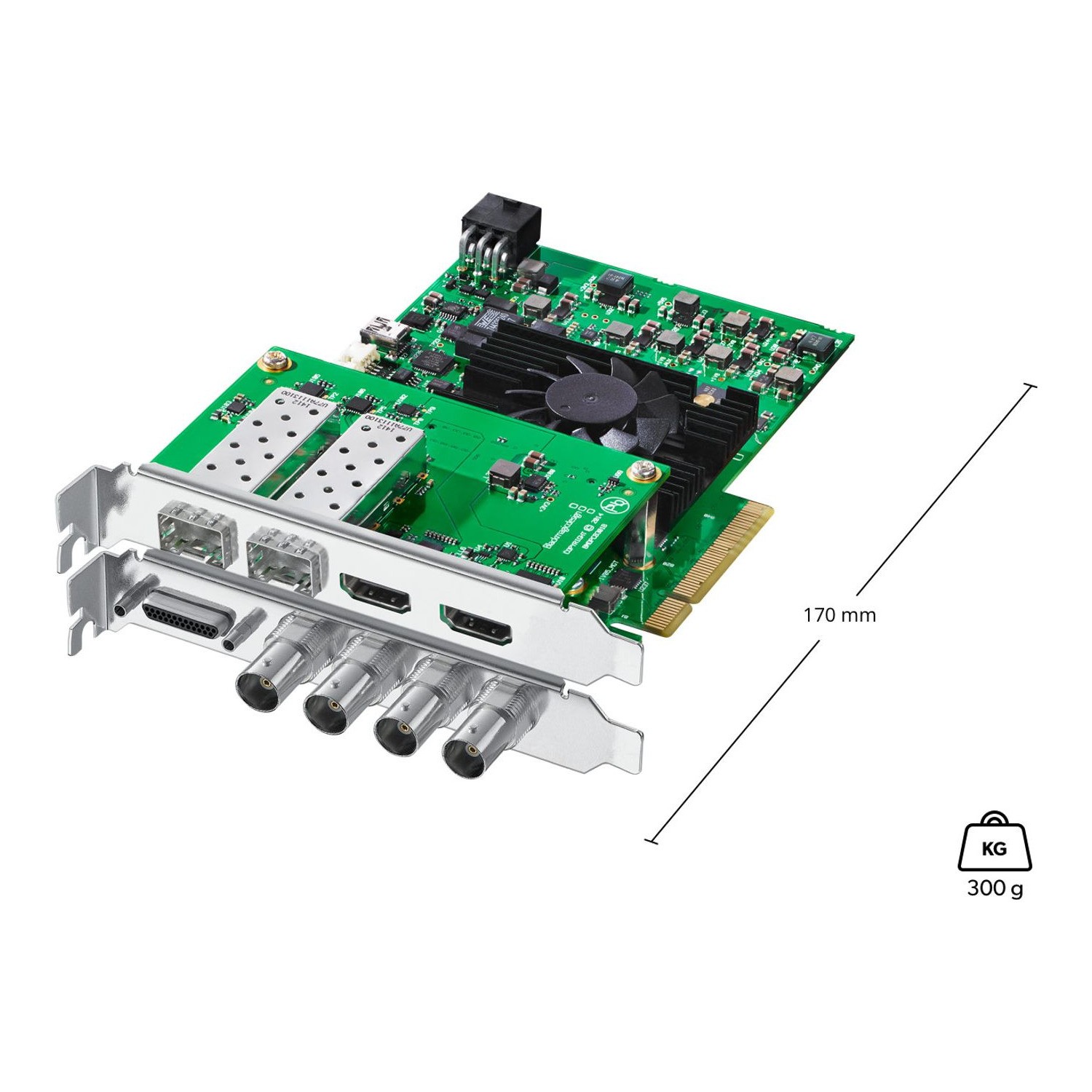

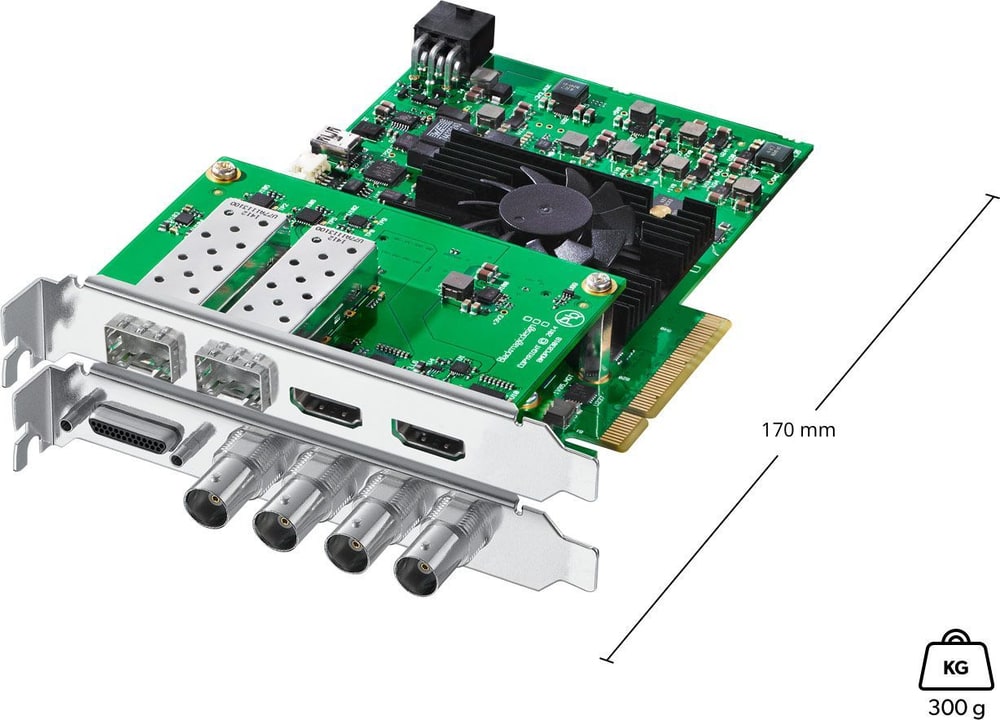

DeckLink 4K Extreme 12G is a new Dual Link 12G-SDI capture and playback card that includes an extremely fast 8 lane PCI Express Generation 2 connection to the computer allowing extremely high performance such as dual stream video capture and playback at resolutions up to 2160p60. Dual stream capture and playback at these resolutions allows dual stream 3D as well as simultaneous fill and key capture and playback even when operating at Ultra HD at 60 frames per second.

2x 4K!

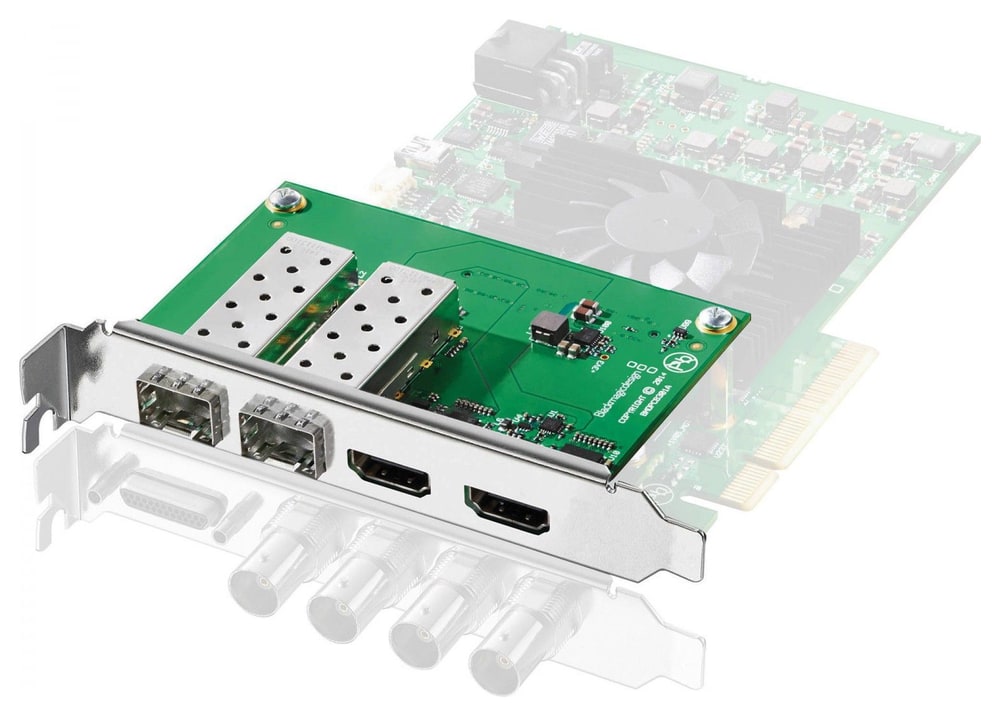

The new DeckLink 4K Extreme 12G is the ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs! The multi rate 12G-SDI connections work with SD, HD and Ultra HD all the way up to full frame DCI 4K at 4096 x 2160 resolution at 60 frames per second. DeckLink 4K Extreme 12G supports 10-bit YUV and 8-bit, 10-bit and 12-bit RGB as well as 3D up to DCI 4K at 4096 x 2160 resolution at 60 frames per second. The new DeckLink 4K Extreme 12G includes a new mezzanine card design that adds HDMI in and out on a second daughter card along with sockets for adding 2 optical fiber modules for Dual Link optical fiber SDI in and out. SMPTE compatible optical modules can be added up to 12G-SDI speeds, allowing customers to choose to connect equipment using optical fiber connections instead of regular BNC copper cables for dramatically longer cable length, even at the faster 12 Gb/s speeds.

Video and Film Post
DeckLink 4K Extreme 12G is perfect for customers working on feature film, commercial, visual FX, and television productions that require high resolution, deep color, stereoscopic 3D and high frame rate support. DaVinci Resolve 11 customers will benefit from the simultaneous capture and playback support as this lets them capture direct from cameras on set, grade the live video with multiple nodes of correction and then to output the video to an on set monitor, all live and in real time! This makes lighting a film set easy and allows DOP’s, directors and colorists to work together to optimize the film’s look on set.



SDK Included
OEM developers will also like the multiple new features in these models as they greatly benefit customized system development. These new features include full frame genlock timing, closed caption in all bit rates, automatic input detection support, better CRC input checking, extremely low latency and direct GPU support, plus the ability to write pixels directly into the card’s frame buffers and the ability to write their own custom drivers.

Supports SD, HD and UHD

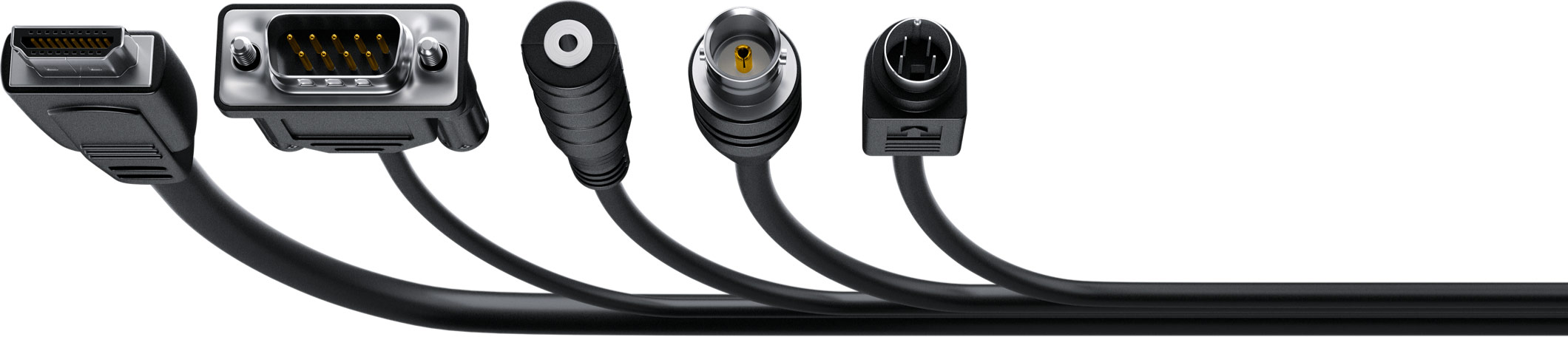

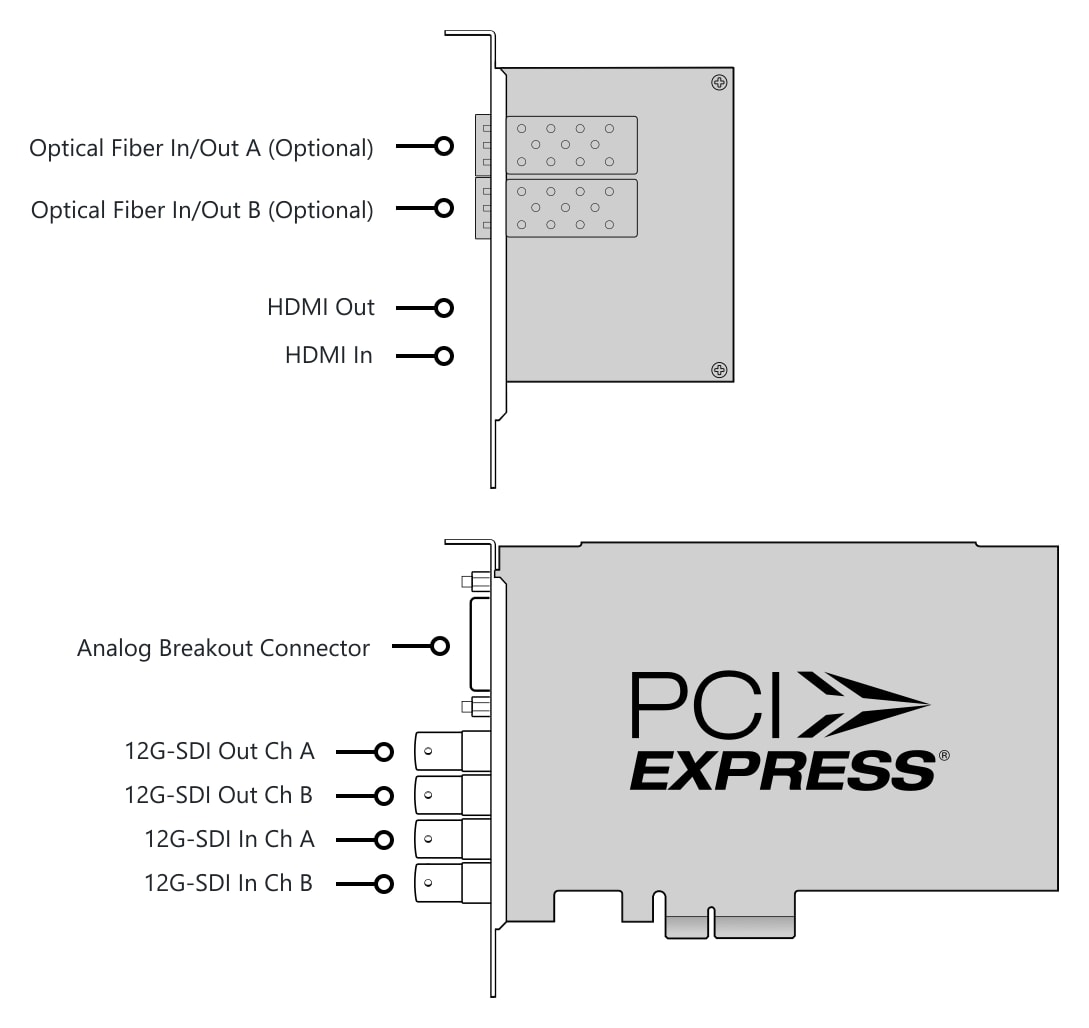

DeckLink 4K Extreme 12G includes two 12G-SDI inputs and two 12G-SDI outputs, reference input and RS422 deck control ports for capture and playback of all SD, HD, Ultra HD and DCI 4K formats. The card also includes HDMI input and output, AES/EBU balanced XLR and unbalanced RCA inputs/outputs, and analog video I/O via the included breakout cable.

DeckLink 4K Extreme 12G Key Features

• 2 x 12G-SDI in and out, supports SD, HD up to 1080p60, 2K, Ultra HD and up to DCI 4K at 4096 x 2160 resolution at 60 frames per second.
• HDMI 4K in and out, supports SD and HD formats up to 1080p60.
• Component analog in and out, supports SD and HD formats up to 1080p60, s-video and composite.
• 4 channels of balanced analog audio in and out on jack connectors.
• 2 channel AES/EBU balanced audio in and out on jack connectors.
• Genlock/tri-sync input.
• Sony™ compatible RS-422 deck control.
• Dual optical fiber sockets for adding optical fiber modules, up to 12 Gb/s speeds.
• Supports uncompressed 8, 10 and 12 bit and compressed video capture and playback.
• Plugs into older model MacPro, Windows and Linux computers.
• Supports DaVinci Resolve, Final Cut Pro™, Adobe Premiere Pro™, Photoshop™, After Effects™ and more.
• Includes free developer SDK for Windows, Mac and Linux.
• Includes free Media Express capture and playback software for Windows, Mac and Linux.

DeckLink 4K Extreme 12G - Quad SDI
...is a new mezzanine card that lets customers connect older Ultra HD and 4K equipment that use quad link 3G-SDI connections to their computer through their existing DeckLink 4K Extreme 12G video capture and playback card. DeckLink 4K Extreme 12G has native 12G-SDI connections for working with the very latest high frame rate 4K equipment over a single, high speed SDI cable. Older, first generation monitors and projectors have quad link 3G-SDI connections that require 4 SDI cables. The new DeckLink 4K Extreme 12G - Quad SDI mezzanine card bridges the gap so customers can now have both high speed 12G-SDI connections and four 3G-SDI connections, all on the same card.

Now with DeckLink 4K Extreme 12G - Quad SDI a colorist working with DaVinci Resolve in a grading suite or theater can directly connect to older monitors and digital cinema projectors that have four 3G-SDI connections, without needing to buy additional external converters. In addition to Quad SDI support, the DeckLink 4K Extreme 12G - Quad SDI card also adds a built in hardware down converter for outputting 1080p60 video from 12G-SDI 2160p60 sources. The new Quad Link SDI mezzanine card fits in the mezzanine slot on the DeckLink 4K Extreme 12G, replacing the standard HDMI card that normally occupies the slot. The mezzanine card is easily replaceable and can be installed directly by customers. Installing the Quad Link SDI mezzanine card gives customers quad link 3G-SDI capture and playback on their DeckLink 4K Extreme 12G card.
