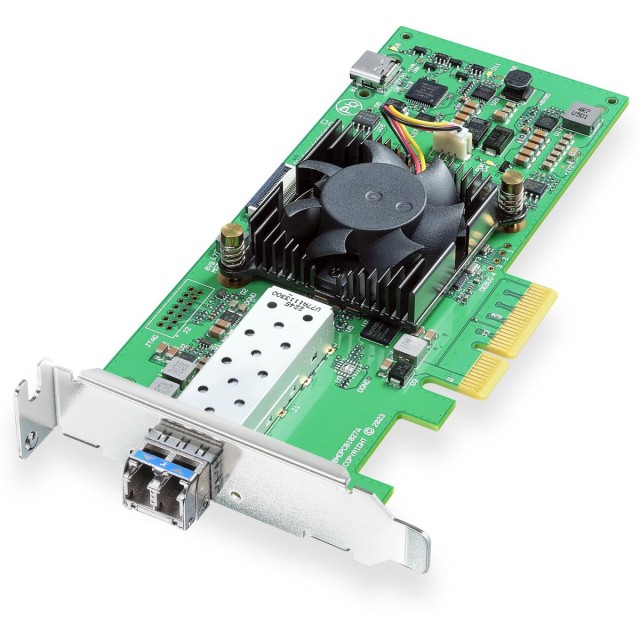

Blackmagic Design DeckLink IP HD Optical

Blackmagic Design DeckLink IP is a new family of PCIe cards that capture and playback 10-bit uncompressed, broadcast quality video directly into 2110 IP based broadcast systems. DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. There are three models in the new DeckLink IP family. DeckLink IP HD features 3 channels of capture and playback to 2110 IP broadcast systems via a single RJ45 style Ethernet connection. DeckLink IP HD Optical features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. DeckLink IP/SDI HD allows connection to both 3G-SDI and 2110 IP systems. This model has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 3G-SDI and reference out. All models support 720p, 1080i and 1080p video standards up to 1080p60. Available 6/2023.

DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP-based broadcast systems. They have the same DeckLink features so all customers existing software will just work. This means customers can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. Customers can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.

Supported Codecs: AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.

IP Video Compliance: SMPTE 2110-20 (Uncompressed Video), SMPTE 2110-21 (Traffic Shaping), SMPTE 2110-30 (PCM), SMPTE 2110-40 (Ancillary Data), IEEE 1588-2008 (PTP v2)/ST 2059-1/ST 2059-2, NMOS IS-04, NMOS IS-05, NMOS BCP-002-01, NMOS BCP-004-01
