Effective Sensor Size
18.96mm x 10mm (Four Thirds)
The all new Blackmagic Pocket Cinema Camera 4K, a handheld digital film camera with full 4/3 HDR sensor, dual native ISO with up to 25600 ISO for incredible low light performance as well as 13 stops of dynamic range. It also eliminates expensive external recorders, as it features a unique new USB-C Expansion Port, which allows customers to record using the…
The all new Blackmagic Pocket Cinema Camera 4K, a handheld digital film camera with full 4/3 HDR sensor, dual native ISO with up to 25600 ISO for incredible low light performance as well as 13 stops of dynamic range. It also eliminates expensive external recorders, as it features a unique new USB-C Expansion Port, which allows customers to record using the internal SD/UHS-II and CFast recorders or directly to the same external disks they will use for editing and color correction. Without lens.
The revolutionary new Blackmagic Pocket Cinema Camera 4K is the handheld digital film camera that customers have been asking for. It packs incredibly high end imaging and professional features into a portable and affordable design that can be used anywhere. The compact body style is perfect for shooting independent films and documentaries, fashion shows, travel blogs, web videos, weddings, corporate video, sports and much more.

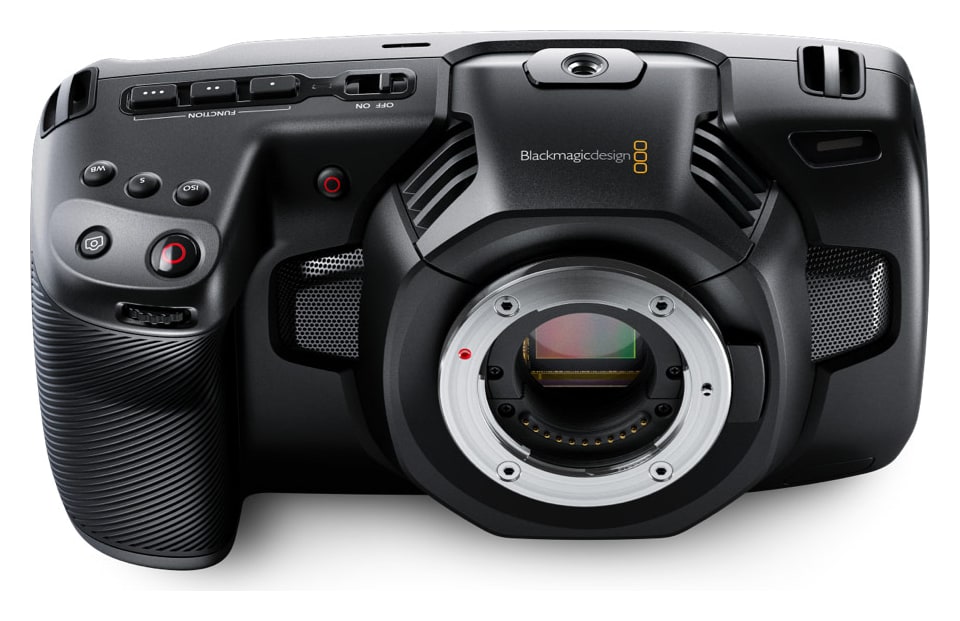

The Blackmagic Pocket Cinema Camera 4K features a full size 4/3 HDR sensor with native 4096 x 2160 resolution and 13 stops of dynamic range for true digital film quality. The full size of the 4/3 sensor is designed to perfectly match MFT lenses so the crop factor is greatly reduced, giving customers a wider field of view. It also features dual native ISO with up to 25600 ISO for incredible low light performance.
The Blackmagic Pocket Cinema Camera 4K is packed with features such as a MFT lens mount, large 5 inch touchscreen monitor, 10-bit ProRes and 12-bit RAW recording, 3D LUTs, 4 built in microphones, mini XLR audio input with phantom power, Bluetooth wireless camera control, HDMI on set monitoring output and more. The latest Blackmagic Design color science lets customers shoot images that are far better than DSLR cameras and even better than professional digital film cameras costing tens of thousands more.

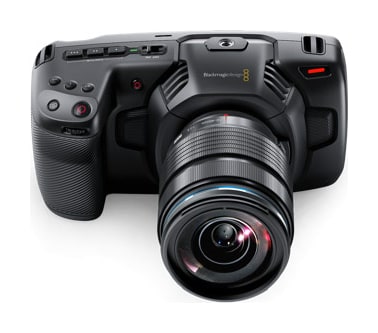

Designed using a space age carbon fiber polycarbonate composite, the body of the Blackmagic Pocket Cinema Camera 4K is extremely strong and light. The carbon composite material consists of a high strength polymer that’s reinforced with carbon fibers. This gives the camera body incredible strength and rigidity to help protect it from accidental knocks and drops which can often result in damage. The handheld design features a multi function grip which has logically placed buttons and dials that allow super fast access to essential shooting functions such as recording start/stop, still photos, ISO, shutter, aperture, white balance, power and more.
Fourth generation Blackmagic Design color science lets customers shoot HDR images in film, video and new extended video modes. The new extended mode combines the latitude of digital film with an optimized video file. This gives customers working on fast turnaround projects an ideal solution for shooting great looking images that don’t need a lot of color correction or post production work.

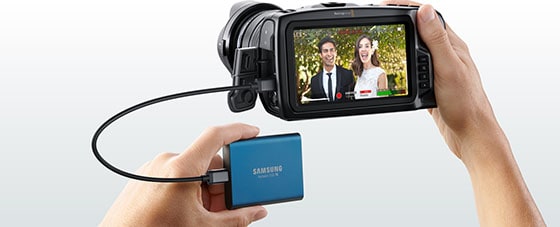

Images can be recorded onto standard SD cards, faster UHS-II cards or CFast 2.0 cards in either ProRes or RAW formats. The Blackmagic Pocket Cinema Camera 4K can record 4K images at up to 60 frames per second and windowed HD at up to 120 frames per second. It’s also the first camera that lets customers record directly onto the same exact external USB-C media drives they use for editing and color correction. That means customers can turn projects around much more quickly because they don’t have to transfer files. All they need to do is unplug the USB-C drive and then connect it to their computer to start editing.

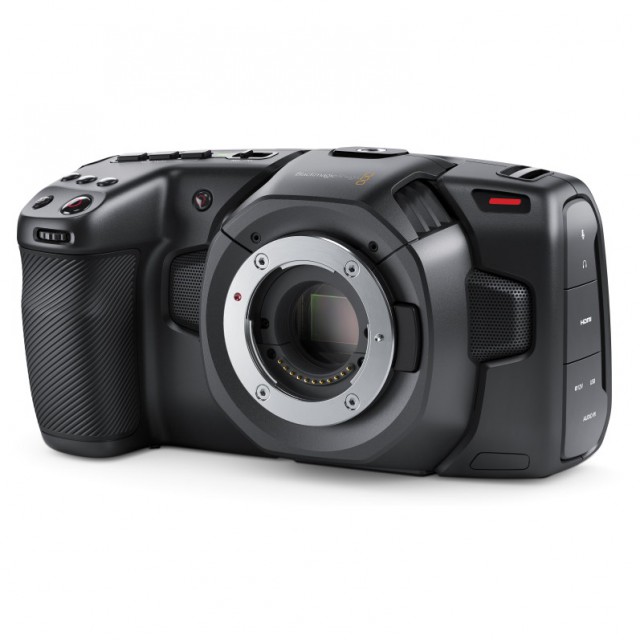

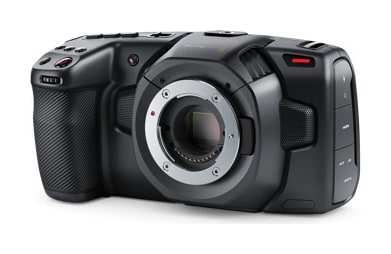

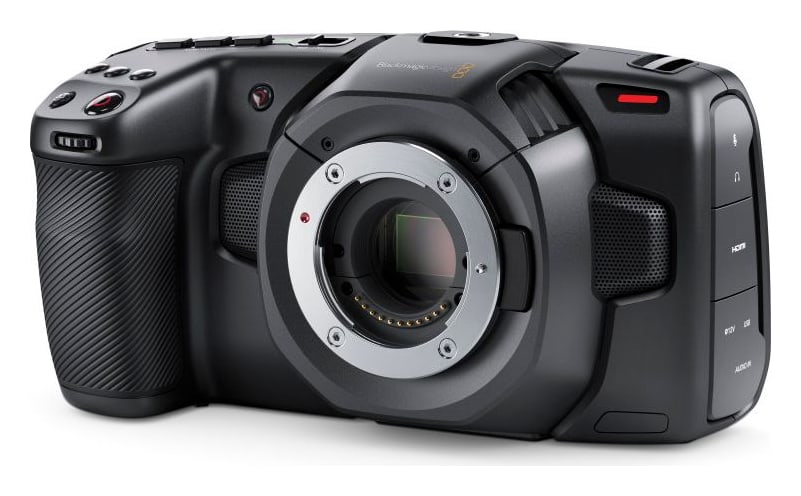

The Blackmagic Pocket Cinema Camera 4K uses the same MFT (Micro Four Thirds) lens mount as the original Pocket Cinema Camera so customers can use the investment in lenses they already own. The MFT mount is extremely flexible and allows for different lens adapters so customers can also use PL, C, EF and other types of lenses from manufacturers such as Canon, Nikon, Pentax, Leica and even Panavision.

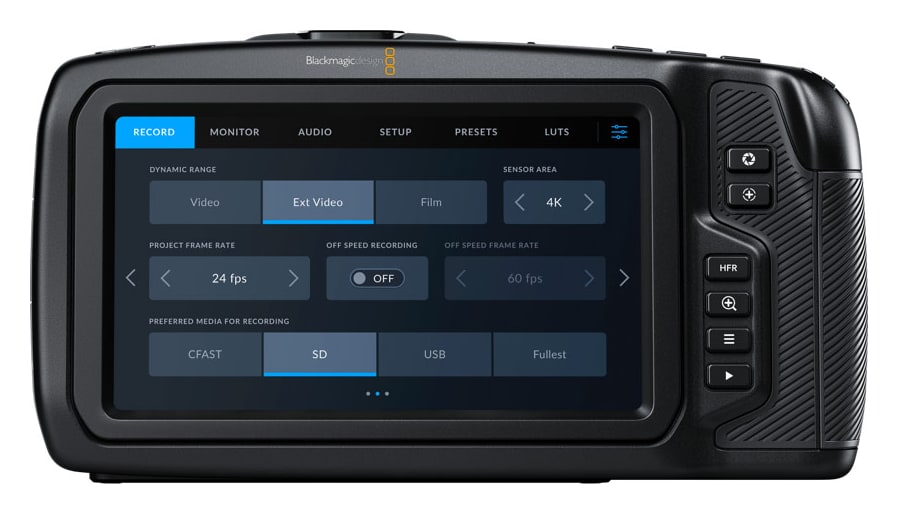

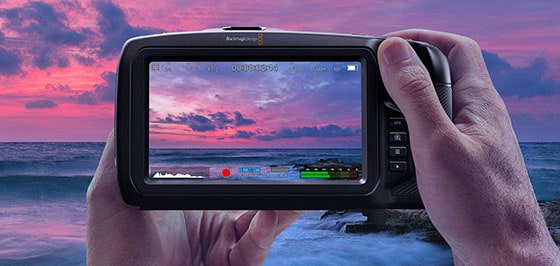

The rear of the camera features a large bright 5 inch touchscreen that makes it easy to frame shots and accurately focus. It also uses the same Blackmagic OS as URSA Mini so customers can use simple tap and swipe gestures to adjust settings, add metadata and view recording status. On screen overlays make it easy to see recording parameters, status, histogram, focus and peaking indicators, and playback controls. In addition, 3D LUTs can be applied for both monitoring and recording.

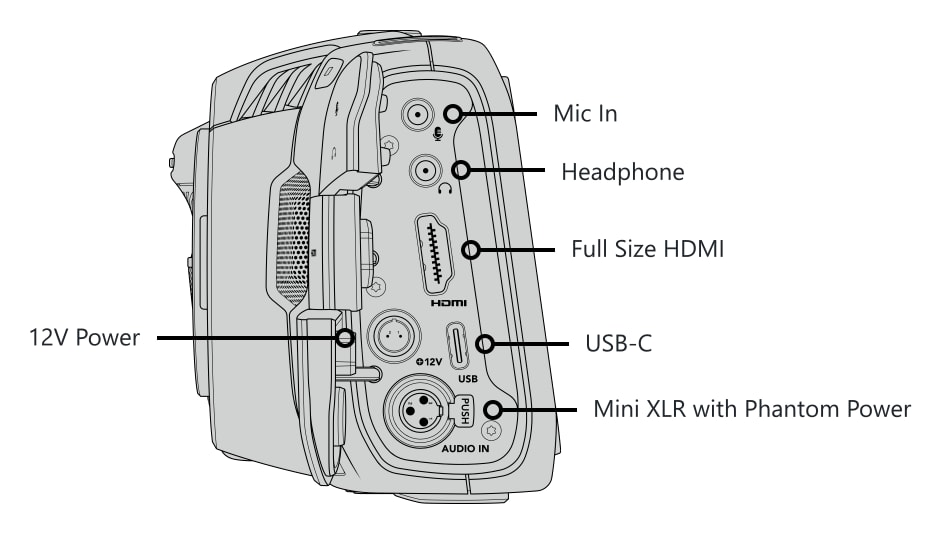

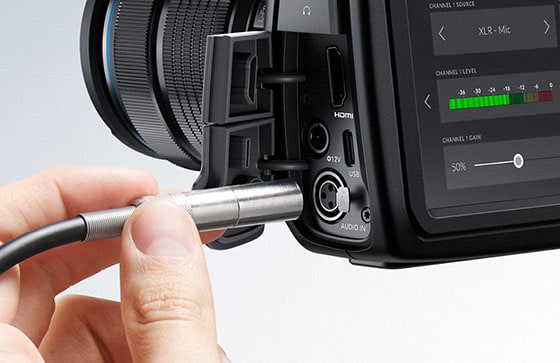

For audio, the Blackmagic Pocket Cinema Camera 4K features multiple built in microphones with an extremely low noise floor, a mini XLR input with 48 volts of phantom power to connect professional lapel and boom mics, and a 3.5mm stereo audio jack for connecting different types of video camera microphones. The high quality built in audio recording means customers don’t have to carry around a separate recorder.

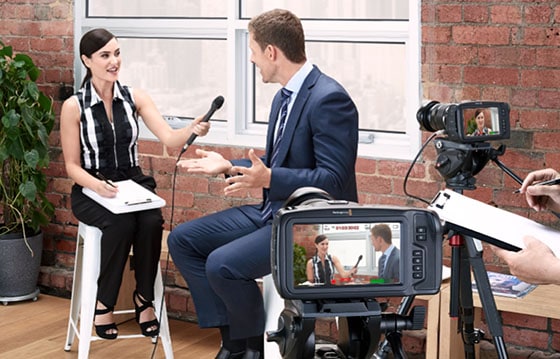

The Blackmagic Pocket Cinema Camera 4K also includes a full size HDMI connector which can output HDR video as well as a clean 10-bit video feed with optional on screen overlays. There’s also an innovative high speed USB-C Expansion Port for adding external accessories such as flash drives and an SSD for external recording. The camera uses standard LP-E6 batteries and can be charged via USB-C or the locking DC power connector, which protects the camera from being accidentally unplugged during a shoot.
Blackmagic Pocket Cinema Camera 4K Features
Manufacturer: | Blackmagic Design |
Category: | Digital Cinema |
Camera Sensor size | 4/3" |
Resolution | 4K (DCI) |
Resolution | UHD |
Resolution | Full HD |
Type of bayonet | MFT |
Output | HDMI |
FPS | HD 120fps |
FPS | 4K 60fps |
Media type | CFast |
Media type | SD card |
Battery type | LP-E |
Other features | HDR |
Other features | Dual ISO |
Native ISO | 25600 |
Blackmagic Pocket Cinema Camera 4K
Lens turret dust cap
30W power supply with locking connector and international adapters
LP‑E6 battery
SD card with software and manual
Welcome card
DaVinci Resolve Studio with activation key
18.96mm x 10mm (Four Thirds)
Active MFT mount.
Iris, focus and zoom on supported lenses.
13 Stops.
400 and 3200
4096 x 2160 (4K DCI) up to 60 fps
4096 x 1720 (4K 2.4:1) up to 75 fps
3840 x 2160 (Ultra HD) up to 60 fps
2880 x 2160 (2.8K Anamorphic) up to 80 fps
2688 x 1512 (2.6K 16:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in 2.6K 16:9 and HD windowed.
Auto focus available using compatible lenses.
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
5” 1920 x 1080.
LCD capacitive touchscreen.
Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

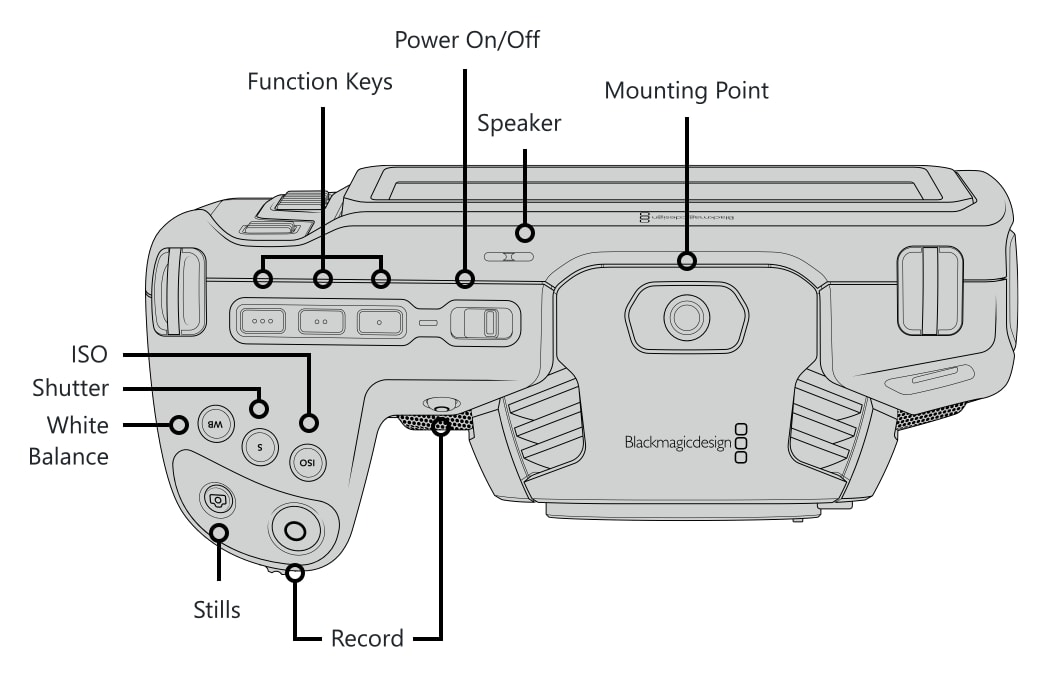

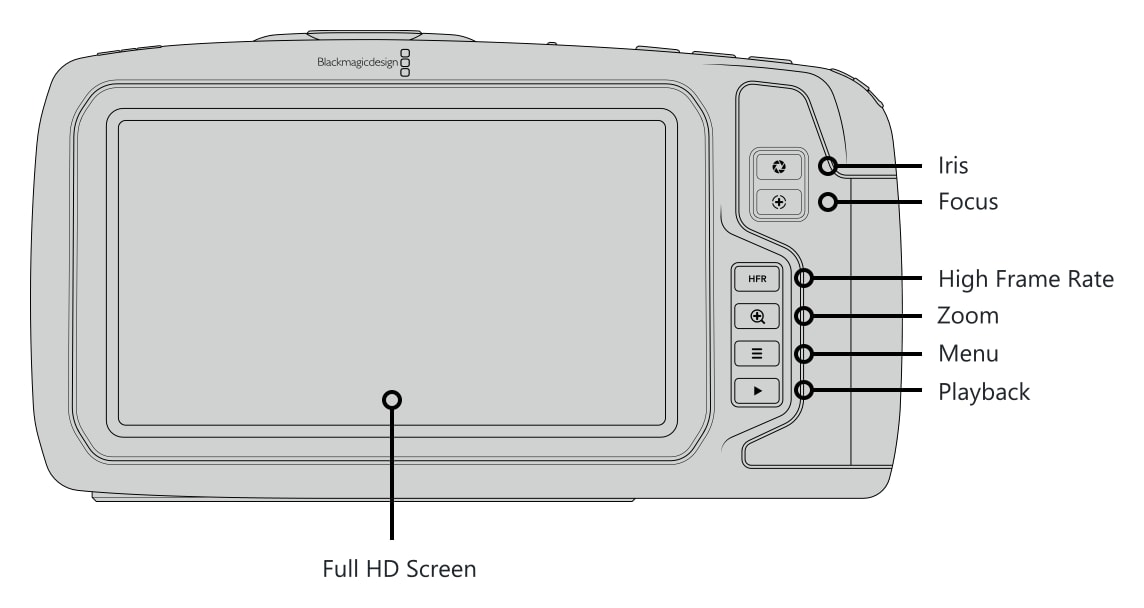

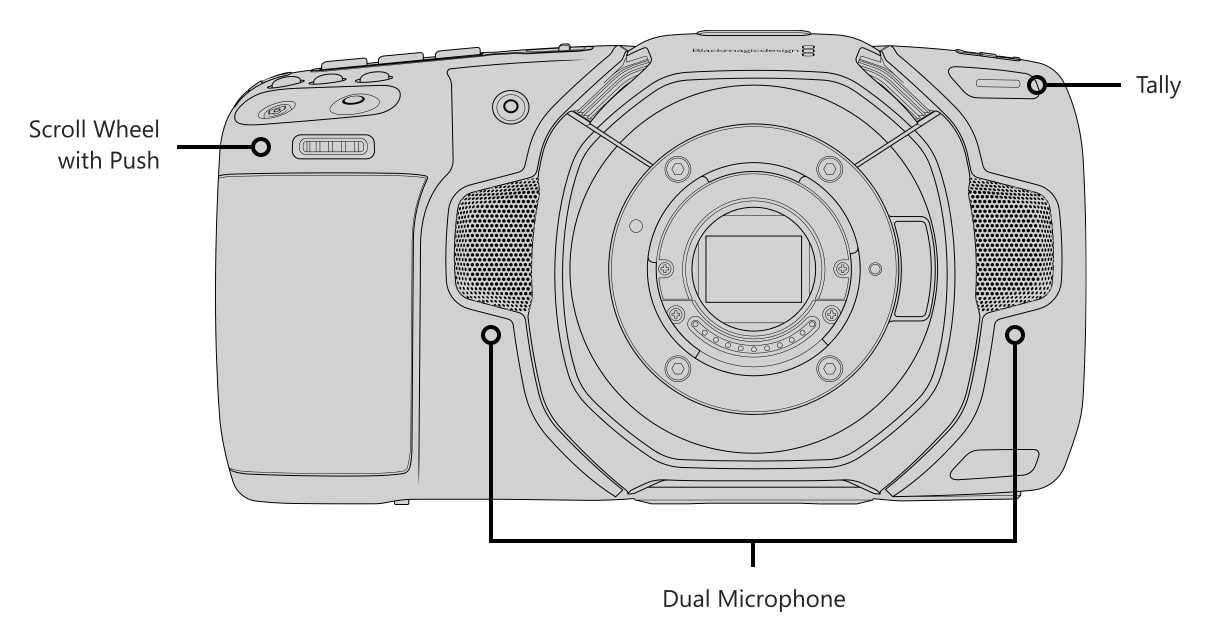

Touchscreen menus on 5 inch screen. 1 x Power Switch,1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
None.
1 x HDMI up to 1080p60
1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
1 x 3.5mm headphone jack.
USB Type-C for external drive recording, PTP camera control and software updates.
Integrated stereo microphone.
1 x mono speaker.
None.
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60.
1 x CFast card slot, 1 x SD UHS-II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
DaVinci YRGB.

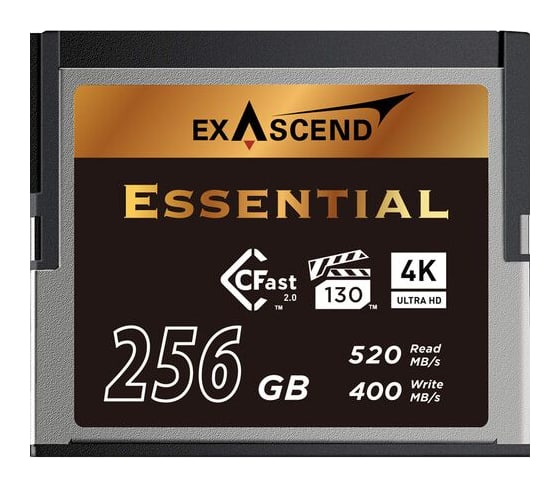

1 x CFast 2.0.
1 x SD UHS-II card.
1 x high speed USB-C expansion port for external media.
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 4096 x 2160, 4096 x 1720, 3840 x 2160, 2880 x 2160, 2688 x 1512 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata.
ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT.
Storage rates based on 30 frames per second.
4096 x 2160
Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 51 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 68 to 163 MB/s
Blackmagic RAW Q3 - 46 to 116 MB/s
Blackmagic RAW Q5 - 28 to 68 MB/s
Apple ProRes 422 HQ - 117.88 MB/s
Apple ProRes 422 - 78.63 MB/s
Apple ProRes 422 LT - 54.63 MB/s
Apple ProRes Proxy - 24.25 MB/s
4096 x 1720
Blackmagic RAW 3:1 - 108 MB/s
Blackmagic RAW 5:1 - 65 MB/s
Blackmagic RAW 8:1 - 41 MB/s
Blackmagic RAW 12:1 - 28 MB/s
Blackmagic RAW Q0 - 81 to 162 MB/s
Blackmagic RAW Q1 - 55 to 130 MB/s
Blackmagic RAW Q3 - 37 to 93 MB/s
Blackmagic RAW Q5 - 22 to 55 MB/s
3840 x 2160
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
2880 x 2160
Blackmagic RAW 3:1 - 96 MB/s
Blackmagic RAW 5:1 - 58 MB/s
Blackmagic RAW 8:1 - 36 MB/s
Blackmagic RAW 12:1 - 25 MB/s
Blackmagic RAW Q0 - 72 to 143 MB/s
Blackmagic RAW Q1 - 48 to 115 MB/s
Blackmagic RAW Q3 - 32 to 82 MB/s
Blackmagic RAW Q5 - 20 to 48 MB/s
2688 x 1512
Blackmagic RAW 3:1 - 63 MB/s
Blackmagic RAW 5:1 - 38 MB/s
Blackmagic RAW 8:1 - 24 MB/s
Blackmagic RAW 12:1 - 16 MB/s
Blackmagic RAW Q0 - 48 to 94 MB/s
Blackmagic RAW Q1 - 32 to 76 MB/s
Blackmagic RAW Q3 - 22 to 54 MB/s
Blackmagic RAW Q5 - 13 to 32 MB/s
1920 x 1080
Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 13 MB/s
Blackmagic RAW 12:1 - 8.4 MB/s
Blackmagic RAW Q0 - 25 to 49 MB/s
Blackmagic RAW Q1 - 17 to 39 MB/s
Blackmagic RAW Q3 - 11 to 28 MB/s
Blackmagic RAW Q5 - 7 to 17 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Blackmagic OS
1 x External 12V power supply.
1 x 2-pin locking connector.

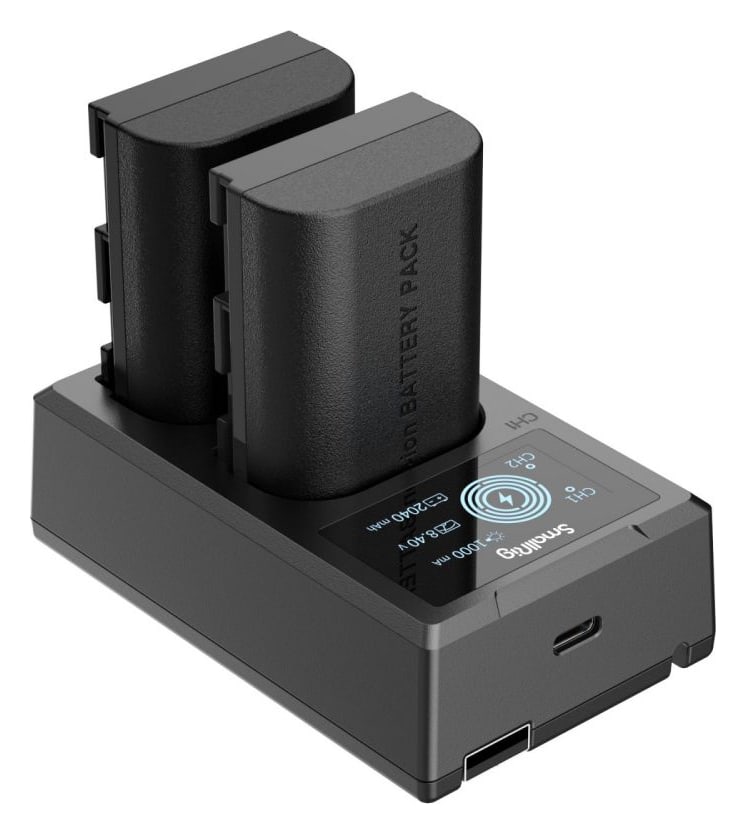

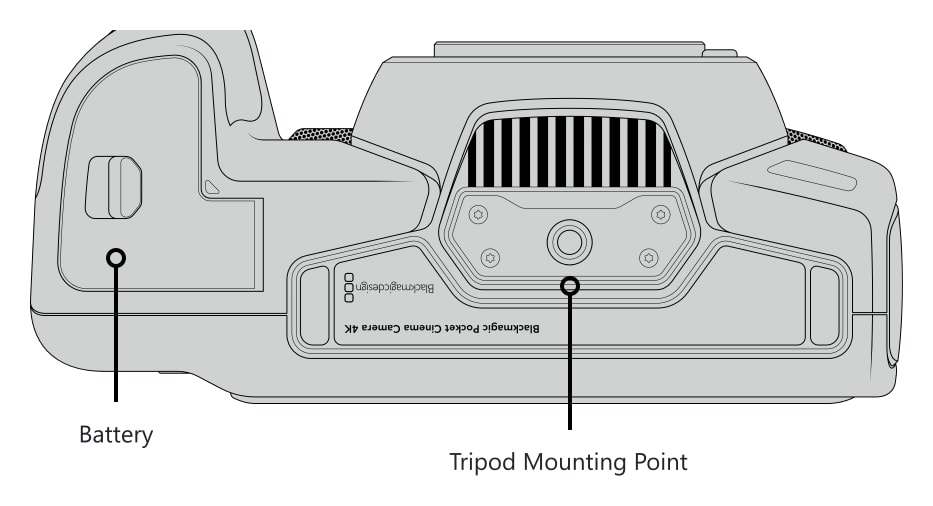

Canon LP-E6.
Approximately 60 minutes
(recording at 24 fps without any external USB-C device connected)
12V-20V

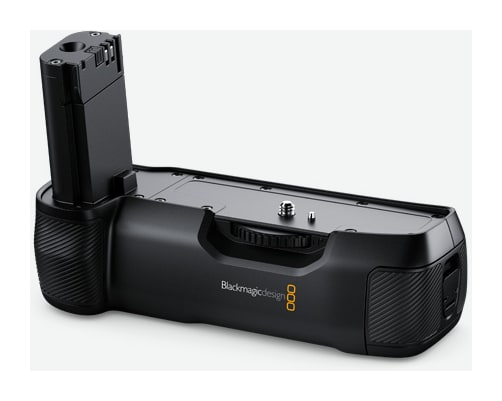

Blackmagic Pocket Camera Battery Grip.
0°to 40°C (32° to 104°F)
-20°to 45°C (-4° to 113°F)
0% to 90% non-condensing
Warranty
12 Month Limited Manufacturer's Warranty.
