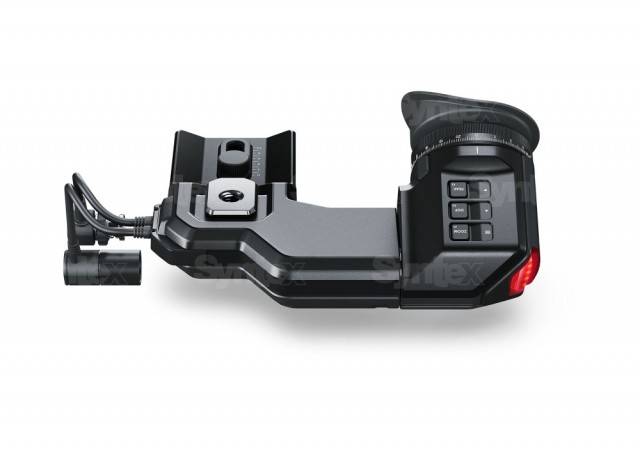

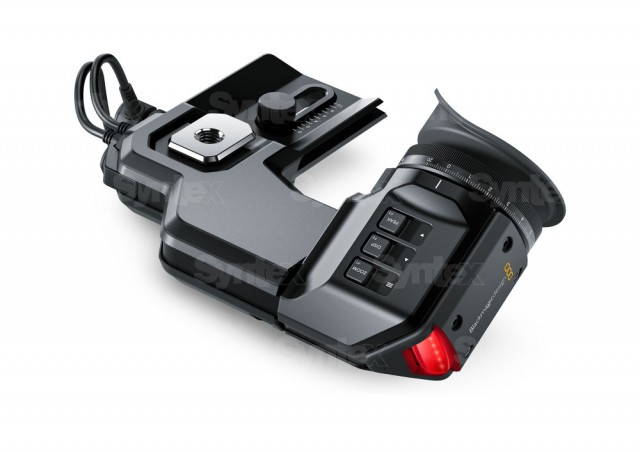

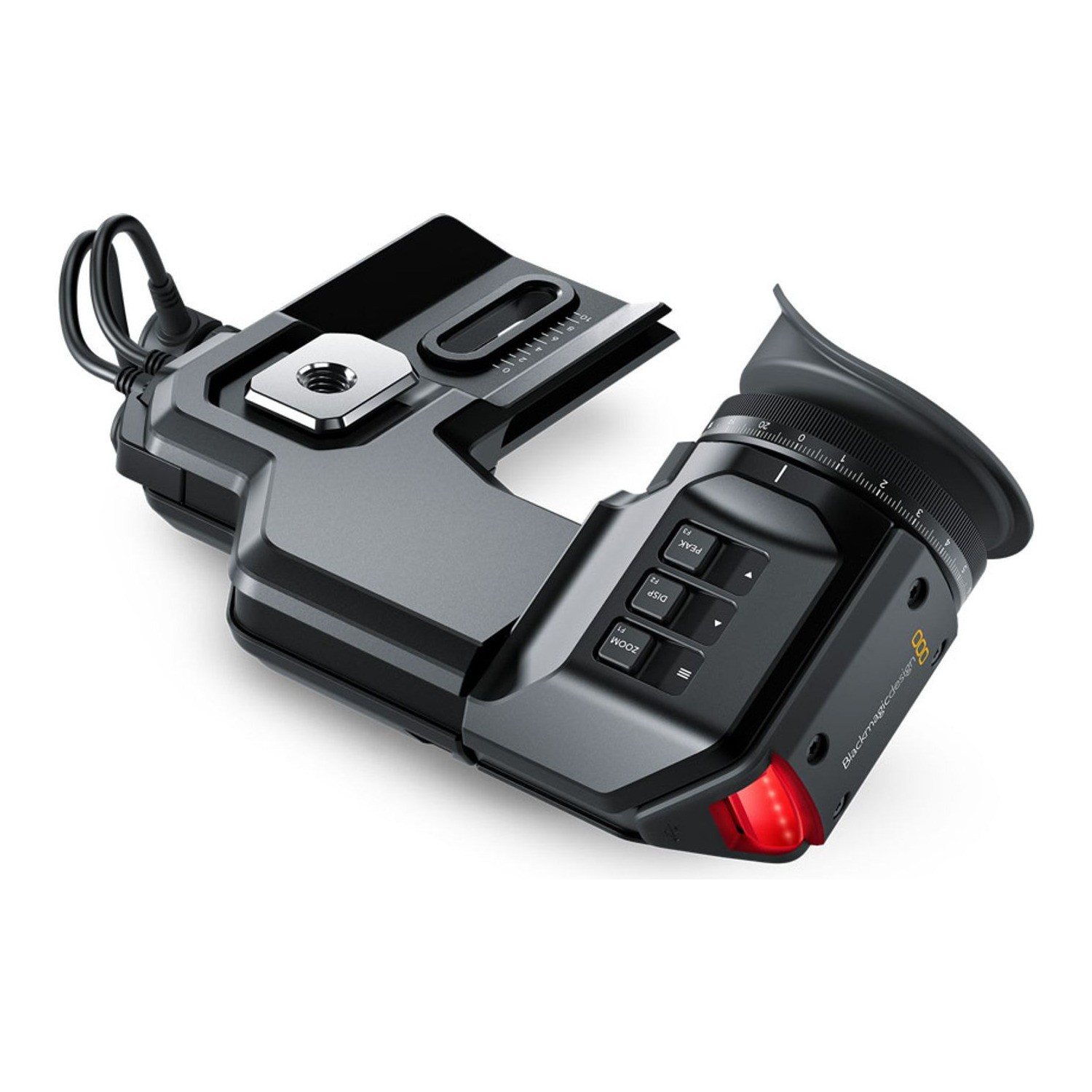

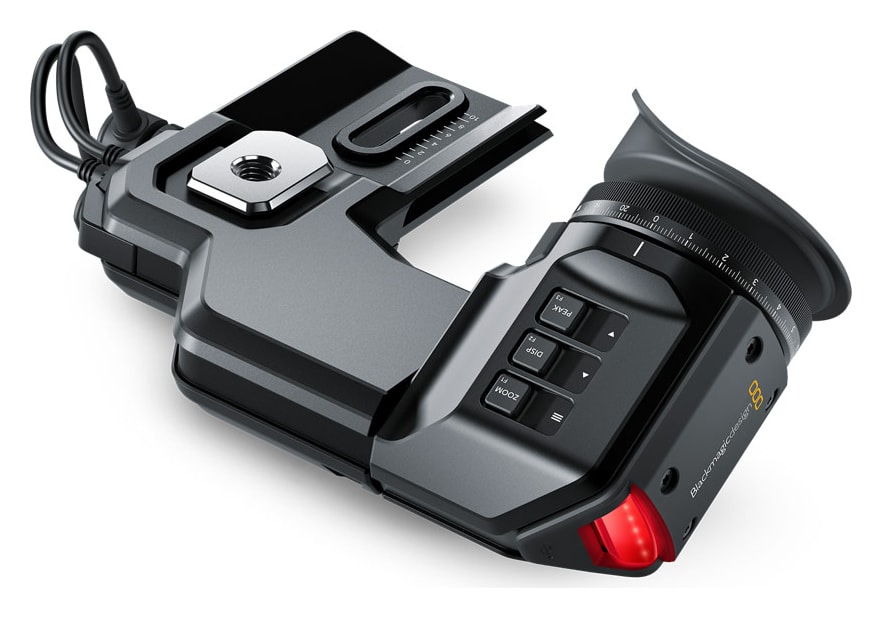

Blackmagic Design URSA Viewfinder

Connections
SDI Video Inputs
1 x 3G-SDI BNC.

Power Input
1 x 4 pin XLR 12V.

Computer Interface
USB 2.0 Mini-B port for software updates.

Features
Display Resolution
Full 1920 x 1080.

Frame Rate
Up to 60fps

Display Type
OLED

Display Pixels
6.22 Million Pixels

Color Precision
24 bit RGB, 16.7 million colors

Focus
4 Element diopter.

Diopter Range
-4 to +3

Controls
Buttons for settings, short cut features and navigating menus.

Overlays
Built in overlay display processor and top mounted buttons.

Eyepiece
Can be tilted vertically and extended for left or right eye use.

Tally
LED tally light.

Mounting Options
Camera mount with adjustment.

Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.

Operating Systems

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows 8.1 and 10.

Power Requirements
12V power input via 4 pin XLR connected via 12v power output.

Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)

Storage Temperature
-20° to 60° C (-4° to 140° F)

Relative Humidity
0% to 90% non-condensing

What's Included
Blackmagic URSA Viewfinder

3/8 inch viewfinder mounting thumb screw for URSA

Recommended Accessories
Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.

Warranty
12 Month Limited Manufacturer’s Warranty.
