Blackmagic Design URSA Cine Immersive

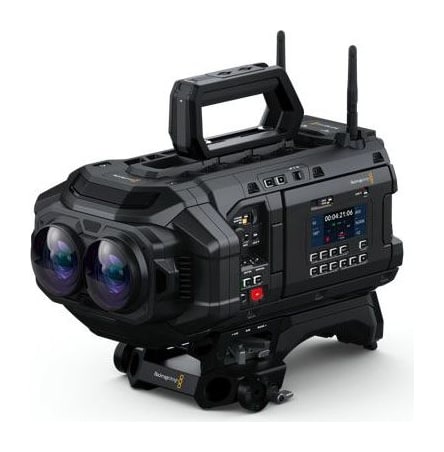

Blackmagic URSA Cine Immersive is the world’s first commercial camera system designed to capture Apple Immersive Video. Apple Immersive Video is a brand-new storytelling format that leverages 8K, 3D video with a 180-degree field of view, and Spatial Audio to transport viewers to the center of the action. Available late 2024.

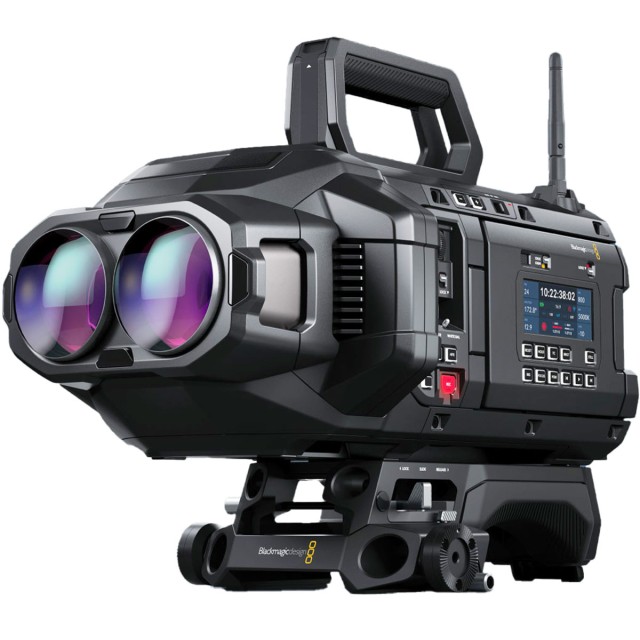

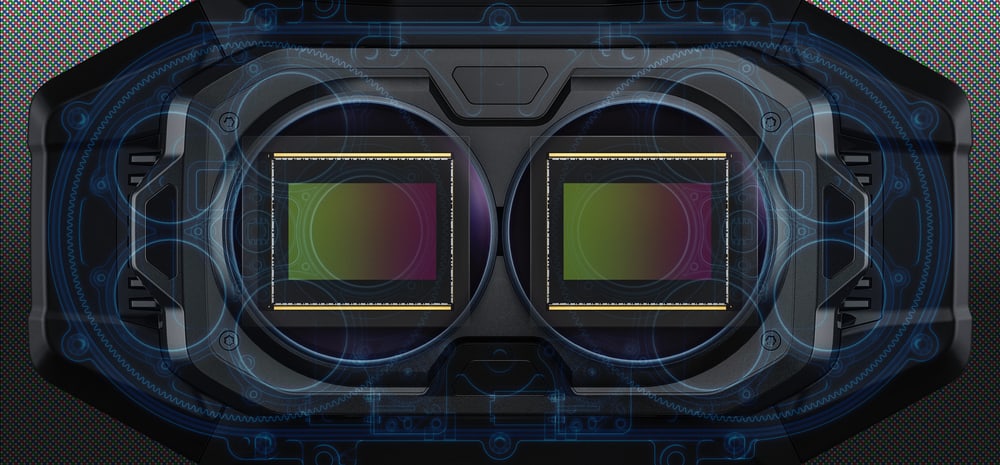

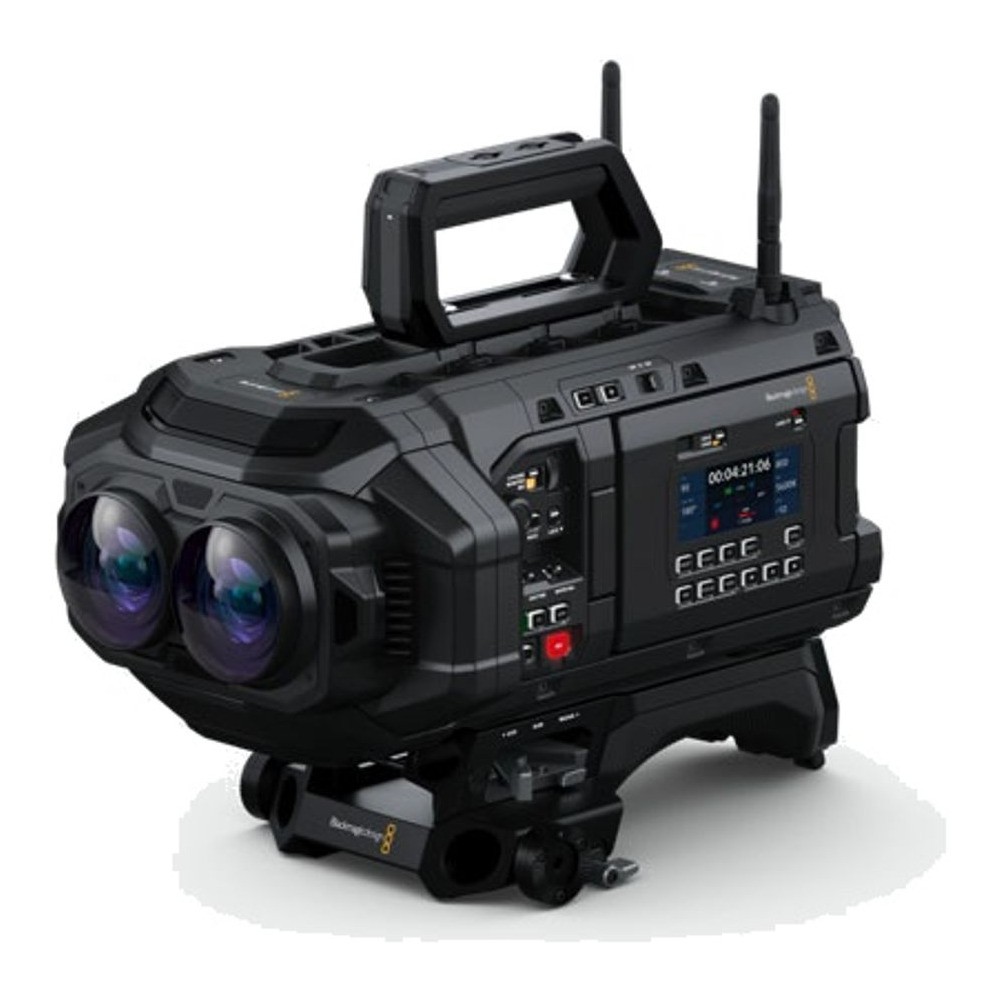

Blackmagic URSA Cine Immersive features a fixed, custom lens system pre-installed on the body, which is designed specifically for Apple Immersive Video. The sensor delivers 8160 x 7200 resolution per eye with pixel level synchronization and an incredible 16 stops of dynamic range, so cinematographers can shoot 90fps stereoscopic 3D immersive cinema content to a single file. The custom lens system is designed specifically for URSA Cine’s large format image sensor with extremely accurate positional data that’s read and stored at time of manufacturing. This immersive lens data — which is mapped, calibrated and stored per eye — then travels through post production in the Blackmagic RAW file itself.

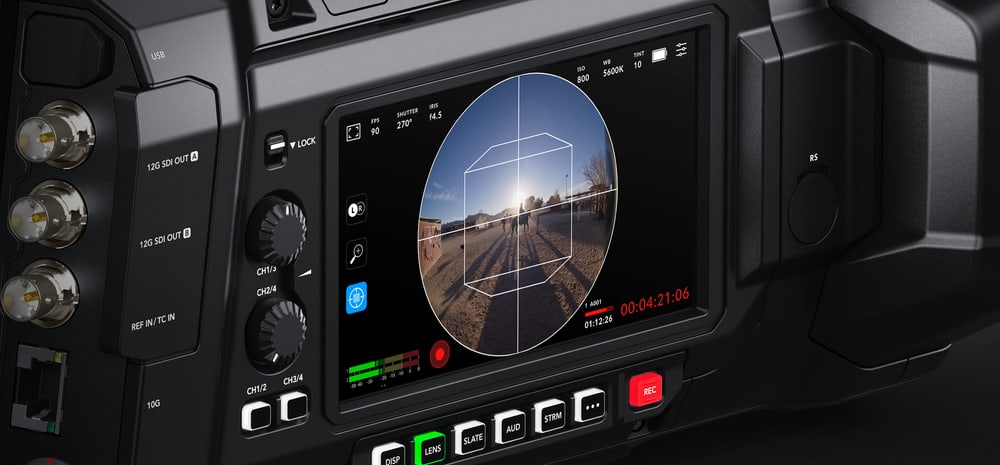

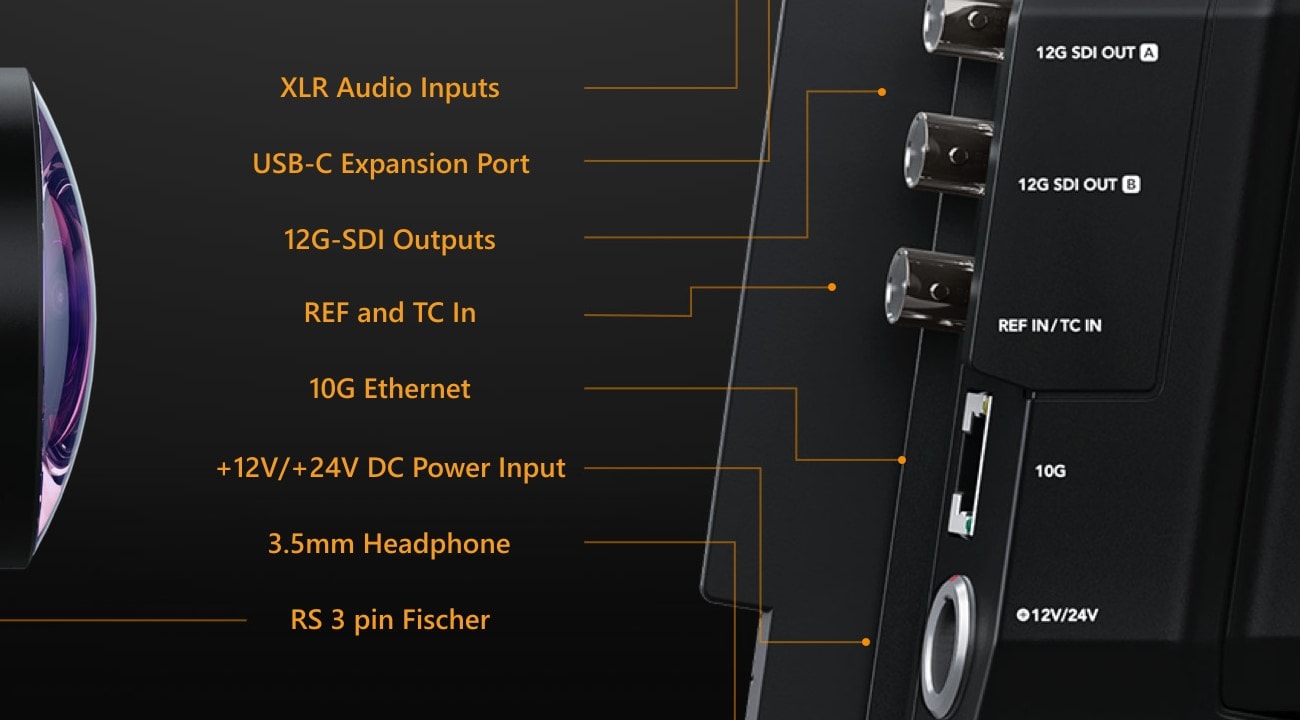

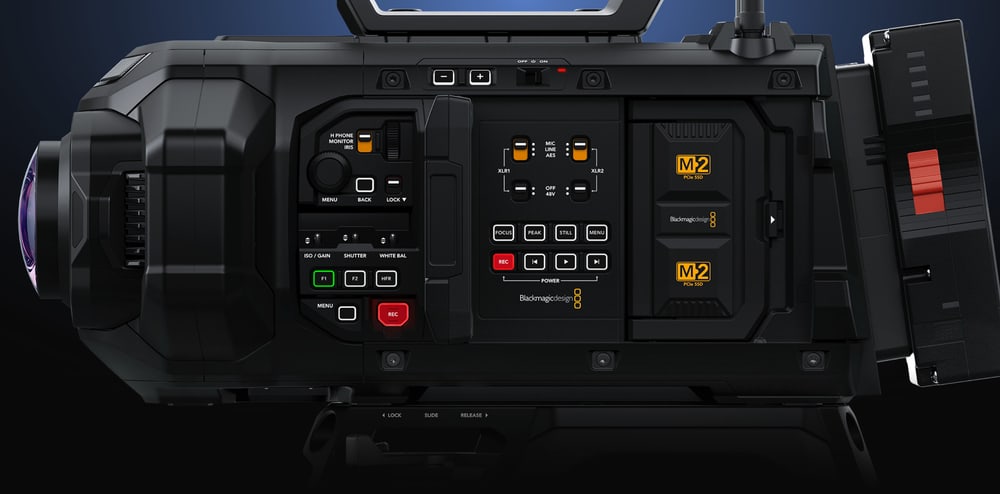

The evenly weighted camera body is built with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin to help filmmakers move quickly on set. Customers also get 12G‑SDI out, 10G Ethernet, USB-C, XLR audio, and more. The fold out monitor has a large 5″ HDR touchscreen on one side and an external color status LCD on the other. The right side of the camera features a dedicated assist station with a second 5″ HDR touchscreen that allows crew to work around the camera without needing external monitors.

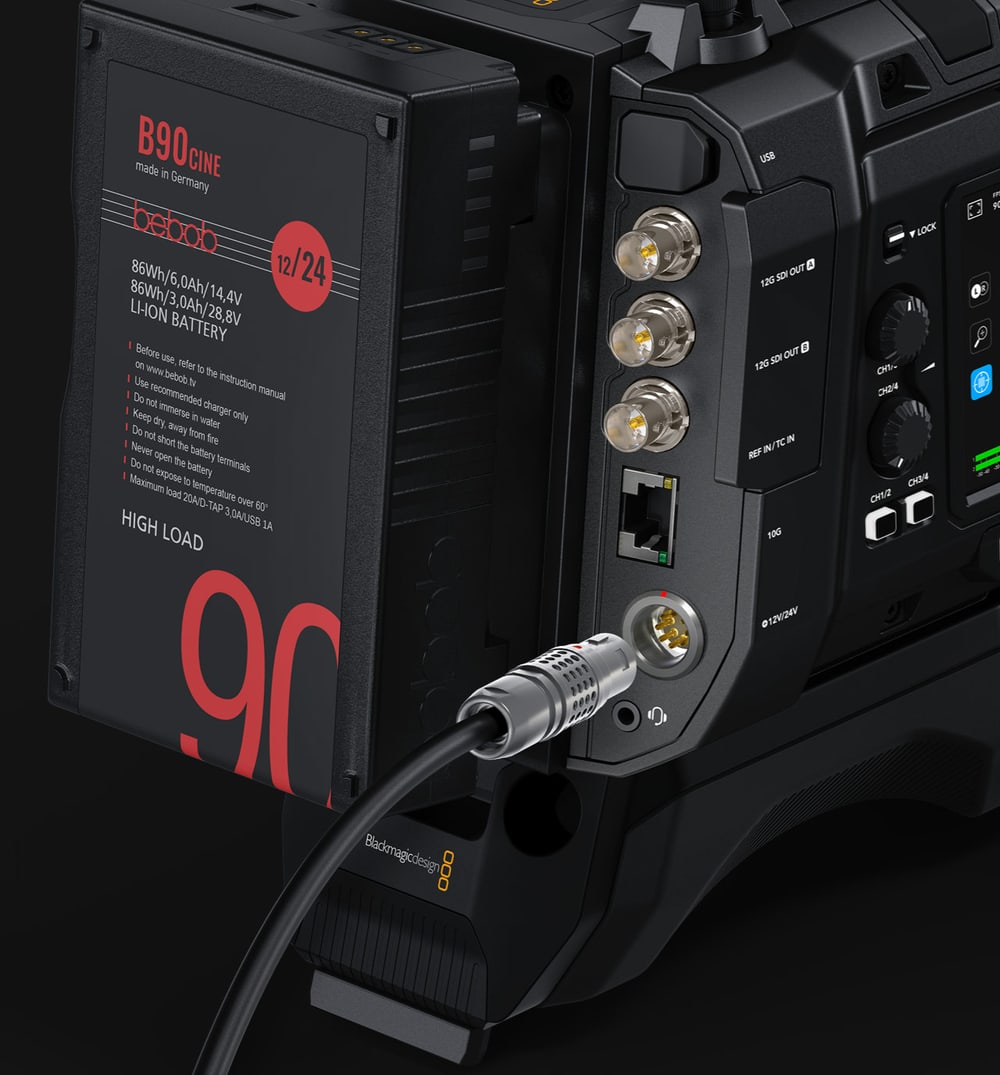

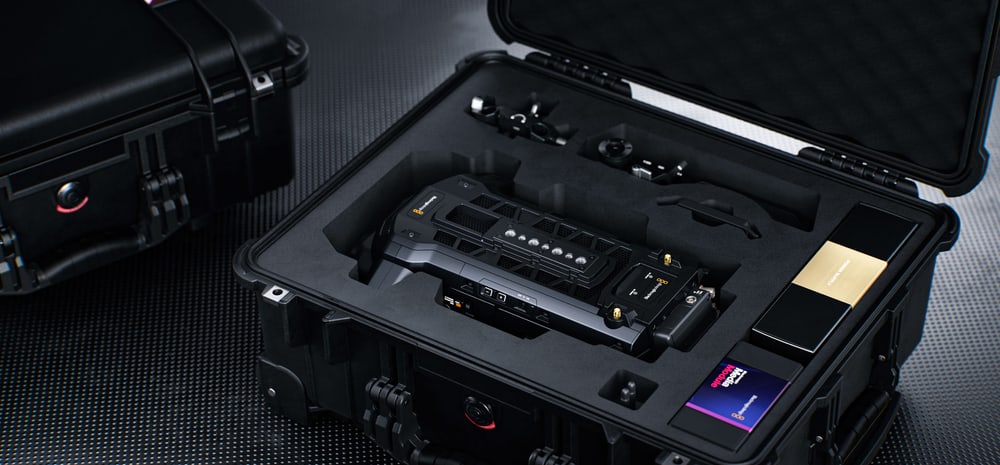

An 8-pin Lemo power connector at the back of the camera works with 24V and 12V power supplies, making it easy to use the camera with existing power supplies, batteries, and accessories. Blackmagic URSA Cine Immersive comes with a massive 250W power supply and B mount battery plate, so customers can use a wide range of high voltage batteries from manufacturers such as IDX, Blueshape, Core SWX, BEBOB, and more. Customers will also receive a top handle, antennas for high speed Wi-Fi, baseplate, 24V power supply and high voltage B mount battery plate for quick set up.

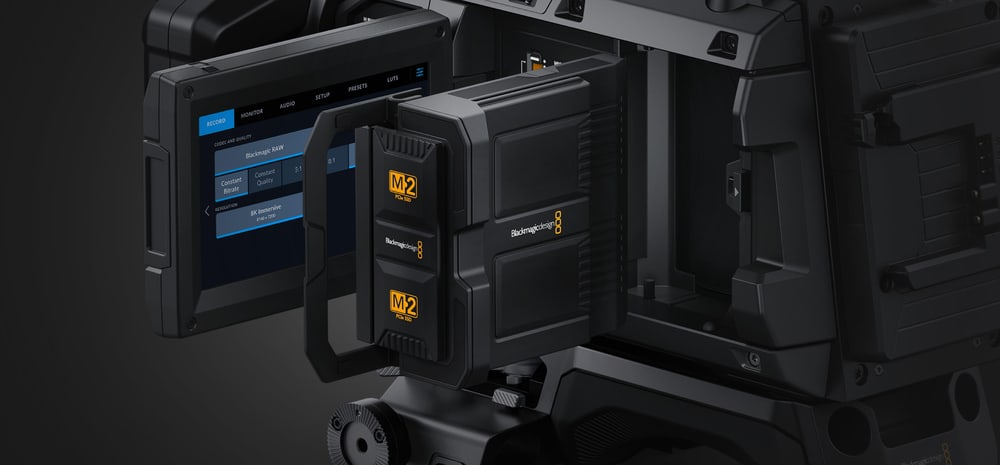

Blackmagic URSA Cine Immersive comes with 8TB of high performance network storage built in, which records directly to the included Blackmagic Media Module, and can be synced to Blackmagic Cloud and DaVinci Resolve media bins in real time. This means customers can capture over 2 hours of Blackmagic RAW in 8K stereoscopic 3D immersive, and editors can work on shots from remote locations worldwide as the shoot is happening.

The new Blackmagic RAW Immersive file format is designed to make it simple and easy to work with immersive video within the whole post production workflow, and includes support for Blackmagic global media sync. Blackmagic RAW files store camera metadata, lens data, white balance, digital slate information and custom LUTs to ensure consistency of image on set and through post production.

Blackmagic URSA Cine Immersive is the first commercial, digital film camera with ultra fast high capability Cloud Store technology built in. The high speed storage lets customers record at the highest resolutions and frame rates for hours and access their files directly over high speed 10G Ethernet. The camera also supports creating a small H.264 proxy file, in addition to the camera original media when recording. This means the small proxy file can be uploaded to Blackmagic Cloud in seconds, so media is available back at the studio in real time.

Blackmagic Media Dock accelerates post production workflow by making it faster and simpler to start editing and performing color correction. Customers can mount up to three Blackmagic Media Modules for high speed access to media from multiple URSA Cine Immersive cameras all at the same time. The four high speed 10G Ethernet ports allow up to four separate edit workstations to connect directly and is extremely fast, even when a lot of users are connected at the same time.

Blackmagic URSA Cine Immersive Features

• Dual custom lens system for shooting Apple Immersive Video for Apple Vision Pro.
• 8K stereoscopic 3D immersive image capture.
• 8160 x 7200 resolution per eye with pixel level synchronization.
• Massive 16 stops of dynamic range.
• Lightweight, robust camera body with industry standard connections.
• Generation 5 Color Science with new film curve.
• Dual 90 fps capture to a single Blackmagic RAW file.
• Includes high performance Blackmagic Media Module 8TB for recording.

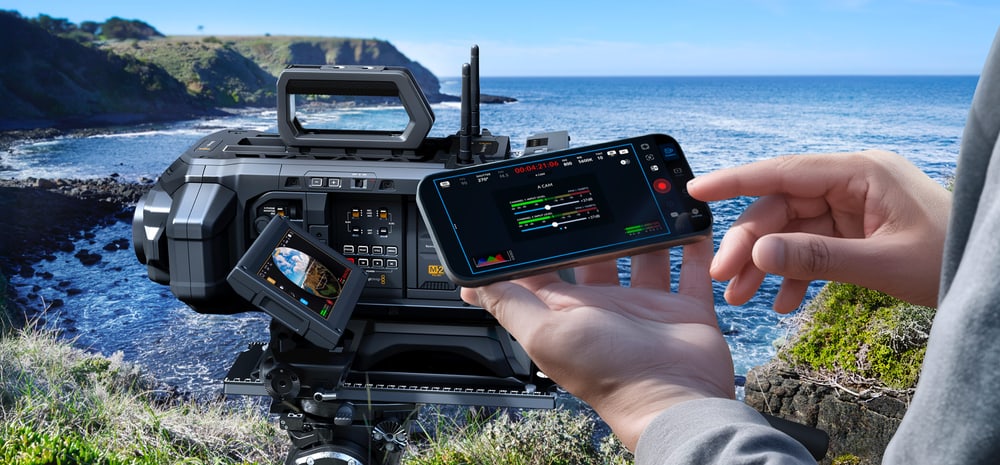

• High speed Wi-Fi, 10G Ethernet or mobile data for network connections.
• Optional Blackmagic URSA Cine EVF.
• Includes DaVinci Resolve Studio for post production.

DaVinci Resolve Immersive Features

• Support for monitoring on Apple Vision Pro from the DaVinci Resolve timeline.
• Ability to edit Blackmagic RAW Immersive video shot on Blackmagic URSA Cine Immersive.
• Immersive video viewer for pan, tilt and roll.
• Automatic recognition of Apple Immersive Video (left and right eye) for dual file stereo immersive content.
• Option to bypass transitions rendered by Apple Vision Pro.
• Export and deliver native files for viewing on Apple Vision Pro.
