Camera Cage for Sony BURANO Advanced Kit - V Mount
-12 %
Free transport
Black Friday
SKU: ESR-T18-C-V

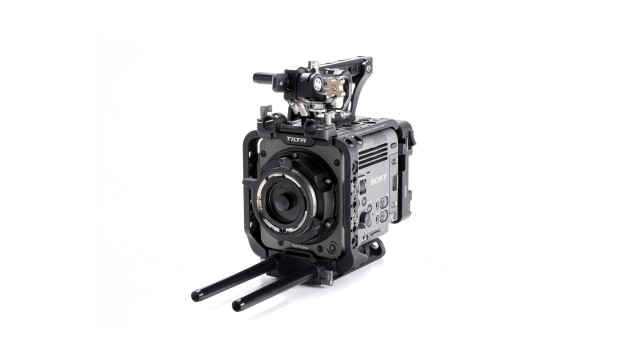

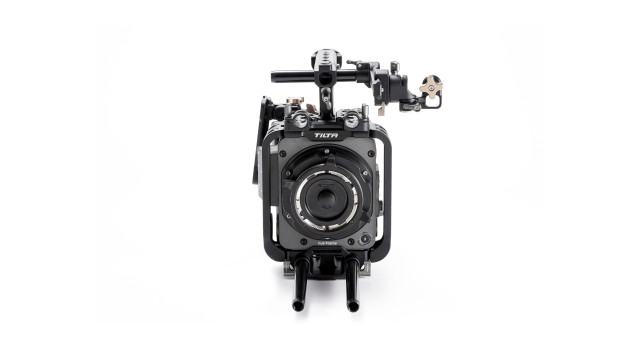

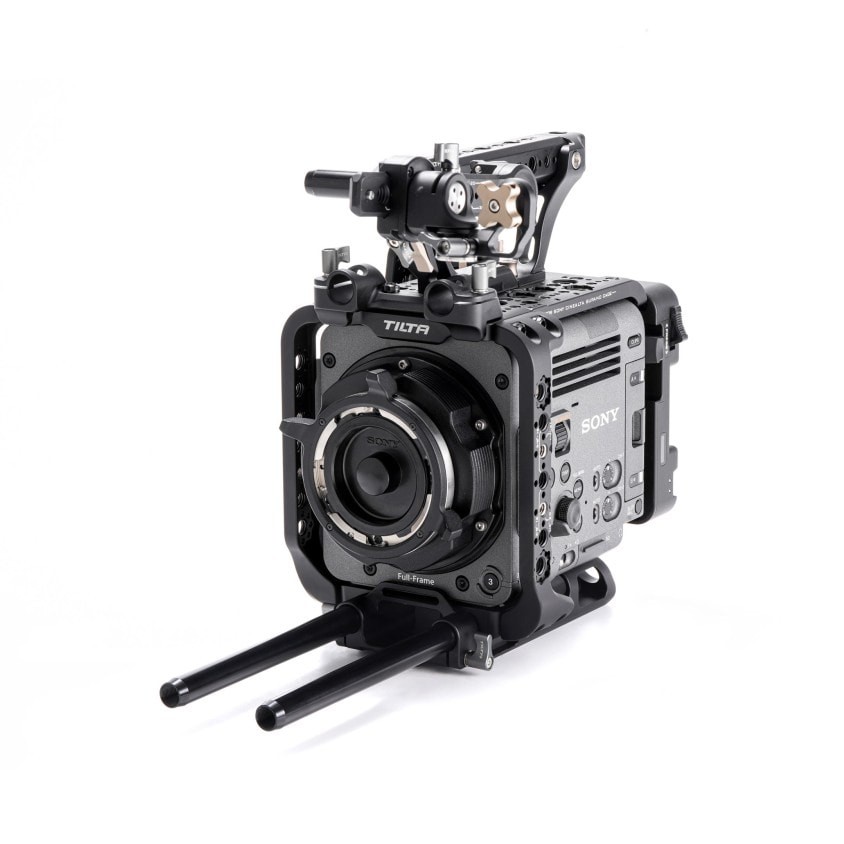

The foundation of this kit is the Full Camera Cage, which provides protective armor for the camera body and accommodates mounting various accessories to improve the camera’s functionality. This Camera Cage features a variety of mounting points including Arri Rosettes, 15mm rod holders, 1/4″-20 threads and 3/8″-16 threads, both with locating points.
The foundation of this kit is the Full Camera Cage, which provides protective armor for the camera body and accommodates mounting various accessories to improve the camera’s functionality. This Camera Cage features a variety of mounting points including Arri Rosettes, 15mm rod holders, 1/4″-20 threads and 3/8″-16 threads, both with locating points.
Features
Modular Design, Lightweight And User Friendly
The camera cage is constructed with 7000 series high functioning aluminum alloy to ensure it is lightweight and durable. The system has a 15mm baseplate, top plate, side arms, 15mm rod holders, and a side mounting plate.
New Rod Holder Design, Mounts To The Top And Side Of The Camera Cage. Flexible Assembly
The 15mm rod holder can be mounted onto the camera cage’s top and side arms. It provides flexible options for lens control motors, as well as vertical camera setups and lens supports.
Features Arri Standard Rosettes With Identical Mounting Positions
The camera cage has built-in Arri Standard rosettes with mounting positions identical to the original camera design. Compatible with the original control handle.
New Adjustable Side Mounting Plate
The full camera cage has a side mounting plate that supports height and angle adjustments. Multiple mounting points on the top plate help extend this mounting plate’s functionality.
Rotatable EVF Bracket
Supports vertical and horizontal adjustments via two articulating points, equipped with a damping feature to prevent the mount from dropping when loose.
[CUSTOM DESIGNED] for the Sony Burano 8K Digital Cinema Camera
[MOUNTING POINTS] Include Arri Standard Rosettes, 1/4"-20 and 3/8"-16 Threads, Both with Locating Points
[BATTERY PLATE] Supports Gold or V-Mount Batteries and Features Expanded Power Output Options
[15MM BASEPLATE] Supports 15mm LWS Rods and Accessories like Matte Boxes and Follow Focus Systems
[EVF BRACKET] Offers Greater Flexibility for Tilting and Rotating the Camera's EVF

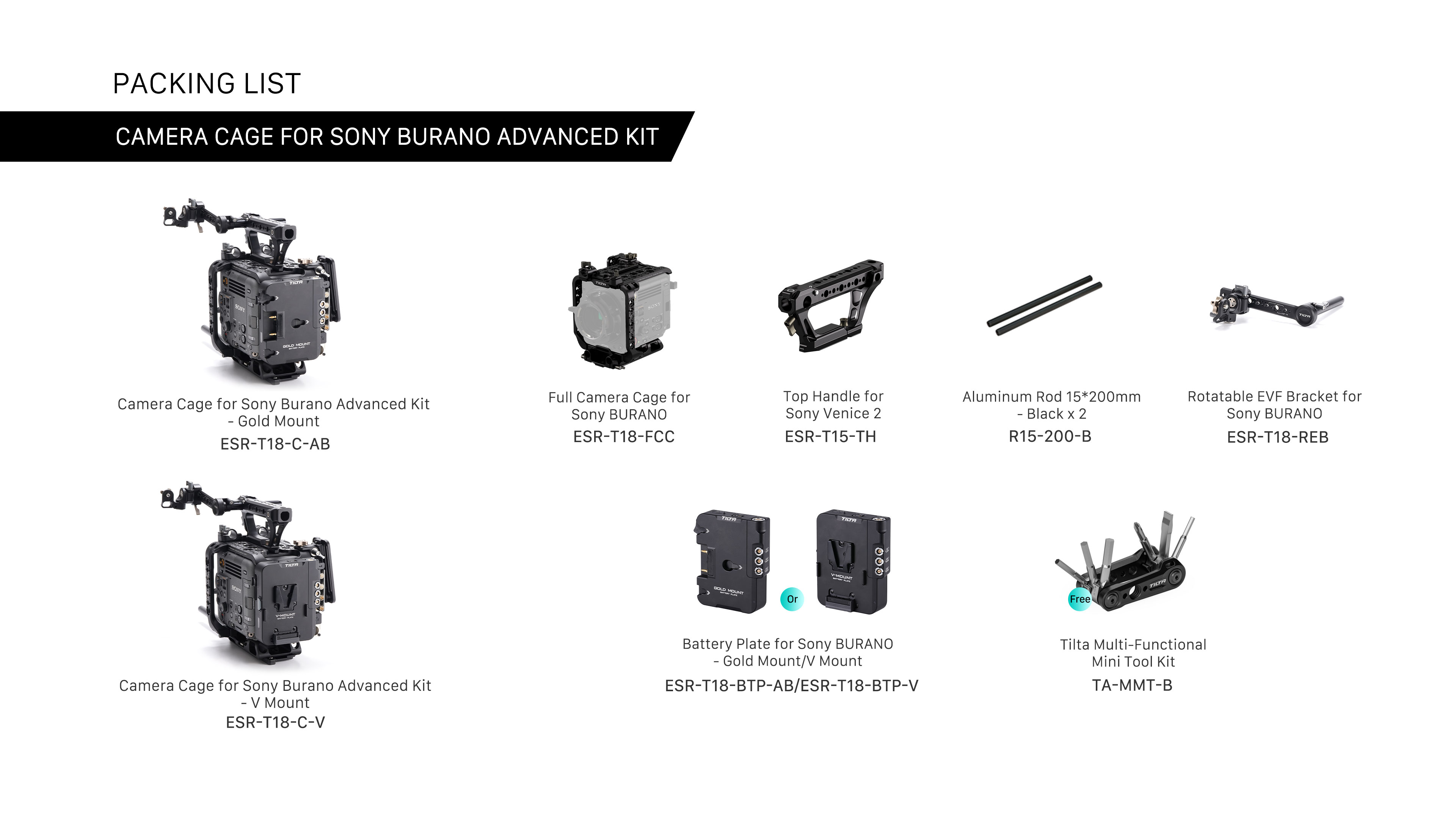

Introducing the Pro Camera Cage Kit for Sony BURANO
The foundation of this kit is the Full Camera Cage, which provides protective armor for the camera body and accommodates mounting various accessories to improve the camera’s functionality.
This Camera Cage features a variety of mounting points including Arri Rosettes, 15mm rod holders, 1/4″-20 threads and 3/8″-16 threads, both with locating points.
The Arri Standard Rosettes are positioned to be identical to the ones on the original camera body and are compatible with the original control handle.
The 15mm rod holder can be mounted onto the top plate or the side arms which provides flexible options for lens control motors, as well as lens supports, and vertical camera setups.
The included 15mm LWS Baseplate and Dual 15mm Rods adds allows users to mount rod based accessories such as matte boxes and follow focus systems while the bottom of this baseplate connects to our Tilta Dovetails and features 1/4″-20 and 3/8″-16 threads.
This cage also includes a side mounting plate that supports height and angle adjustments which can be secured to multiple mounting points on the top plate to help extend this plate’s functionality.
The Top Plate also features a dedicated slot for the included Top Handle which is also compatible with the camera’s original Top Handle. The included Top Handle offers various mounting points and improves options for handling the system.
The 15mm Rod Mount offers a convenient way to mount the included Rotatable EVF Bracket which allows greater flexibility for tilting and rotating the camera’s Electronic Viewfinder.

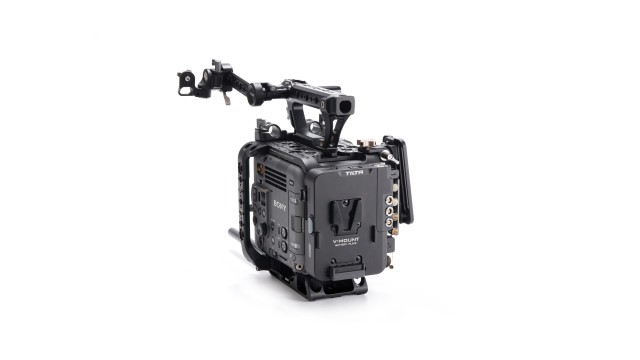

The included Battery Plate adapts the Burano’s V-Mount Battery Plate to either a Gold Mount or V-Mount Battery Plate with additional power outputs.
This Battery Plate includes the following power outputs:
(1) 6-Pin LEMO DC Input (12V-28V) (1) P-Tap Port (14.8V 3.8A) (1) USB-C Port ( PD3.1 65W ) (1) 3-Pin Fischer Lemo (24V 3 A) (1) 3-Pin Fischer Lemo (14.8V 3.8 A) (1) 2-Pin Lemo (14.8V 3 A)
Also included is the Multi-Functional Mini Tool Kit, a compact, durable, and versatile tool set designed for camera cages and support systems, featuring six universal tools.
