Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk
SKU: CNRL55CUHD

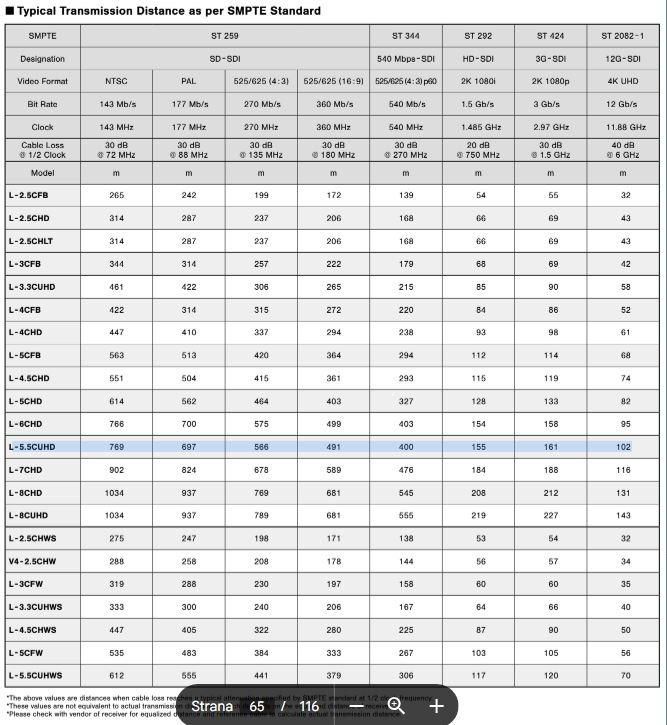

Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.
3.4 € with VAT
2.81 € without VAT
Personal pickup: 27. 12. from 09:00
Shipment day: 27. 12.
Shipment day: 27. 12.
In stock 569 m
Praha 569 m, Bratislava 870 m
Praha 569 m, Bratislava 870 m
Top accessories for Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk
Canare 12G-SDI BCP-D Series BNC Crimp Plug (BCP-D55UHD)
Special low attenuation connector for 12G-SDI L-5.5CUHD cabling. Requires TCD-55UHD
5 €
Backordered > 5 pcs
Blackmagic Design DeckLink 8K Pro G2
The G2 variant of the DeckLink 8K Pro card also features an expansion card with HDMI
849 €
Backordered 5 pcs
Canare TCD-55UHD crimp die
Canare TCD-55UHD Die Set for the Canare L-5.5CUHD and A/V Combo Series Crimp Plugs
352 €
Backordered 1 pcs
Product description
Product description
Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.

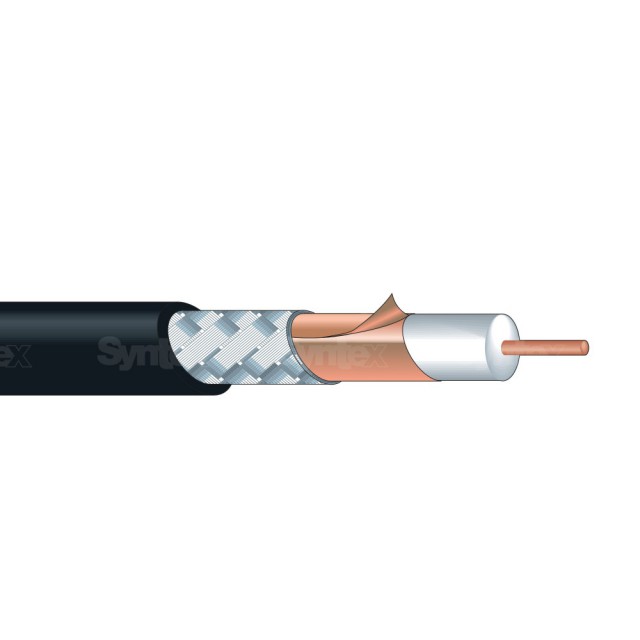

Canare L-5.5CUHDis a12G-SDI75 ohm digital video coaxial cable from our high-end " Ultra Coax" series with an outer diameter of 7.7 mm.Price per standard meter
Usage:
- compliant with ST 2082-1, SMPTE 424M, 259M and 292M specifications
- HDTV
- 12G-SDI, 3G-SDI, HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Specifications:
- Standard manufactured lengths:100/200/500/1000m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 7.1
- Total diameter of central conductor in mm: 1.35 (wire)
- Foam dielectric - diameter in mm: 5.55
- Resistance of central conductor in Ω/100m: 1.3
- Resistance of outer conductor in Ω/100m:1,0
- Static capacitance in pF/m:52
- Attenuation in dB/100m at 12G-SDI 11.88Gbps: 39.1
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | Video cables |
Main parameters
| Cable type | 12G SDI |
| Version | Installation |
| Shielding | Braid / Al foil |
| Core / Conductor | Wire |
| Cable diameter | 7.7mm |
| Colour | Black |
Other parameters
| Other | 4K UHD |
