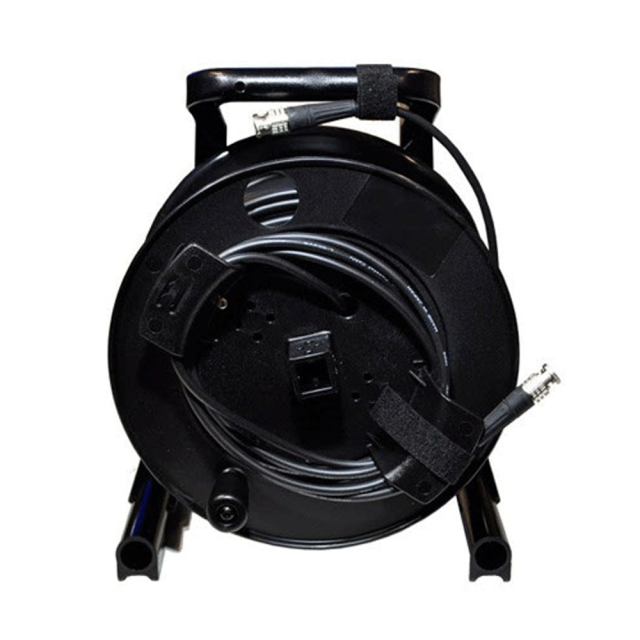

Canare 3G/HD-SDI cable on reel with cable holder 60m

snCanare L-4.5CHWS BNC (M-samec) / BNC (M-samec) is a "Low Loss" flexible and durable 75 ohm HD/SD-SDI coaxial cable, 7.2 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. 30-40 m long cables are wound on Schill GT 235.RM drum, 50-80 m long cables are wound on larger Schill GT 310.RM drum

Due to its great flexibility, it is ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and "High-density" double braided shielding with high density and thick foam insulation.

Canare L-4.5CHWS Cable Features:

• compliant with SMPTE 424M & 292M specification
• HDTV
• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Canare L-4.5CHWS cable parameters:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm:7.2
• Cable weight in kg/100m: 6.6
• Central conductor - number and diameter of cable cores in mm: 7/0,34
• Total diameter of central conductor in mm: 1,02
• Foam dielectric - diameter in mm: 4,57
• Resistance of central conductor in Ω/100m:3,3
• Resistance of outer conductor in Ω/100m:0,8
• Temperature range: -30°C ~ +60°C
• Static capacitance in pF/m:53
• Attenuation in dB/100m at 750MHz: 22.8

BCP-B45HW connector features:

• True 75 ohm design with crimp pin and sleeve
• High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
• Extended body for better handling
• Position mark on the body allows the connector to be easily inspected.
• Excellent cable grip
• Gold plated central pin
• Connector body is "die-cast" - achieving lower cost at high performance
• Easy assembly using the Canare crimp tool

BCP-B45HW connector parameters:

• Insulation resistance at 500V DC in Ω: >1000M
• Rated voltage for 1min: 1500V AC (rms)
• Resistance of central contact: <6m ohm
• Resistance of outer contact: <3m ohm
• Impedance in Ω : 75
• Connector body - material/surface : Brass / Nickel
• Central contact - material/surface : Beryllium Copper / Gold
• Flange - material/surface: Die Cast AL / Nickel
• Dielectric - Material: PTFE polytetrafluoroethylene
