Canare 3G/HD-SDI on reel with cable holder 80m

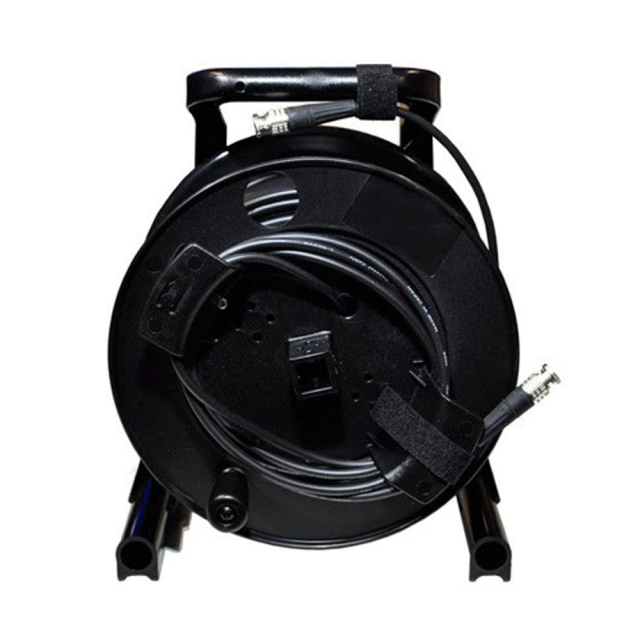

Canare L-4.5CHWS BNC (M-male) / BNC (M-male) is a "Low Loss" flexible and durable 75 ohm HD/SD-SDI coaxial cable, 7.2 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. 30-40 m long cables are wound on a Schill GT 235.RM drum, 50-80 m long cables are wound on a larger Schill GT 310.RMdrum

Its great flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and "High-density" double braided shielding with high density and thick foam insulation.

Features of Canare L-4.5CHWS cable:

• compliant with SMPTE 424M & 292M specification
• HDTV
• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Canare L-4.5CHWS cable parameters:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm: 7.2
• Cable weight in kg/100m: 6.6
• Central conductor - number and diameter of cable cores in mm: 7/0.34
• Total diameter of central conductor in mm: 1.02
• Foam dielectric - diameter in mm: 4,57
• Resistance of central conductor in Ω/100m: 3.3
• Resistance of outer conductor in Ω/100m: 0,8
• Temperature range: -30°C ~ +60°C
• Static capacitance in pF/m: 53
• Attenuation in dB/100m at 750MHz: 22.8

BCP-B45HW connector features:

• True 75 ohm design with crimp pin and sleeve
• High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
• Extended body for better handling
• Position mark on the body allows the connector to be easily inspected.
• Excellent cable grip
• Gold plated central pin
• Connector body is "die-cast" - achieving lower cost at high performance
• Easy assembly using the Canare crimp tool

BCP-B45HW connector parameters:

• Insulation resistance at 500V DC in Ω: >1000M
• Rated voltage for 1min: 1500V AC (rms)
• Central contact resistance: <6m ohm
• Resistance of outer contact: <3m ohm
• Impedance in Ω : 75
• Connector body - material/surface : Brass / Nickel
• Central contact - material/surface: Beryllium Copper / Gold
• Flange - material/surface: Die Cast AL / Nickel
• Dielectric - material: PTFE polytetrafluoroethylene
