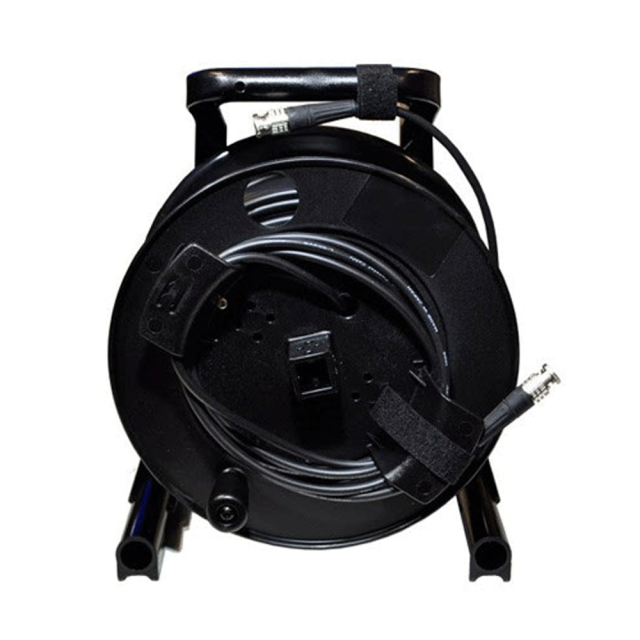

Canare 3G/HD-SDI cable on reel with cable holder 90m

Canare L-5CFW BNC (M-samec) / BNC (M-samec) is a "Low Loss" flexible and durable 75 ohm 3G/HD/SD-SDI coaxial cable, 7.7 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. The cable is wound on a Schill GT 380.RM drum. The total cable length is given including connectors.

Due to its great flexibility, it is ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and "High-density" double braided shielding with high density and thick foam insulation.

Maximum transmission distance depending on video format

Canare L-5CFW cable parameters:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm: 7.7
• Cable weight in kg/100m: 8.1
• Central conductor - number and diameter of cores in mm: 1/1.05
• Total diameter of central conductor in mm: 1.05
• Foam dielectric - diameter in mm: 5,00
• Resistance of the central conductor in Ω/100m: 2,3
• Resistance of outer conductor in Ω/100m: 0,5
• Temperature range: -30°C ~ +60°C
• Static capacitance in pF/m: 55
• Attenuation in dB/100m: 19.4
