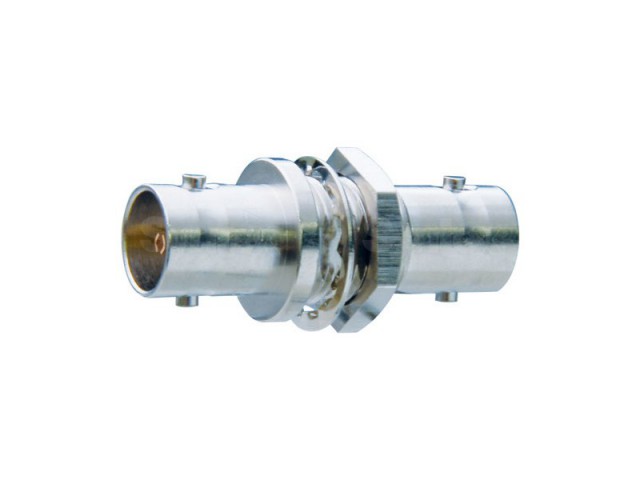

Canare BCJ-JR Panel mount connector
SKU: BCJ-JR
Canare BCJ-JR is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector
2.3 € with VAT
1.9 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs, Bratislava 1 pcs
Praha 2 pcs, Bratislava 1 pcs
Top accessories for Canare BCJ-JR Panel mount connector
Canare BCP-B45HW crimp BNC connector
Canare BCP-B45HW is a 75 ohm BNC Crimp Plugs (Straight Type). Suitable for Canare
3.6 €
In stock > 5 pcs
Canare BCP-LC3
Canare BCP-LC3 is a 75 ohm BNC Crimp Plugs BCP-LC Series (Right Type)
17 €
To be sent > 5 pcs
Canare BCJ-DC
Canare BCJ-DC is dust cap (cover) for panel mount BNC (F) connectors. Protect unused
0.2 €
In stock > 5 pcs
Canare BCP-C1 BNC crimp connector
Canare BCP-C1 is a 75 ohm BNC Crimp Plugs (Straight Type)
5.8 €
In stock > 5 pcs
Schill GT 310.S0
Schill GT 310.S0 Cable drum made of speciality rubber with blank cover for self-
70 €
In stock 2 pcs
Neutrik NBNC75BYY11 "rearTWIST" HD BNC connector
The rearTWIST HD BNC 75Ω cable connector
4 €
In stock 5 pcs
Neutrik NBNC75BLP7 rearTWIST HD BNC connector
The rearTWIST HD BNC 75 Ω cable connector
4 €
In stock > 5 pcs
Product description
Product description
Canare BCJ-JR is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector
Canare BCJ-JR is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector
Applications:
- Headends
- Multimedia Edit Suites
- Master Control Rooms
- Satellite
- TelCom
- Broadband
Features:
- Jack to Jack or Jack to Solder
- Mounts in Common Canare Hole Punch
- Totally Isolated from Panel
- Flush mount to avoid impact
Specifications:
- Bandwidth VSWR Return Loss DC-2GHz: 1.1 >26dB
- Center Contact Material / Plating: Beryllium Copper/ Gold
- Body/ Material Plating: Brass/Nickel
- Dielectric: PTFE
- Flange Material / Plating: DieCast AL / Nickel
- Insulation Resistance at 500V DC: >1000 MegaOhms
- Voltage Rating for 1 Minute: 1500V AC(rms)
- Center Contact Resistance: <6 miliOhms
- Outer Contact Resistance: <3 miliOhms
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | Video connectors |
Main parameters
| Type | BNC (F) / BNC (F) |
Other parameters
| Version | On the panel |
| Version | Coupling/Adapter |
| Version | Females |
