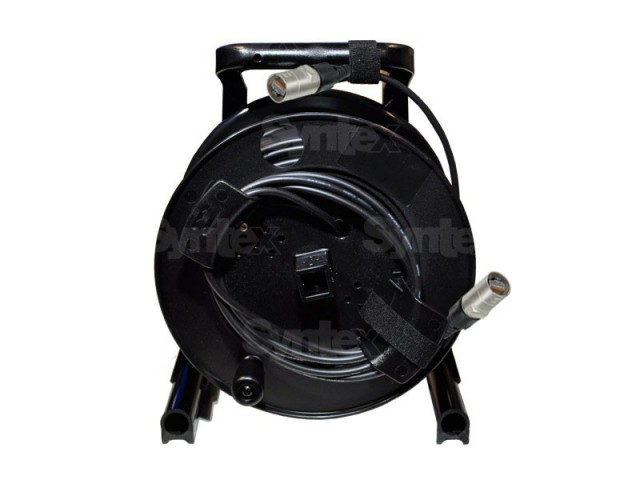

Canare CAT5e Flexi + drum 40m (Neutrik etherCON)

The Canare CAT5e Flexi drum is a flexible and extra strong Canare RJC5ES-4P-BS CAT5e STP network cable with an outer diameter of 6.7 mm with Neutrik etherCON RJ45 terminations, wound on a Schill cable drum. Ethernet cables are used not only for computer networks, but more recently also for digital audio networks, network cameras, HDBaseT transmissions. The total cable length is listed including connectors.

Canare RJC5ES-4P-BS cable:

Features:

• Flexible and extra strong CAT5e STP cable for distances up to 50 m
• 1000BASE-T, 100BASE-TX and 10BASE-T
• Stranded conductors and common shield braid
• Excellent flexibility and resistance to repeated bending

Specifications: - Suitable for high performance and high speed cable transmissions:

• Standard manufactured lengths in (m): 100/200
• Cable weight in kg/100 m: 6.1
• Sheath diameter (overall diameter) in mm: 6.7
• AWG: 24 (0.22 mm)
• Number and diameter of cores per conductor in mm: 7/0.20
• Shielding factor: 90%
• Conductor resistance in ohms/100 m: 9.5
• Impedance in ohms: 44

Ethernet cable designation:

CAT5e
U - unshielded, unshielded
F - foiled (with foil)
S - Shielded

RJ45 connectors Neutrik NE8MC:

Specifications:

• Name - NE8MC
• Type - Male
• Cable diameter - max. 8 mm 0.315'
• Force required to connect the connectors: ≤ 20 N
• Force required to disconnect connectors: ≤ 20 N
• Lifetime: > 1000 mating cycles

Material

• Cable cap - polyamide (PA 6)
• Body - zinc die-cast (ZnAl4Cu1)
• Body finish - nickel
• Temperature range - -30 °C to +80 °C

Drum Schill GT-235.RM

Application:

• for various types of cables
• plastic holder for cable fixing
• capacity in (m ) according to cable diameter: 5 mm - 109 m, 6 mm - 79 m, 7 mm - 61 m

Technical data: - cable socket for cables included in the package:

• handle for easy winding
• integrated brake
• width x depth x height in mm: 208 x 206 x 295
• weight in kg: 1.00
