Canare GS-6

Canare GS-6 - specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz). A bright, ringing characteristic sound is preserved,…

More information

2.9 € with VAT 2.4 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Tomorrow
In stock 122 m
Praha 122 m, Bratislava 334 m

Show all accessories

Product description

Product description

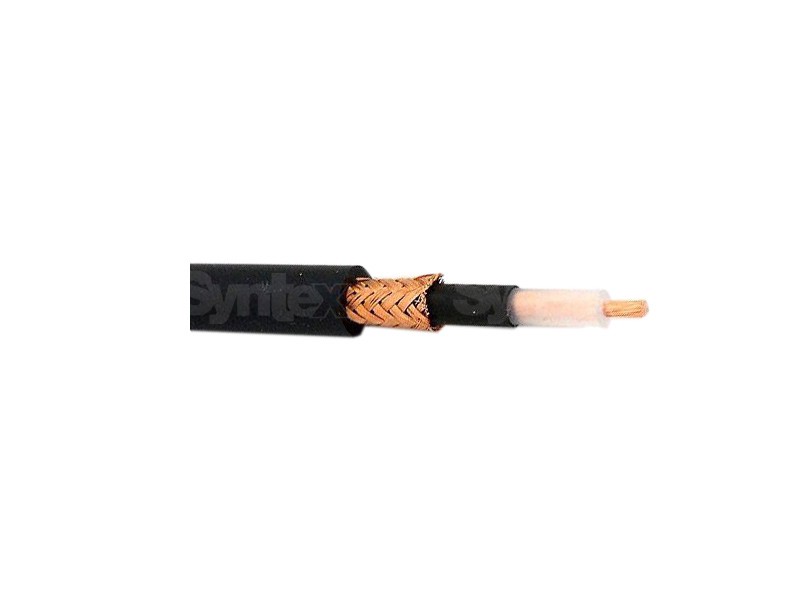

Canare GS-6 - specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz). A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The proprietary double Carbon/Braid Copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. Also highly recommended for Amp Head to Speaker Cabinet leads.





Applications:

  • Microphones
  • Portable Applications
  • Audio Rack Wiring
  • PA Systems
  • Audio Patch Cords

Features:

  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI
  • 10 Matte Color Jacket Selections



MECHANICAL SPECIFICATIONS
Model Std. Lng.



ft.
(m)
Wt
Std. Lng.


lbs
(kgs)
Nom.
O.D.


in.
(mm)
PVC
Jacket
Nom.
Thick.
in.
(mm)
Brittle
Point


(C°)
No.
of
Cond.
Insul.
Type*
Thick

mil
Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.2
Pitch
Twist
Quad

in.
(mm)
Shield
Cover-
age
GS-6 328
(100)
656
(200)
22
(10)
.228
(5.8)
.039
(1.0)
-56
(-49)
1 PE
33.5
OFC-#18
(127/3.94)
1550
- OFC>92%
Braid+
Carbon
Sleeve
Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.



ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.
ohm/1000ft
(ohm/100m)
Shield
D.C.R.
ohm/1000ft
(ohm/100m)
Nom.
Cap.
***

1>(pF/m)
Nom.
Cap.


(pF/m)
Nom.
Imp.
ohm
Nom.
Atten.
V/1000ft
(V/100m)
Group
Delay
Time
nS/ft
(nS/m)
GS-6 <5.6
(<1.8)
<7.6
(<2.5)
- 160 - - -
***Capacitance between conductors.
†Capacitance between conductors to shield.
COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
GS-6 [+] [+]     [o] [o]   [+]   [o]
[+]=Standard Color, [o]=Available Color, ""=n/a
Parameters

Parameters

Manufacturer: Canare
Category: Audio cables

Main parameters

Cable typeInstrumental
VersionFlexible
ShieldingBraid
Core / ConductorLanko
Cable diameter5.8mm
ColourBlack
