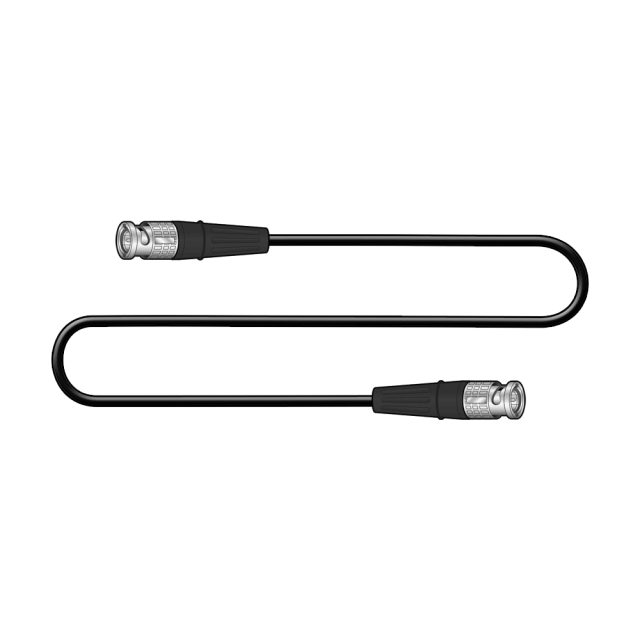

Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 45m
SKU: CV-25W-M/M-BLK-45
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny kábel ideálny pre mobilné SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
106 € with VAT
87.6 € without VAT
Availability
on request
Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 1m
In stock > 5 pcs13 €without VAT 10.74 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 2m
In stock > 5 pcs15 €without VAT 12.4 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 3m
In stock > 5 pcs17 €without VAT 14.05 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 5m
To be sent > 5 pcs21 €without VAT 17.36 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 7,5m
In stock > 5 pcs27 €without VAT 22.31 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 10m
In stock > 5 pcs32 €without VAT 26.45 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 15m
In stock > 5 pcs43 €without VAT 35.54 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 20m
In stock > 5 pcs53 €without VAT 43.8 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 25m
In stock > 5 pcs64 €without VAT 52.89 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 30m
In stock > 5 pcs74 €without VAT 61.16 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 0,3m
In stock > 5 pcs11 €without VAT 9.09 €
Canare L-2.5CHWS flexibilni 3G/HD-SDI kabel, BNC-BNC 0,5m
To be sent > 5 pcs12 €without VAT 9.92 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 35m
To be sent 2 pcs85 €without VAT 70.25 €
Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 40m
In stock > 5 pcs96 €without VAT 79.34 €
Canare L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 50m
In stock 2 pcs117 €without VAT 96.69 €
Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 0,7m
In stock > 5 pcs12 €without VAT 9.92 €Top accessories for Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 45m
Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle
Panel Mount Bulkhead BNC Receptacle
4.8 €
In stock > 5 pcs
Adhesive tape Gaffa black 50m
Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
12 €
In stock > 5 pcs
Amphenol BNC rectangular adapter / coupler
Rectangular BNC (M) male to BNC (F) female 75 ohm adapter/coupler .
11 €
To be sent > 5 pcs
Stage Tape Neon Pink 19mm, 25m
Gaffa tape fluorescent, width 19mm length 25mm
7.3 €
In stock > 5 pcs
HT-2206 extraction tool for BNC connectors
Suitable for assembly and disassembly of BNC connectors in hard to reach places,
16 €
In stock 2 pcs
Product description
Product description
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny kábel ideálny pre mobilné SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
12G-SDI dokáže preniesť na 32m.
Kábel má lankový centrálny vodič a dvojité pletené tienenie s vysokou hustotou (High-density) a silnou penovou izoláciou. Na oboch koncoch sú krimpovacie BNC (M) konektory Canare BCP-B25HW a voliteľné farebné krytky Canare CB02.
12G-SDI dokáže preniesť na 32m.
Využitie flexibilného 12G/3G/HD-SDI kábla Canare L-2.5CHWS:
- v súlade so špecifikáciou SMPTE 424M a SMPTE 292M, SMPTE ST 344M a SMPTE ST 2082-1
- HDTV
- HD/SD-SDI video
- PAL & NTSC analógové video
- Satelitné aplikácie
- TELCO
- Testovacie zariadenia
Maximálna prenosová vzdialenosť v závislosti od formátu videa:
| Maximálna prenosová vzdialenosť Canare L-2.5CHWS v závislosti od formátu videa | ||||||||
| Rýchlosť prenosu dát: | 143 Mb/s | 177 Mb/s | 270 Mb/s | 360 Mb/s | 540 Mb/s | 1,5 Gb/s | 3 Gb/s | 12 Gb/s |
| Špecifikácia: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M | SMPTE ST 2082-1 |
| Použitie: | kompozit NTSC | kompozit PAL | zložky 4:2:2 | zložky 4:2:2 16x9 | SDI | HD-SDI 1080i | 3G-SDI 1080p | 12G-SDI 4K-UHD |
| Maximálna dĺžka kábla: | 275m | 247m | 198m | 171m | 138m | 53m | 54m | 32m |
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | SDI cables |
Main parameters
| Cable type | SDI |
| Length | 45m |
| Version | Flexible |
| Connector type | BNC - BNC |
| Male / Female | Male - Male |
| Cable diameter | 4.2mm |
| Colour | Black |
| Connector shape | Direct |
| Impedance | 75 Ohm |
