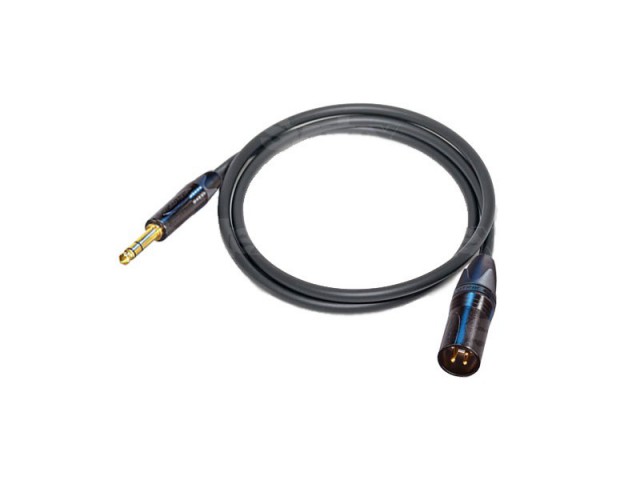

Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.

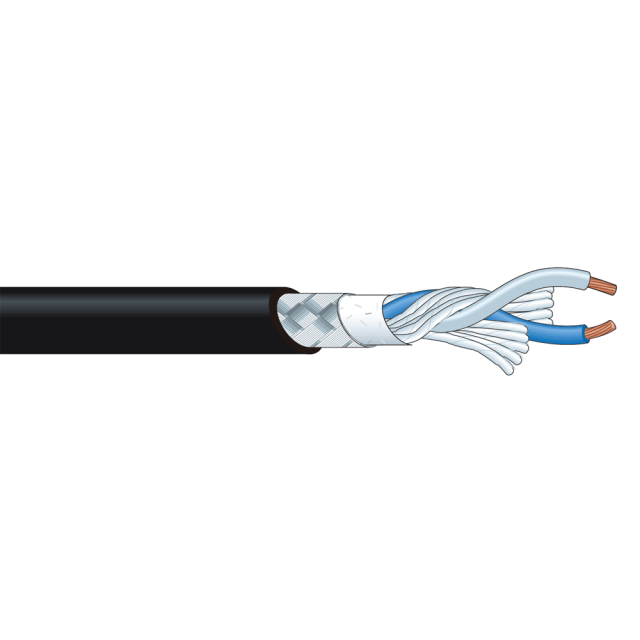

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mmdiameter sheath .
- Copper braided shielding
- Flexible even in extremely cold weather
- Cross-linked PE (polyethylene) insulation
- Minimised handling noise
- EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed
Canare L-2T2S Cable Technical Specifications:
- Standard manufactured lengths in (m): 100/200
- Cable weight in kg/100m: 4.6
- Sheath diameter (overall diameter) in mm:6.0
- AWG:23
- Material and thickness of outer insulation in (mm):PVC (1.00)
- Breaking point in (°C):-49
- Number and colour of conductors:2 / 1 x blue, 1 x white
- Number and diameter of cores per conductor in mm: 60/0,08
- Shielding factor:>94%
- Conductor resistance in Ω/100m: <6.4
- Shielding resistance in Ω/100m:<3.1
- Capacitance between blue and white conductors in pF/m:70
- Capacitance between conductors and shielding in pF/m:106
- Impedance in Ω:88

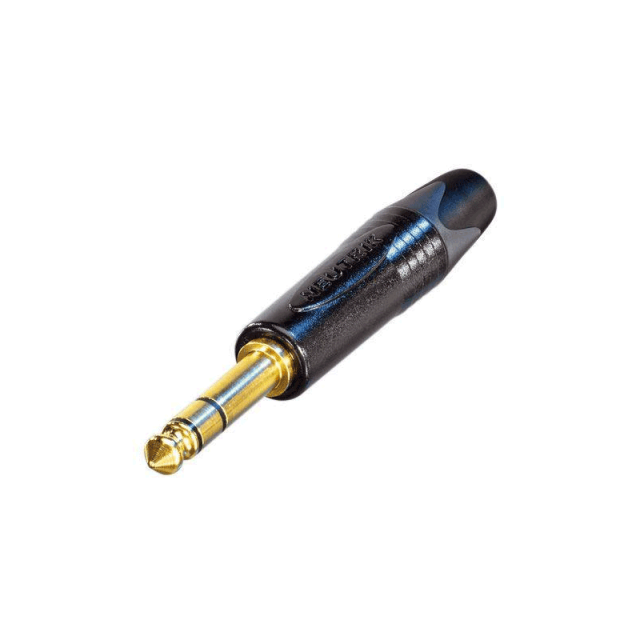

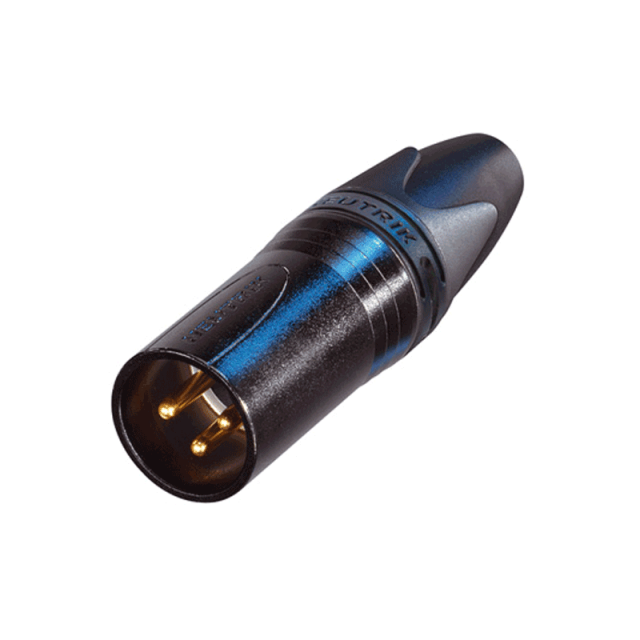

Technical specifications of Neutrik XX-B connectors:
- Capacitance:≤ 4 pF
- Contact resistance:≤ 3 mΩ
- Rated voltage 1min:1.5 kVdc
- Insulation resistance:> 10 GΩ
- Rated current per 1 contact:16 A
- Rated voltage:50 V
- Cable diameter: 3.5 - 8.0 mm
- Force required to connect connectors:≤ 20 N
- Force required to disconnect connectors:≤ 20 N
- Lifetime:> 1000 connection cycles
- Conductor: max. 2.5 mm², max. 14 AWG
- Soldering
- Cable cap:Polyurethane
- Contact surface treatment:0.2 µm Au layer on 2 µm Ni
- Contact material:Bronze (CuSn8)
- Polyamide (PA 6.6 30% GR)
- Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body:Zinc diecast (ZnAl4Cu1)
- Connector body finish:black chrome
