Canare L-3.3CUHWS BLK, coaxial cable

  • New
SKU: CNRL33CUHWS

Specially designed cable for 12G-SDI mobile applications. Flexible and low loss structure. Highly-foamed PE insulation. High-density double braided shield.

More information

4 € with VAT 3.31 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CNRL33CUHWS
Add to Compare Price history

Top accessories for Canare L-3.3CUHWS BLK, coaxial cable

Canare BCP-D33UHW

  • New
Canare added the new BCP-D series for 12G-SDI. SMPTE ST 2082-1 fully compliant connector
6.4 €
on request
Product description SPECIFICATIONS

Product description

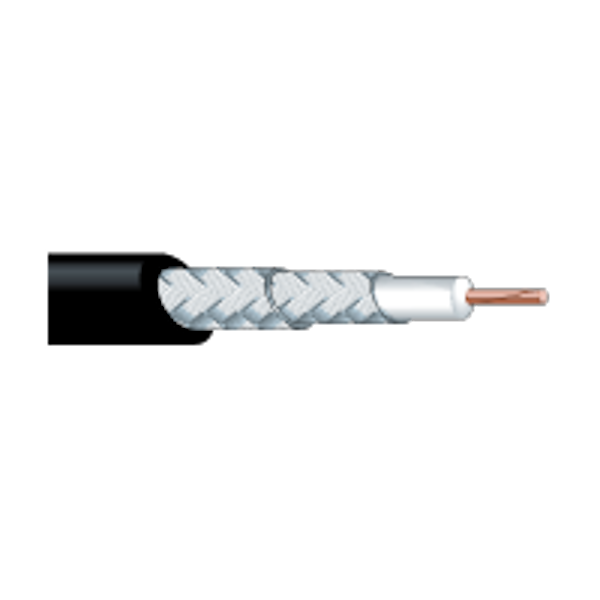

Specially designed cable for 12G-SDI mobile applications. Flexible and low loss structure. Highly-foamed PE insulation. High-density double braided shield.

  • Specially designed for 12G-SDI mobile applications
  • Flexible and low loss structure
  • Highly-foamed PE insulation
  • High-density double braided shield

Sales units - 100m, 200m. Weight 4,8kg/100m.

SPECIFICATIONS

Inner cond. resistance - 5 ohm/100m

Outer cond. resistance - 0.9 ohm/100m

Static capacity 57 pF/m

Characteristic impedance - 75ohm

Attenuation - 30.8 dB/100m (750MHz)

Parameters

Parameters

Manufacturer: Canare
Category: Video cables

Main parameters

Cable type12G SDI
VersionFlexible
Cable diameter5.8mm
ColourBlack

Other parameters

Other4K UHD
