Canare L-3C2VS BLK BNC 10m
SKU: CV-3-M/M-BLK-10
Canare L-3C2VS BLK BNC (M-male) / BNC (M-male) 10m
27 € with VAT
22.31 € without VAT
Availability
on request
Canare L-3C2VS BLK BNC 0,5m
In stock 2 pcs11 €without VAT 9.09 €
Canare L-3C2VS BLK BNC 1m
To be sent 5 pcs11 €without VAT 9.09 €
Canare L-3C2VS BLK BNC 2m
To be sent 5 pcs13 €without VAT 10.74 €
Canare L-3C2VS BLK BNC 5m SDI cable
In stock 2 pcs18 €without VAT 14.88 €
Canare L-3C2VS BLK BNC 15m
In stock 3 pcs35 €without VAT 28.93 €
Canare L-3C2VS BLK BNC 20m
44 €without VAT 36.36 €
Canare L-3C2VS BLK BNC 30m
61 €without VAT 50.41 €
Canare L-3C2VS BLK BNC 0,3m
In stock 3 pcs10 €without VAT 8.26 €
Canare L-3C2VS BLK BNC 3m
15 €without VAT 12.4 €Top accessories for Canare L-3C2VS BLK BNC 10m
Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle
Panel Mount Bulkhead BNC Receptacle
4.8 €
In stock > 5 pcs
Adhesive tape Gaffa black 50m
Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
12 €
In stock > 5 pcs
Amphenol BNC rectangular adapter / coupler
Rectangular BNC (M) male to BNC (F) female 75 ohm adapter/coupler .
11 €
To be sent > 5 pcs
Stage Tape Neon Pink 19mm, 25m
Gaffa tape fluorescent, width 19mm length 25mm
7.3 €
In stock > 5 pcs
HT-2206 extraction tool for BNC connectors
Suitable for assembly and disassembly of BNC connectors in hard to reach places,
16 €
In stock 2 pcs
Datavideo HDR-60
Professional desktop video recorder from Datavideo records SD and HD videos to removable
2 659 €
14-30 days
Product description
Product description

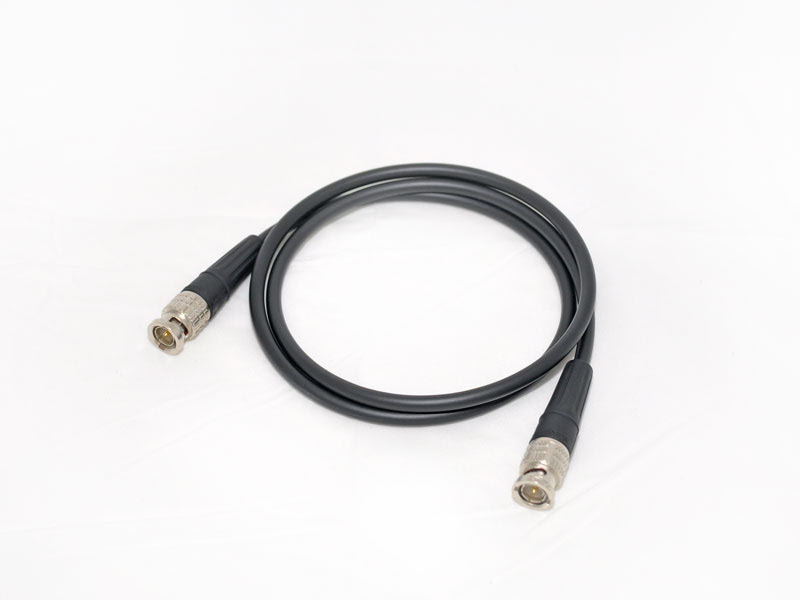

Canare L-3C2VS BLK BNC (M-male) / BNC (M-male) 10m
Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDI coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. There are Canare BCP-A3 crimp-on BNC (M) connectors on both ends and optional Canare CB03
caps.
Use of the Canare L-3C2VS flexible SDI cable:
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
- Interconnect Cables
- Video Assist Cables
| Maximum transmission distance of Canare L-3C2VS depending on video format | ||||||
| Data transfer rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s |
| Specification: | SMPTE 259M | ITU-R BT.601 | SMPTE 259M | SMPTE 259M | SMPTE 344M | SMPTE 292M |
| Usage: | nTSC composite | pAL composite | components 4:2:2 | 4:2:2 16x9 components | SDI | HD-SDI |
| Maximum cable length: | 241m | 218m | 174m | 150m | 120m | 46m |
