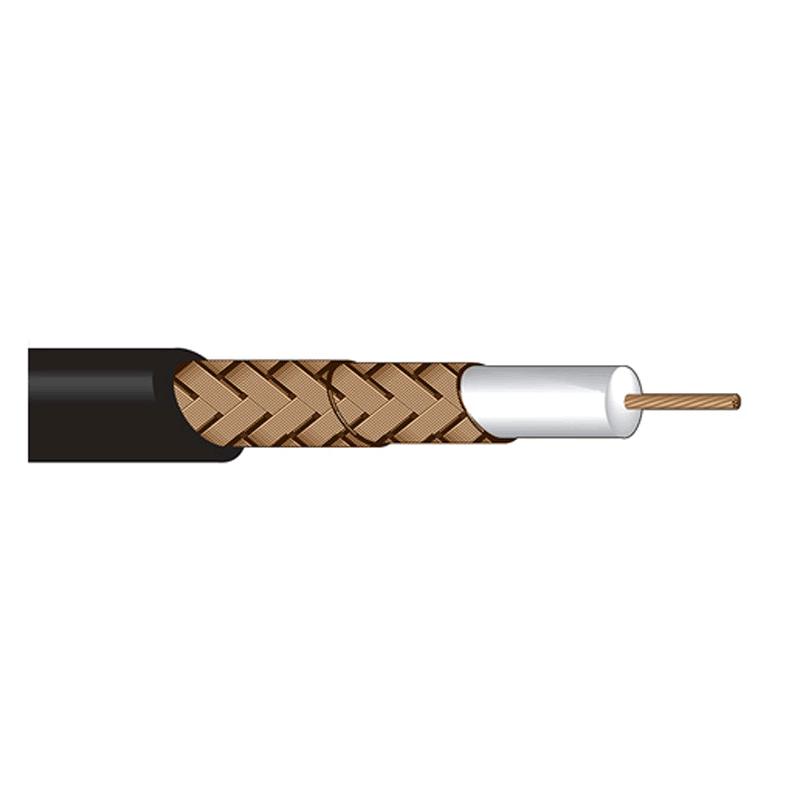

Canare L-4.5CHWS BLK flexible 3G/HD/SD-SDI bulk cable
SKU: CNRL45CHWS
Canare L-4.5CHWS - 75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulation)
3.6 € with VAT
2.98 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 536 m
Praha 536 m, Bratislava 3639 m
Praha 536 m, Bratislava 3639 m
Top accessories for Canare L-4.5CHWS BLK flexible 3G/HD/SD-SDI bulk cable
Canare CB05A BLACK
Canare CB05A - Connector Boots, best fit for Canare BNC, RCA, F connectors
0.4 €
In stock > 5 pcs
Canare BCP-B45HW crimp BNC connector
Canare BCP-B45HW is a 75 ohm BNC Crimp Plugs (Straight Type). Suitable for Canare
3.6 €
In stock > 5 pcs
Canare CB05A BNC connector cap (red)
Canare CB05A is protective cover for crimp BNC, RCA, F connector. To facilitate cable
0.4 €
In stock > 5 pcs
Canare CB05A WHT BNC connector cap (white)
Canare CB05A is protective cover for crimp BNC, RCA, F connector. To facilitate cable
0.4 €
In stock > 5 pcs
Canare CB05A YEL BNC connector cap (yellow)
Canare CB05A is protective cover for crimp BNC, RCA, F connector. To facilitate cable
0.4 €
In stock > 5 pcs
Canare CB05A GRY krytka BNC konektora (šedá)
Canare CB05A is protective cover for crimp BNC, RCA, F connector. To facilitate cable
0.4 €
In stock > 5 pcs
Canare TCD-35CA crimp die
Canare TCD-35CA Die Set for the Canare L-2.5CHWS, L-2.5CFB, L-3C2VS, L-3CFB, V-3C,
130 €
In stock 3 pcs
Canare CB05A GRN BNC connector cap (green)
Canare CB05A is protective cover for crimp BNC, RCA, F connector. To facilitate cable
0.4 €
In stock > 5 pcs
Product description
Product description
Canare L-4.5CHWS - 75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulation)
Canare L-4.5CHWS - 75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulation)
Applications:
- Flexible and durable: Best suited to mobile HD application.
- Designed for withstanding repeated bending.
- Stranded center conductor.
- High-density double-braided shield.
- Highly-foamed insulation.
| Model | Std. Lng. ft. (m) |
Nom. O.D. in (mm) |
Wt Std. Lng. lbs (kgs)/100m |
Inner Cond Conductor Comp. (AWG) Q'ty/mm |
Inner Cond O.D. in. (mm) |
Insulation O.D. in. (mm) |
|
| L-4.5CHWS | 328 (100) 656 (200) |
0.28 (7.2) |
14.55 (6.6) |
(18) 7/0.34A |
0.04 (1.02) |
0.17 (4.57) |
|
| Model | Outer Conductors Shield Coverage & Comp. |
Inner Cond. Resistance ohm/mile (ohm/km) |
Outer Cond. Resistance ohm/mile (ohm/km) |
Static Capacity (pF/m) |
Characteristic Impendence ohm |
Attenuation dB/100m(328ft) 750MHz) |
| L-4.5CHWS | 0.10A/8/24(93% or more) 0.10A/9/24(95% or more) |
39.95 (32.70) |
10.88 (16.9) |
53 | 75 | 22.8 |
