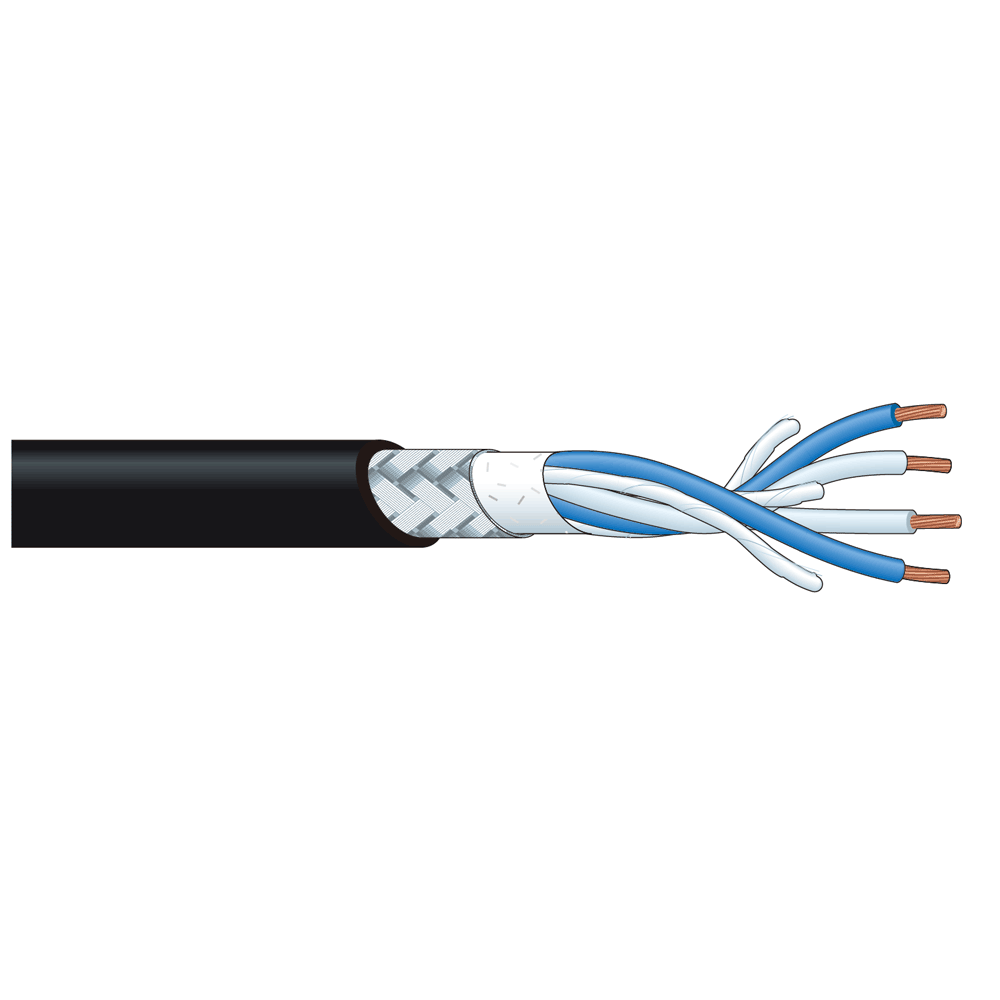

Canare L-4E6S Is a premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 24 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing.…
Canare L-4E6S Is a premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 24 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing.
Applications:
Features:
Model | Std. Lng. ft. (m) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. (mm) |
Jacket Nom. Thick. in. (mm) |
Brittle Point F° (C°) |
No. of Cond. |
Insul. Type* Thick mil |
Cond-AWG (Qty./mil) Cross Sec. Area mil.? **Quad AWG |
Pitch Twist Quad in. (mm) |
Shield Cover- age |
L-4E6S | 656 (200) 1000 (305) |
24 (11) 35 (16) |
.236 (6.00) |
PVC .044 (1.12) |
-56 (-49) |
4 2 Blue 2 Wht |
IPE 15.7 |
AC - #24 40/3.15 310 #21 |
.79 (20) |
>95% TAC Braid |
***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
Model | Cond. D.C.R. ohm/1000ft (ohm/100m) |
Shield D.C.R. ohm/1000ft (ohm/100m) |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp. (ohm) |
Nom. Atten. V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
L-4E6S | <29.9 (<9.8) |
<9.1 (<3.0) |
150 | 185 | 44 | 0.9 (0.3) |
1.80 (5.9) |
