Canare L-5CFW Flexible 3G/HD-SDI cable BNC 70m

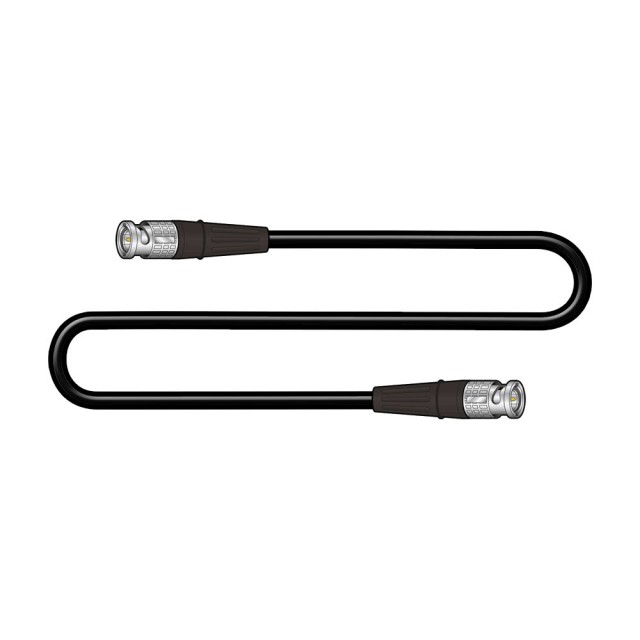

Canare L-5CFW BNC (M-male) / BNC (M-male)

Specifications:

• Standard manufactured lengths: 100/200m
• Sheath diameter (overall diameter) in mm: 7.7
• Cable weight in kg/100m: 8.1
• Central conductor - number and diameter of cores in mm: 1/1.05
• Total diameter of central conductor in mm: 1.05
• Foam dielectric - diameter in mm: 5,00
• Resistance of the central conductor in Ω/100m: 2,3
• Resistance of outer conductor in Ω/100m: 0,5
• Static capacitance in pF/m: 55
• Attenuation in dB/100m: 19.4

Maximum transmission distance depending on video format
