Canare Patch panel BNC 19" 1U 4xBNC (F)

Canare Patch panel BNC 19" 1U 4xBNC(F)

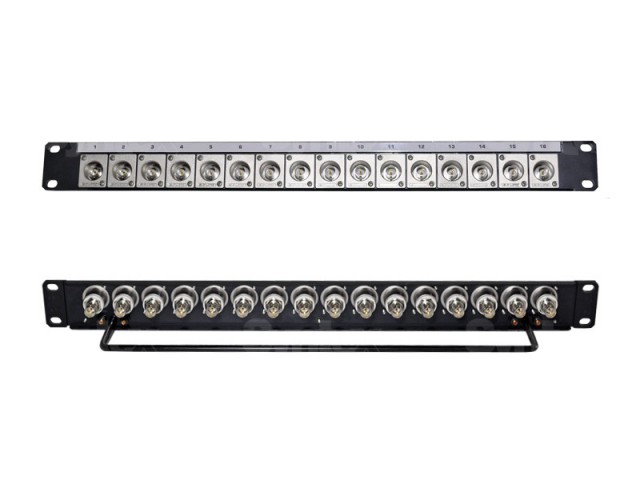

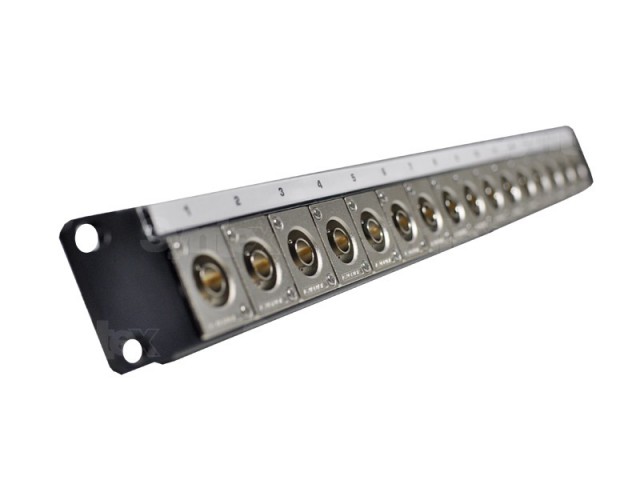

Canare Patch panel BNC 19" 1U - equipped with double-sided BNC (F) / BNC (F) Canare BCJ-JRUDK adapters and cable holder on the back. Using the supplied metric screws in pre-drilled holes with pre-cut threads, the connectors are easily manipulated without removing the patch panel from the rack!

Panel Features:

• 19" wide
• 1U panel
• 16 holes type "D"

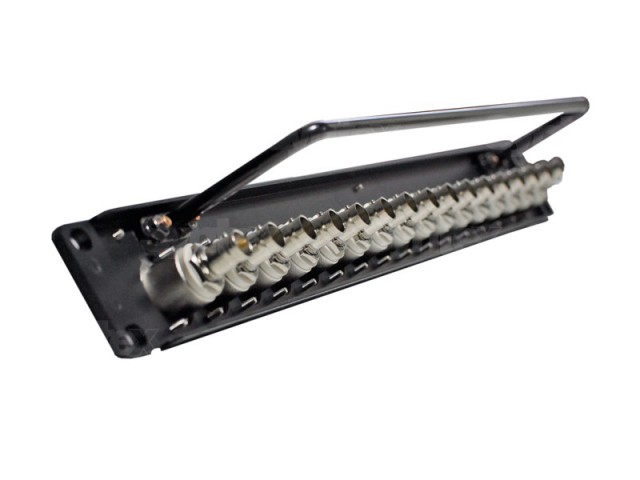

• Cable bracket on the back
• black color
• White strip with plastic cover for easy labeling

Specifications:

• Attenuation at 12GHz: 15dB
• Insulation resistance at 500V DC in Ω: >1000M
• Rated voltage for 1min: 1500V AC (rms)
• Resistance of central contact: <6m ohm
• Resistance of outer contact: <3m ohm
• Impedance in Ω : 75
• Connector body - material/surface : Brass / Nickel
• Central contact - material/surface : Beryllium Copper / Gold
• Flange - material/surface: Die Cast AL / Nickel
• Dielectric - Material: PTFE polytetrafluoroethylene
