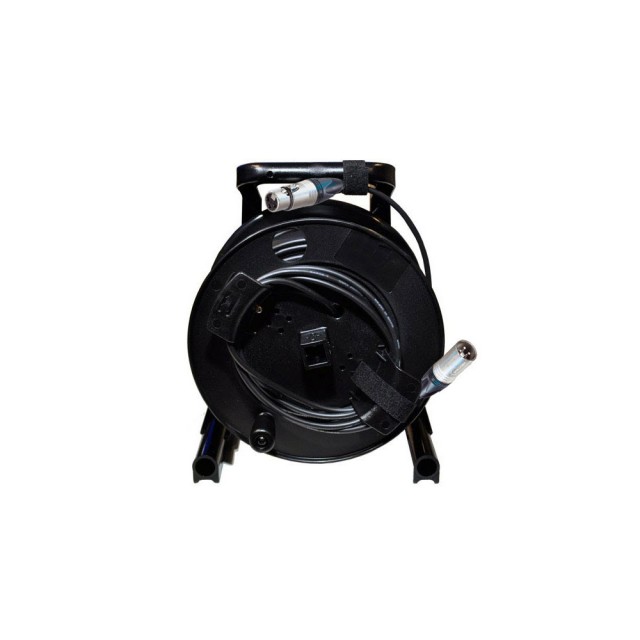

Canare XLR cable 25m on Schill reel

Canare L-2T2S microphone cable with Neutrik XLR connectors on Schill GT 235.RM cable reel

Canare L-2T2S

is a high quality 2-conductor flexible microphone cable for a wide range of applications. High density stranded copper shielding and two AWG 23 (0.57mm) diameter inner conductors composed of 60 thin strands of copper wire allow maximum flexibility and reduce handling noise. The special PVC compound outer sheath resists cracking even in extremely cold environments.

Usage:

• Microphones
• Stages, concerts
• Studios
• Fixed installations
• Audio rack cabling
• Amplifiers
• Audio patch cables

Features:

• Copper braided shielding
• Flexible even in extremely cold weather
• Minimised handling noise
• EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Specifications:

• Standard manufactured lengths in (m): 100/200
• Cable weight in kg/100m: 4.6
• Sheath diameter (overall diameter) in mm:6.0

• AWG: 23
• Material and thickness of outer insulation in (mm):PVC (1.00)
• Breaking point in (°C):-49
• Number and colour of conductors:2 / 1 x blue, 1 x white
• Number and diameter of cores per conductor in mm: 60/0,08
• Shielding factor:>94%
• Conductor resistance in Ω/100m: <6.4
• Shielding resistance in Ω/100m: <3.1
• Capacitance between blue and white conductors in pF/m:70
• Capacitance between conductors and shield in pF/m:106
• Impedance in Ω: 88

Schill GT 235.RM

Usage:

• universal - for different cable types
• plastic holder for cable attachment
• capacity in(m) according to cable diameter: 5mm -109m,6mm- 79m,7mm -61m

Specifications:

• handle for easy winding
• integrated brake
• width x depth x height in mm: 208 x 206 x 295
• weight (empty drum) in kg: 1.00
