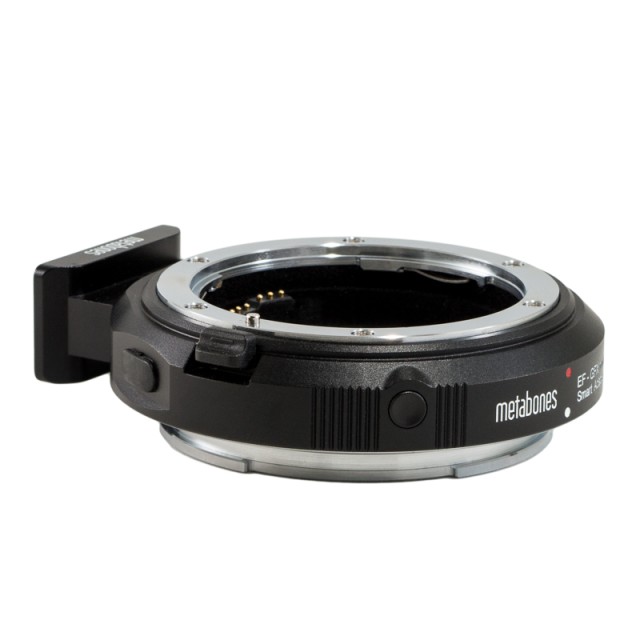

Canon EF Lens to Fuji G-mount T Smart Adapter (GFX)

Canon EF mount lens to Fujifilm G-mount camera. Autofocus. Phase-detection autofocus (PDAF) is supported no matter which AF lens is used. Adapters support PDAF by translating pertinent metadata about the optics between the lens interfaces. In this way, broad support of the widest range of lenses is made possible.

More information

489 € with VAT 404.13 € without VAT
-+
Availability
14-30 days
Product description

Product description

Canon EF mount lens to Fujifilm G-mount camera. Autofocus. Phase-detection autofocus (PDAF) is supported no matter which AF lens is used. Adapters support PDAF by translating pertinent metadata about the optics between the lens interfaces. In this way, broad support of the widest range of lenses is made possible.

  • Canon EF mount lens to Fujifilm G-mount camera.
  • Autofocus. Phase-detection autofocus (PDAF) is supported no matter which AF lens is used. Adapters support PDAF by translating pertinent metadata about the optics between the lens interfaces. In this way, broad support of the widest range of lenses is made possible.
  • Lens iris/aperture is set by the controls on the camera body.
  • Optical image stabilization (IS) lens support.
  • Smooth iris support with the latest Canon (2009+), Tamron (SP series 2013+) and Sigma (2016+) lens models.
  • Focal length and aperture are adjusted in EXIF (see note 3).
  • LED indicator shows communication status.
  • Powered by camera body. With most lenses, no external power source required.

Mechanical

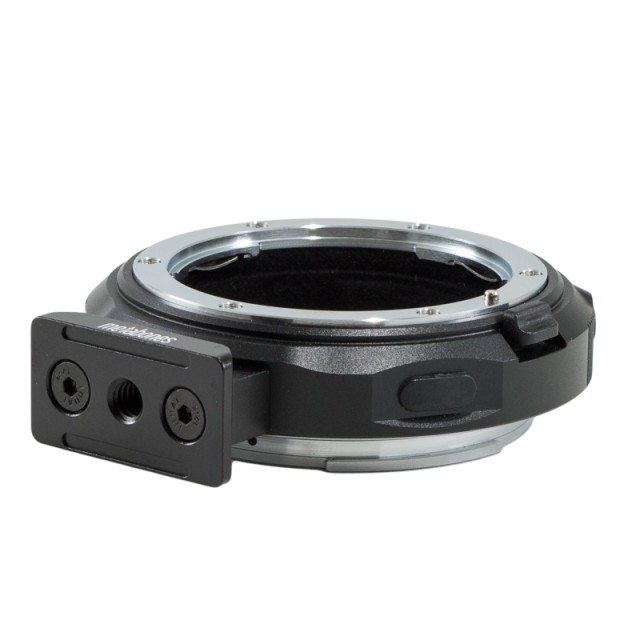

  • The tripod foot is detachable and compatible with Arca Swiss, Markins and Photo Clam ball heads.
  • Flocking to reduce internal reflection.
  • Aluminum alloy and brass construction with chromium plating.
  • Satin surface finish.
  • Detachable Arca-Type tripod foot compatible with Arca Swiss, Markins, and Photo Clam ball heads(clamp directly or attach to quick release plate by a 1/4"-20 screw).

Notes:

* Canon EF-mount Lens (both full-frame and APS-C lens )may not have enough coverage for the GFX cameras when used in conjunction with this optic-free adapter. For the solution, please refer to the Expander adapter HERE.



Limitations

  • In some rare cases lens hoods designed for 3:2 may need to be removed for 4:3 use with Smart Expander.
  • Each lens needs to go through a calibration procedure <click to view>  when first used. Refer to the online user manual on Metabones' web site for instructions.
  • Autofocus may have unsatisfactory performance and may not work at all with some lenses
  • For video autofocus, increasing FOCUS SENSITIVITY and decreasing AF SPEED are required under the AF-C CUSTOM SETTING (MOVIE) menu.
  • For video, aperture priority or manual exposure is recommended to avoid exposure flickering. EF lenses are not capable of fine-grained control of the aperture required by Fujifilm cameras.
  • AF+MF and lens aberration correction are not supported.
  • Some film-era lenses may not be able to achieve sufficient AF accuracy required for digital cameras. Worn lenses with faulty sensors may lead to AF problems on a mirrorless camera even though the lens may appear to function normally on a DSLR.
  • Aperture diaphragm makes frequent noises with older lenses. Use aperture priority and manual exposure modes, or use a lens which supports smooth iris.
  • With IS/OS/VC lenses the IS MODE setting is ignored and both SHOOTING ONLY and CONTINUOUS modes behave in the same way which is similar to a Canon camera but different from what Fujifilm OIS lenses do. This is done to maximize IS effectiveness. A negative consequence of this is that there may be no OIS during focus check.
  • MF Distance Display does not work (although AF Distance Display does, if the lens transmits distance information). Since Metabones has a track record of releasing new firmware updates which significantly improve the features, performance, compatibility and reliability of existing products, these limitations are subject to change in the future. Please refer to the product pages on Metabones' web site for the most up-to-date disclosure.



Unsupported List

  • Lens correction such as peripheral shading, CA and distortion
  • Focus confirmation "chip" (e.g. Dandelion)



Tested Cameras

  • Fujifilm GFX 50S, GFX 50R and GFX 100



Tested Lenses

    Smooth Iris
  Model Support
  Canon EF 40mm F/2.8 STM
  Canon EF 50mm F/1.2L USM
  Canon EF 50mm F/1.4 USM
  Canon EF 50mm F/1.8 II
  Canon EF 50mm F/1.8 STM
  Canon EF 85mm F/1.2L II USM
  Canon EF 100mm F/2.8 USM Macro
  Canon EF 100mm F/2.8L IS USM Macro
  Canon EF 135mm F/2 L USM
  Canon EF 200mm F/2.8L II USM
  Canon EF 300mm F/2.8L IS II USM
  Canon EF 300mm F/4L IS USM
  Canon EF 400mm F/5.6l
  Canon EF 8-15mm F/4L Fisheye
  Canon EF 16-35mm f/2.8L II USM
  Canon EF 17-35mm F/2.8L USM
  Canon EF 24-70mm F/2.8L II USM
  Canon EF 24-70mm F/2.8L USM Mk1
  Canon EF 24-105mm F/4L IS USM
  Canon EF 28-70mm F/3.5-4.5 II
  Canon EF 28-135mm F/3.5-5.6 IS USM
  Canon EF 28-80mm F/3.5-5.6 III USM
  Canon EF 70-200mm F/2.8L IS II USM
  Canon EF 70-200mm F/4L IS II USM
  Canon EF 70-200mm F/4L USM
  Canon EF 70-300mm F/4-5.6 L IS USM
  Canon EF 100-400mm F/4.5-5.6 L IS II USM
  Canon EF TS-E 17mm f/4L
  Canon EF TS-E 24mm f/3.5L II
  Sigma 24mm F/2.8 Super Wide II
  Sigma 35mm F/1.4 DG Art 012
  Sigma 50mm F/1.4 DG HSM non art
  Sigma 135mm F/1.8 DG HSM Art 017
  Sigma 24-35mm F/2 Art 015
  Sigma 24-105mm F/4 OS HSM Art 013
  Sigma 100-400mm F/5-6.5 DG OS
  Tamron 45mm F/1.8 VC (F013)
  Tamron 10-24mm F/3.5-4.5 VC HLD (B023)
  Tamron 15-30mm F/2.8 VC (A012)
  Tamron 17-50mm F/2.8 VC (B005)
  Tamron 18-250mm F/3.5-6.3 Di II (A18)
  Tamron 18-270mm F/3.5-6.3 Di II VC (B003)
  Tamron 18-270mm F/3.5-6.3 Di II VC PZD (B008)
  Tamron 24-70mm F/2.8 Di VC USD (A007)
  Tamron 28-300mm F/3.5-6.3 XR Di (A06)
  Tamron 35-150mm F/2.8-4 Di VC OSD (A043)
  Tamron 70-210mm F/4 Di VC USD (A034)
  Tamron 70-300mm F/4-5.6 Di VC USD (A005)
  Tokina 50mm F/1.4 Opera
  Laowa 100mm F/2.8 Marco CA Dreamer
  Zeiss ZE 18mm F/3.5mm Distagon
  Canon EF-Extender (Teleconverter)


Disclaimer: we are NOT licensed, approved or endorsed by Canon and Fujifilm.




Why Metabones®?

Since its inception, Metabones has been designing and manufacturing lens adapters recognized among professionals and enthusiasts as leaders in design and workmanship.

Contrary to the popular trend of other factories using an aluminum ring painted black on the camera-body-side, we instead take no short-cut but use precision-machined brass with chromium plating on both the camera-body and the lens sides of our adapters, in order to ensure smooth mounting, great appearance, and durability. The lens side of the adapter features a strong leaf-spring structure, strengthening the adapter-lens connection and ensuring tightness of the lens in order to reduce wear and prevent focus errors and optical alignment issues from appearing.

Metabones uses matte-black treatment to keep internal reflection to a minimum in order to maintain the maximum optical quality possible with the lens.

All Metabones Adapters follow this tradition of uncompromising precision, robust build quality and outstanding finish. Our new Smart AdapterTM series of products add industry-leading electronic interfacing technology from Canada, with true electronic control of the lens' aperture directly from the camera body.

Features

  • Both camera-side and lens-side of the adapter are made of brass, precision-machined and plated with chromium.
  • Satin surface finish - just like your OEM lens and camera mounts.
  • Precise fit and solid connection - lens has no play, gap or wiggling when mounted on adapter and no adjustments are required to fit your lens.
  • Designed to reach infinity focus while maintaining the correct registration distance required to maintain optical quality of CRC lenses or lenses with floating elements.

Our Smart AdapterTM  series adapters have the following additional features

  • True electronic integration of aperture diaphragm - let camera automatically choose aperture in P or S exposure modes, or dial in yourself on the camera body in A or M modes.
  • EXIF data such as lens identification, focal length and aperture.
Parameters

Parameters

Manufacturer: Metabones
Category: Adapters

Main parameters

BayonetEF
For the cameraFuji GFX
