Canon XA55

This product is no longer offered. Please select from the alternatives below.

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

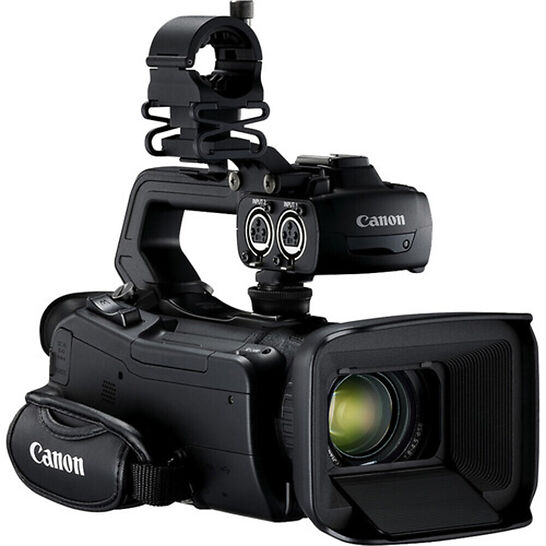

Compact 4K camcorder with 1.0 type CMOS sensor with Dual Pixel CMOS AF technology, 15x optical zoom lens.

1.0 CMOS sensor

Large CMOS sensor for beautiful bokeh effect with high sensitivity and low noise. The Canon XA 55 camcorder also benefits from enhanced Full HD image quality thanks to higher sample rate HD content processing, while Canon's Log 3 and Wide DR modes allow an even wider dynamic range to be captured.

High-quality 4K lens with 15x zoom

Optimise the quality of your images with the Canon XA55's ultra-wide 25.5mm 4K resolution lens and 15x optical zoom with an ultra-low dispersion lens to minimise chromatic aberration. It provides advanced 5-step image stabilization to cope with shooting on the move or handheld shooting.

Fast and accurate Dual Pixel CMOS AF technology

The XA55 uses Dual Pixel CMOS AF for fast and accurate autofocusing in approximately 80% (vertical and horizontal) of the sensor. Face-detection autofocus and touch tracking enable smooth focus control and intuitive use. The Dual Pixel Focus Wizard provides a graphical interface to simplify manual focusing.

XF-AVC and MP4 recording to SD cards

The XA55 supports recording in multiple formats including XF-AVC and MP4. It records in XF-AVC format with 4K UHD resolution at 160 Mbps at 25P max and Full HD resolution at 45 Mbps at 50P/50i/25P. It can also record in MP4 format with 4K resolution of 150 Mbps at 25P and Full HD resolution of 35 Mbps at 50P/25P. At 4K/Full HD resolution, slow-motion and accelerated recording is also possible at up to 1200x.

Compact and lightweight body, professional features

Powerful features of this model include an infrared mode that allows users to record video in low or no ambient lighting conditions, and simultaneous backup or switch recording with two SD card slots. Other features include 3G-SDI (XA55 model only), professional audio support with two XLR connectors and 4-channel linear PCM modulation, lower power consumption and longer battery life.

PACKAGE CONTENT

Package Contents:

  • XA55 camcorder
  • HDU-3 handle
  • Rechargeable battery BP-820
  • Power adapter CA-570
  • Wireless controller WL-D89
  • Microphone Holder
  • Lens Hood (with lens cap)

SPECIFICATIONS

  • Sensor type 1" CMOS sensor
  • Optical image stabilization in integrated lens: Digital
  • Shutter Speed: 1/1 to 1/2000 sec
  • Focal length: 8.3 to 124.5 mm (35 mm focal length equivalent: 25.5 to 382.5 mm)
  • Optical zoom ratio: 15x
  • Minimum focusing distance in landscape: 0.4"/1.0 cm
  • Full zoom range: 23.6" / 60.0 cm
  • Filter size: 58 mm
  • Focus Control: Auto Focus
  • IP streaming Yes
  • Memory Card/Media Slot: Dual Slot: SD/SDHC/SDXC (UHS-I)
  • Video connectors 1 x Mini-HDMI output (HDMI 2.0)
  • Audio connectors: 2 x 3-pin XLR Mic/Line Level input (+48V Phantom Power)
  • 1 x 1/8" / 3.5 mm stereo headphone input
  • 1 x 1/8" / 3.5 mm stereo microphone input
  • Built-in microphone type: Stereo
  • 1 x USB Mini-B output
  • Articulating LCD display
  • Screen Size: 24"
  • Canon BP-8 Series Battery Type
  • Operating temperature 32 to 104 °F / 0 to 40 °C (recommended)
  • Storage temperature 23 to 113°F / -5 to 45°C (Recommended)
  • Operating Humidity 85%
  • Storage humidity 60%
  • Accessory Mount: 1 x Cold Shoe Mount
  • Tripod Mounting Thread: 1/4"-20 female
  • Dimensions 8.4 x 4.3 x 3.6" / 21.34 x 10.92 x 9.14 cm (excluding projections)
  • 10.4 x 4.9 x 3.6" / 26.42 x 12.45 x 9.14 cm (with lugs)
  • 10.4 x 8.5 x 5.5" / 26.42 x 21.59 x 13.97 cm (with protrusions)
Parameters

Parameters

Manufacturer: Canon
Category: Compact cameras

Main parameters

Camera Sensor size1"
Resolution4K
Zoom15x
Output3G SDI
Outputmini-HDMI

Other parameters

Versionon the shoulder
Battery typeBP-820
