Cartoni e-Sensor

The latest response to encoded support as needed in the VIRTUAL REALITY shooting. Strong, versatile, including all features of a standard CARTONI fluid action camera support head, the e-SENSOR features extremely high resolution direct sensing encoders in both pan…

More information

Call us for pricing information
Availability
14-30 days
Product description

Product description

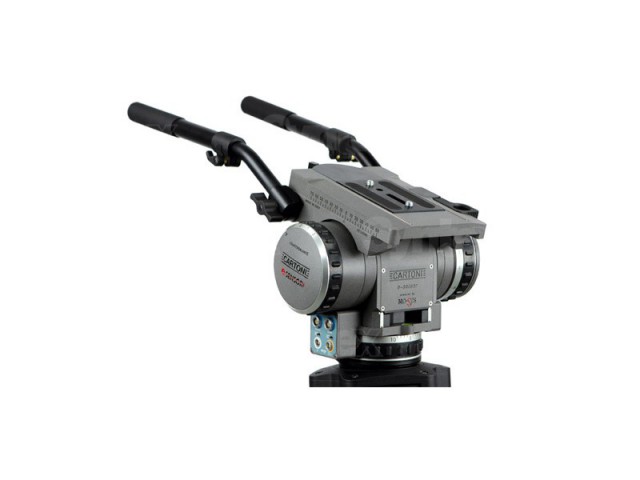

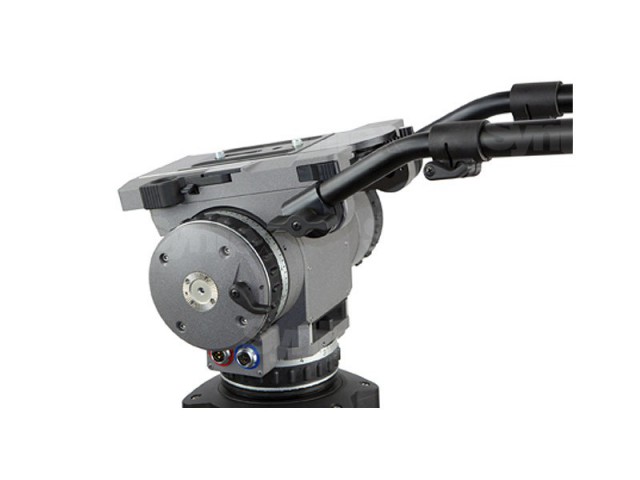

The latest response to encoded support as needed in the VIRTUAL REALITY shooting. Strong, versatile, including all features of a standard CARTONI fluid action camera support head, the e-SENSOR features extremely high resolution direct sensing encoders in both pan and tilt, absolute positioning with no need to re-calibrate at start up, built-in electronic, simple cabling; a single cable supplies both power and data, with a range of up to 100m.


Payload capacity kg / lbs: 0-30 / 0-66
Weight kg / lbs: 6,5 / 14
Pan range (°): 360°
Tilt range (°): +/- 90°
Fluid drag: continuous
Counterbalance: 7 steps + 0
Bowl diameter: 100 mm
Pan resolution: > 1 million counts/rev
Tilt resolution > 1 million counts/rev
Positioning: asbsolute
Encoding transmission: direct - no gears - single cable for power and positon data



CARTONI e-SENSOR is powered by MO-SYS (Motion Systems Technology Ltd) and is compatible with most 3D packages for real time camera/scene movement in virtual set and  pre-visualization, it is the ideal solution for sports 3D graphic insertions plus it is  compatible with all MO-SYS control systems as an input device. Connectors for lens encoders and other position sensors  information are also possible to integrate to the e-SENSOR electronics, making it a very  verstile contender on the virtual set.



COMPATIBILITY:

http://www.cartoni.com/web/en/fluid-heads?page=shop.product_details&flypage=flypage.tpl&product_id=217&category_id=1

Parameters

Parameters

Manufacturer: Cartoni
Category: Heads
