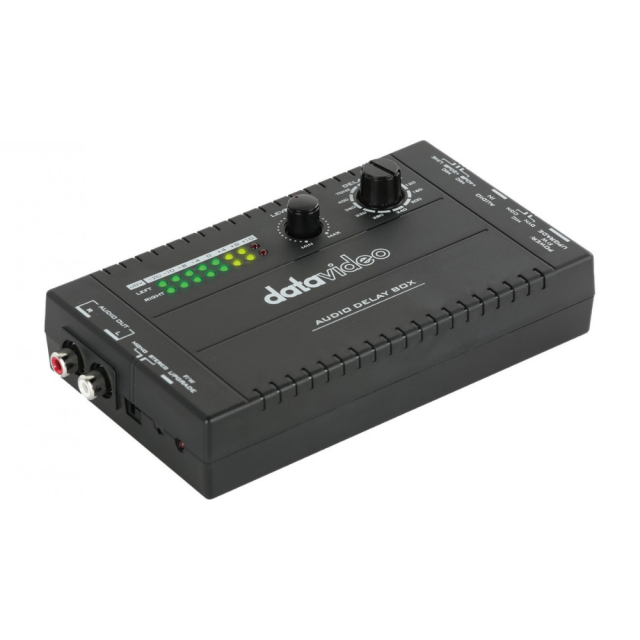

Datavideo AD-10 Audio Delay Box

The audio delay box is essential for the consistency of video and sound in live video production. The new Datavideo AD-10 audio delay box allows for precise synchronization of sound and video: the AD-10 provides a sound delay range of up to 400 ms with an easy-to-adjust knob design. A wide variety of input jacks switch between…

More information

Promotion: -24%
393 € 299.18 € with VAT 247.26 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The audio delay box is essential for the consistency of video and sound in live video production. The new Datavideo AD-10 audio delay box allows for precise synchronization of sound and video: the AD-10 provides a sound delay range of up to 400 ms with an easy-to-adjust knob design. A wide variety of input jacks switch between Mic/Line inputs and between condenser/dynamic mic inputs to meet various needs. In terms of output, the stereo RCA output is used for broad compatibility and can be switched between mono/stereo output. Datavideo AD-10 Audio delay box is packed with powerful features in a very compact and lightweight body, with clear LED indicators and a USB power supply. This AD-10 applies to any workflow system to make your video production process smoother.

  • Audio Input: 1x 3.5mm Jack Socket (Tip: Mic/Line (Left), Ring: Mic/Line (Right), Sleeve: GND), 16K ohms, Max Line input Level: +10dBV
  • Audio Output: 2x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
  • Audio Indicator: 2 Rows (Left / Right)
  • Audio Delay: Up to 400ms
  • Audio Sample Rates: 48 KHz
  • Features: Switchable for Microphone input or Audio Line input, Switchable Condenser / Dynamic Microphone, Stereo RCA output connectors for wide compatibility
  • Power: USB Type C (5V/1A)
  • Dimension (LxWxH): 151 x 88.5 x 30.7 mm
  • Weight: 0.18 kg

PACKAGE CONTENT

  • 1 x AD-10 product
  • 1 x RCA to 3.5mm Cable

SPECIFICATIONS

  • Audio Input: 1 x 3.5mm Jack Socket, ( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND), 16K ohms, MAX Line input Level: +10dBV
  • Audio Output: 2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
  • Audio Indicator: 2 Rows (Left / Right)
  • Audio Delay: Up to 400ms
  • Audio Sample Rates: 48 KHz
  • Special Feature: Switchable for Microphone input or Audio Line input, Switchable Condenser / Dynamic
  • Microphone: Stereo RCA output connectors for wide compatibility
  • Chassis: Compact and lightweight design
  • Power: USB Type C (5V/1A)
  • Dimension (LxWxH): 151 x 88.5 x 30.7 mm
  • Weight: 0.18 kg
  • Operating Temp. Range: 0~40 °C
