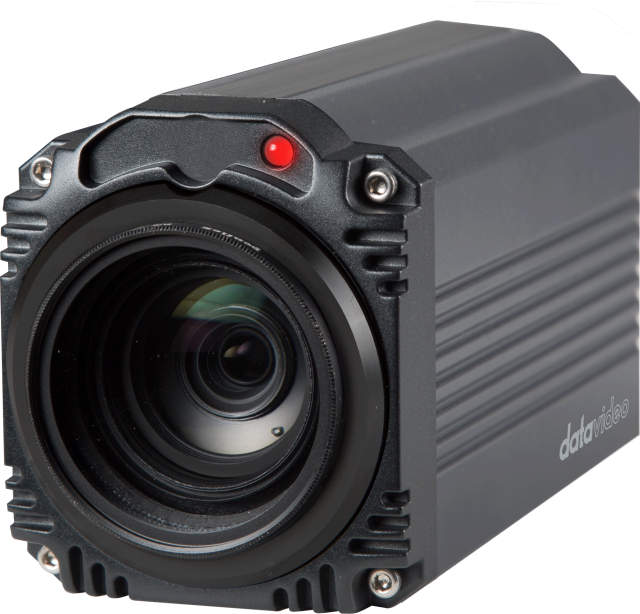

Datavideo BC-50 IP Block Camera

What's in the Box
1 x BC-50 main unit
1 x Thank You Card
1 x DC 12V power adaptor

BC-50 IP Block Camera

Video format
1080p 60/50/30/25
1080i 60/50
720p 60/50

Image Sensor
1/2.7" progressive scan CMOS sensor

Effective Pixels (approx.)
2.07 Mega pixels

S/N Ratio
55 dB

Min. Illumination
0.05 Lux @ (F1.8, AGC ON)

Electronic Shutter
1/30 ~ 1/10000 sec

Zoom Ratio
20x Optical zoom, 16x Digital zoom

Gamma Control
Yes

Iris Control
Auto / Manual

Digital Noise Reductions
2D & 3D

On-Screen Display (OSD)
English, Simplified Chinese, Traditional Chinese

White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K_1, 6500K_2, 6500K_3, One Push, Manual

AGC / Gain Control
Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)

Mirror / Flip Image
Yes

Focus Mode
Auto / Manual

Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7

Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation
Day & Night function

Video Output
3G/HD-SDI x1

Audio Input
3.5mm Jack (Stream Output Only)

Tally LED
Dual color (Red, Green)

Filter
M52.0 x 0.75 Thread with UV Protection

Protocol
VISCA, Pelco-D, Pelco-C

Remote Control Interface and Transmit Distance
RS-485: Transmit up to 1000m

Video Compression Format
H.265, H.264, MJEPG

Audio Compression Format
AAC

Network Protocol
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc

F/W Update
Ethernet

Tripod Mount
1/4-20 UNC

Options
PTR-10

Color
Dark blue

Dimension (LxWxH)
71 x 162 x 83 mm

Weight
0.7 kg

Operating Temp. Range
0~40 °C

Power
DC 12V 6W
