Datavideo TVS-1000A

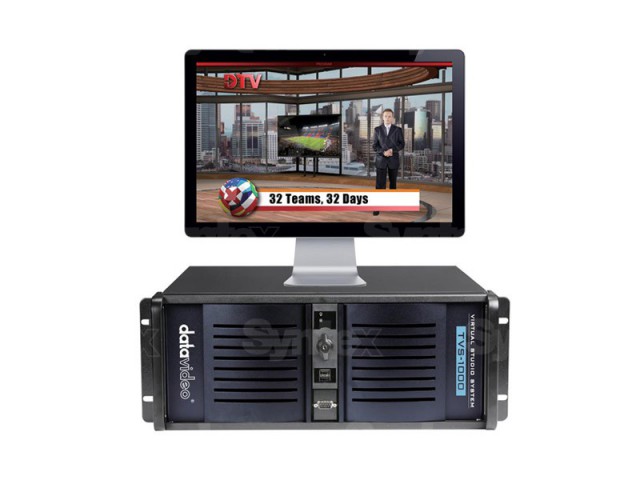

TVS-1000 is a versatile and easy to use trackless virtual studio solution from Datavideo. It supports up to 6 layers including a UV map for placement of virtual furniture, background images, and other customization options. The hardware has a HDD recorder built-in, as well as a streaming encoder for content delivery e.g. on Livestream.com.

Versatile and Easy to Use!
TVS-1000 is a very versatile, easy to use virtual studio solution. The virtual studio is a simple solution to create a computer generated backdrop, so that the viewer will think that the model is standing in a studio environment instead of a simple green screen. The backdrops are completely computer generated images, with support for numerous background images and support for downstream keyers like character generators and title overlays.

Customization Options

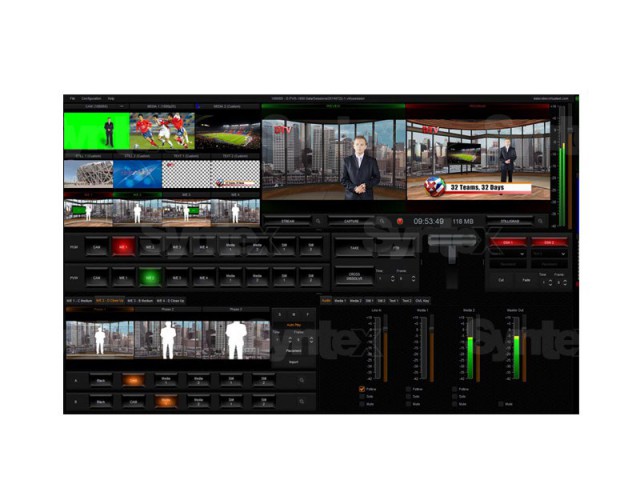

The TVS-1000 is trackless, so it will not adapt to the movement of the camera. Due to this, the end-user will not need expensive tracking equipment (like a digital jib, for instance) to use the TVS-1000. In the software, it is possible to zoom and pan into three phases. This will suggest that the virtual camera is moving. The TVS-1000 software supports up to 6 layers, including a UV map, so it is possible to place a virtual desk or sofa on the virtual set. There is also support for background images, like a logo on the floor or a TV in the background, so you can customize your own virtual studio. The TVS-1000 will also have a support for downloading virtual studio sets from the online marketplace.

Recording and Streaming Functionality
There is no longer need for a separate recorder, as the TVS-1000 has a hard drive recorder built in. It even has a streaming encoder built in, so streaming your show to different content delivery networks like Livestream.com is very easy to set up!



Features
– Multi-language User Interface.
– Multiple Preview Monitoring.
– Professional Chroma Key Wizard.
– Trackless Virtual Technology.
– User-Friendly Character Generator.
– High Quality Video Recording.
– Virtual Set Maker.

Virtual Studio

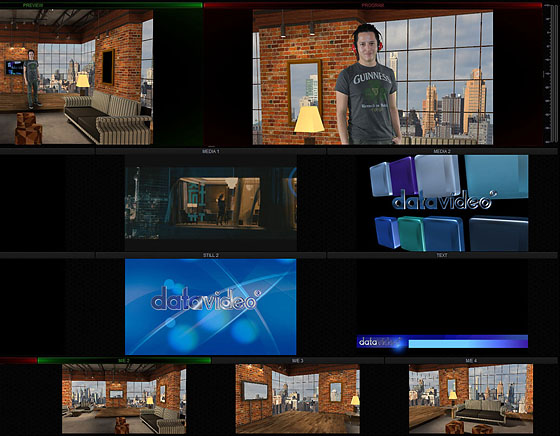

– One camera input: four virtual angles simulating a multi-camera studio production.
– Each angle supports 3 phases (pan, tilt, zoom movements).
– High quality Chroma Key function delivers perfect keying.

Switcher
– Switching function between live camera input, four virtual cameras, video clips and still pictures.
– Built-in media library for easy selection of video clips and pictures.
– 2 x DSK for animation and CG overlay to enrich message delivery.

Character Generator
– Built-in character generator
– CG content can be imported and modified quickly and easily in live.
– Simple and user-friendly.

Recorder
– Uses highly-efficient H.264 and MPEG 2 recording format.
– Recordes to removable hard disks or into system.

Web Streaming
– Supports streaming to Adobe Flash encoder, Ustream and Livestream.
– Stream directly, with no need for an external encoder.
– Push to stream - one button simplicity.
