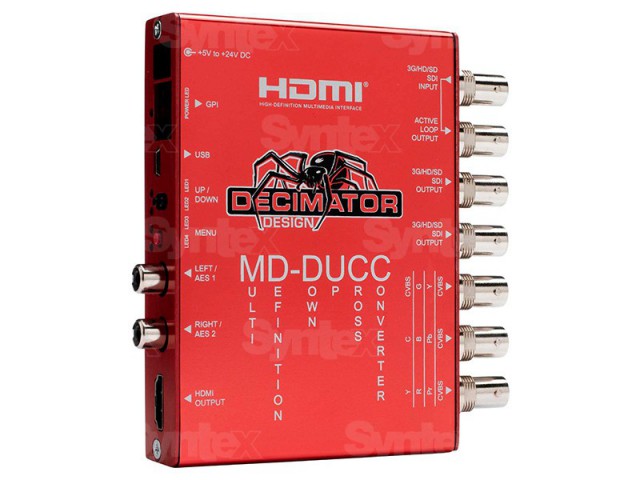

Decimator Design MD-DUCC

The MD-DUCC is the latest converter to come from Decimator Design. A low cost converter to convert ANY video format/frame rate to ANY other video format/frame rate!

More information

599 € with VAT 495.04 € without VAT
-+
Availability
on request
Product description

Product description

The MD-DUCC is the latest converter to come from Decimator Design. A low cost converter to convert ANY video format/frame rate to ANY other video format/frame rate!

The MD-DUCC is the latest converter to come from Decimator Design. A low cost converter to convert ANY video format/frame rate to ANY other video format/frame rate!

Features:

  • Auto detects 3G, HD or SD (26 formats in total)
  • Full 10-bit data path and multipoint interpolation
  • Professional motion-adaptive de-interlacing
  • True Down Up Cross Conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no  matter what the input format is
  • Complete 16:9, 14:9 and 4;3 Aspect Ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD nad SD to SD conversions
  • Full 16-Channel Audio Metering
  • Adjustable Graticules Generator
  • Text Overlays
  • HDMI Output
  • Selectable analogue video with 3 x CVBS / YPbPr / RGB / CVBS & YC
  • 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
  • GPI on RJ-45 for Tallies
  • 3G/HD/SD-SDI Active Loop-Through Output
  • De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
  • LEDs for status and buttons for basic configuration
  • USB port for control and firmware updates
  • Locking DC Power Socket
  • The following is also included with the unit: power supply, HDMI cable, USB cable and Mounting Bracket
Parameters

Parameters

Manufacturer: Decimator Design
Category: Signal converters
