Decimator Design MD-QUAD v3

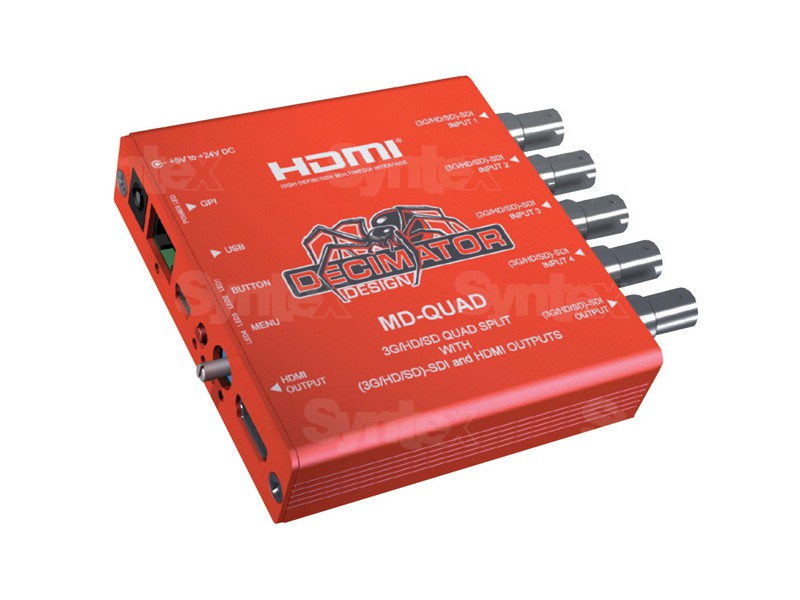

(3G/HD/SD)-SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs. The MD-QUAD from Decimator Design is a low cost, miniature 3G/HD/SD-SDI 4 to 1 Quad Splitter or 4 to 1 input multiplexer, featuring linked (3G/HD/SD)-SDI and HDMI Outputs.

The MD-QUAD v3 from Decimator Design is a low cost, miniature 3G/HD/SD-SDI 4 to 1 Quad Splitter or 4 to 1 input multiplexer, featuring linked (3G/HD/SD)-SDI and HDMI Outputs.

 Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer

• Selectable output format in Quad-Split mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 8-Channel Audio metering for each quadrant with:
• The first two audio groups individually selectable
• Vertical or Horizontal Bars
• AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
• Bar & Float, Bar only or Float only
• Transparency adjustment
• Separate Bar and Float Ballistics control
• Adjustable Reference level
• Red, Yellow and Green Range adjustment
• Bar thickness adjustment
• Margin adjustment
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant
• All 4 inputs can be displayed simultaneously on a single output
• Pass-Through mode allowing any of the 4 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• On-Screen 16 character IDs (UMDs) for each input
• A single tallies for each input is available from the GPI
• NEW! In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
• NEW! On-screen audio id pop-up when selection audio source in Quad-Split mode
• NEW! On-screen display pop-up when using the rotary to allow for use when without a PC
• NEW! Professional 3G/HD/SD Test Pattern Generator featuring 54 Test Patterns including Luma and Chroma Zone-plates
• NEW! Audio Tone Generator
• An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
• USB port for control and updates
• GPI on RJ-45 for remote switching
• Locking DC Power Socket
• The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
