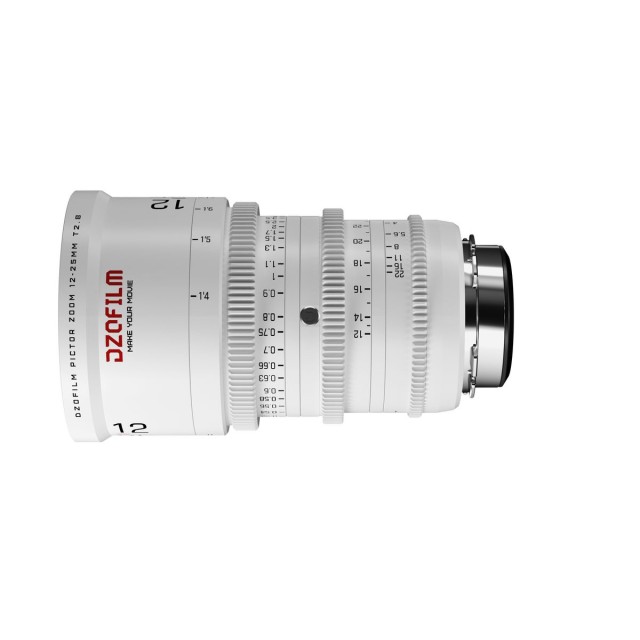

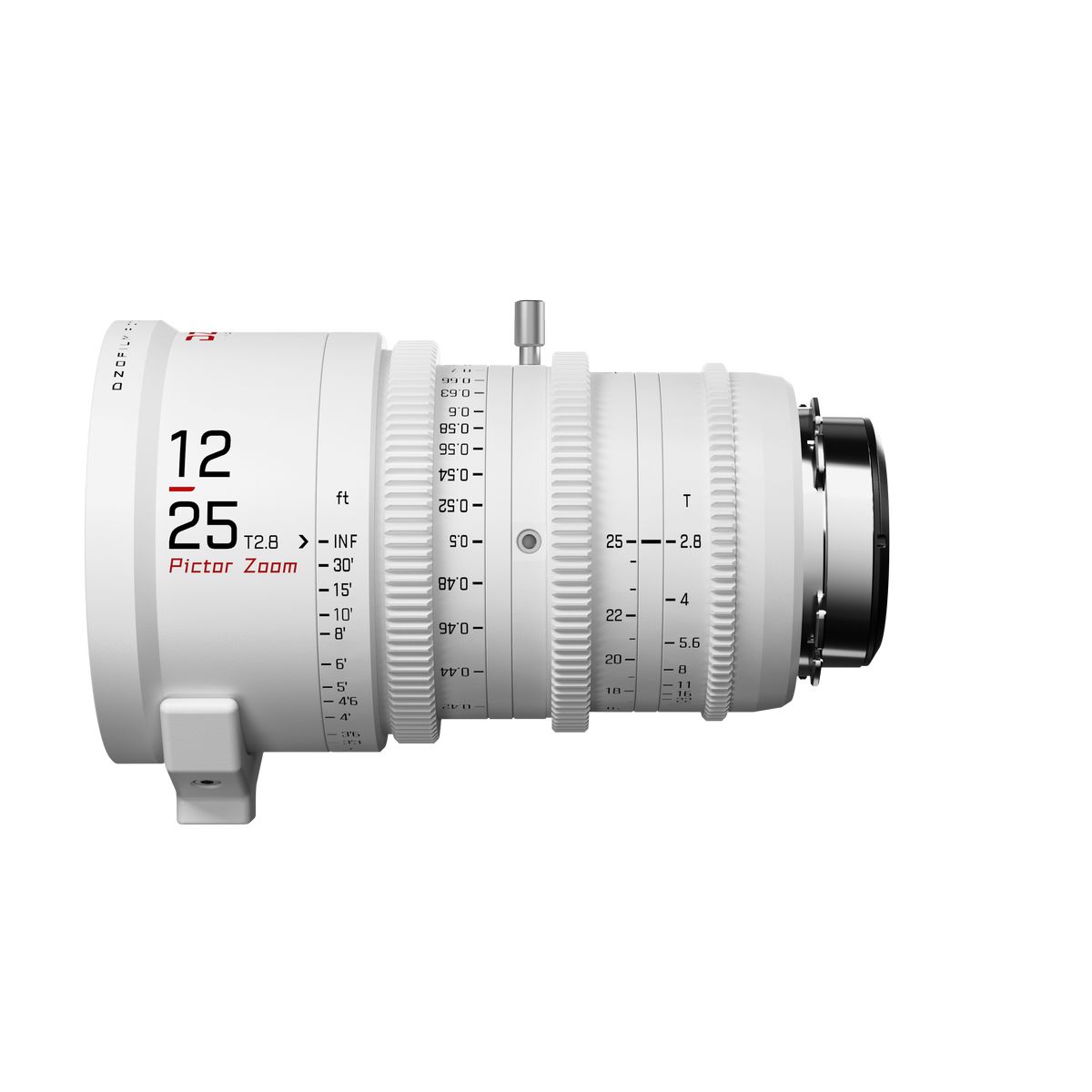

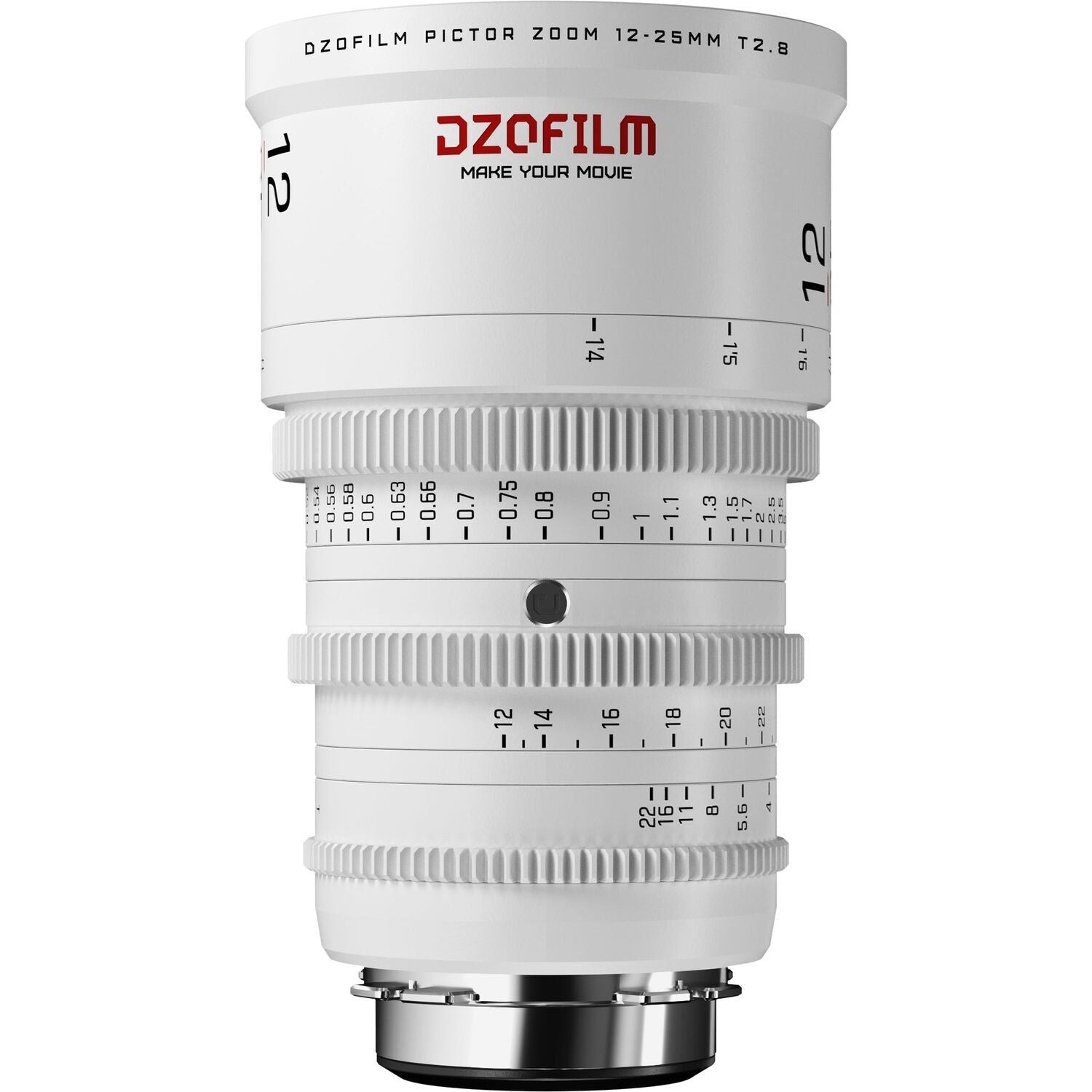

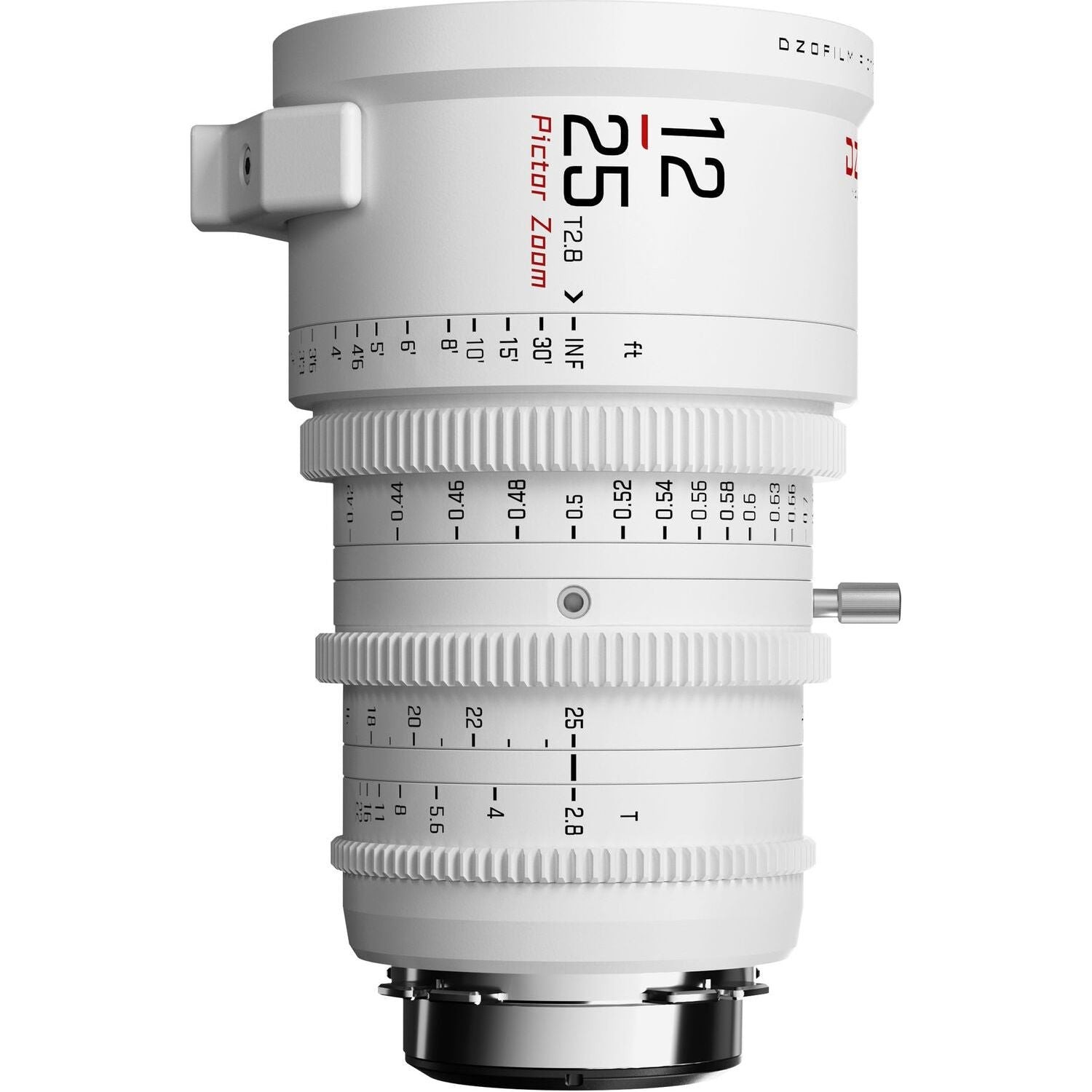

DZOFilm Pictor 12-25mm T2.8 (PL/EF Mount) (White)

The DZOFilm Pictor 12-25mm T2.8 is a parfocal Super35 cine lens featuring a fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers…

More information

Call us for pricing information
Availability
on request
Product description

Product description

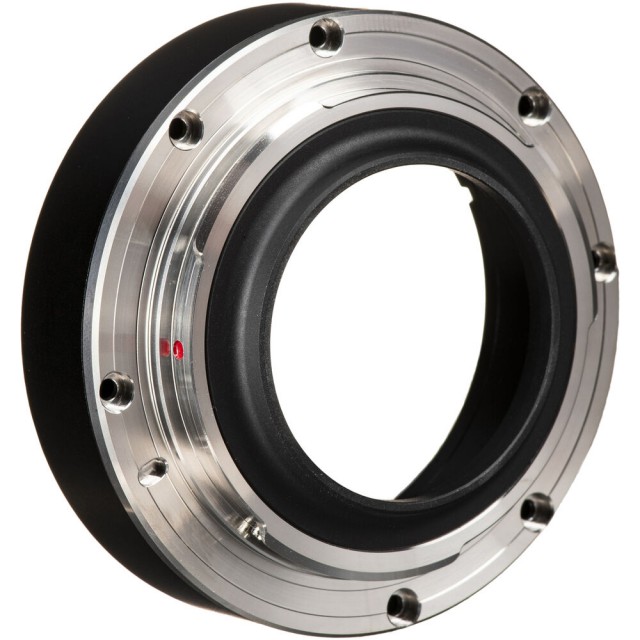

The DZOFilm Pictor 12-25mm T2.8 is a parfocal Super35 cine lens featuring a fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super 35 image circle, comes standard with an interchangeable PL mount, and includes a Canon EF mount.

The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.

  • Key Features
  • Maintains focus throughout the zoom range
  • Minimal breathing
  • 16-blade iris produces round out-of-focus highlights
  • T2.8 to T22 aperture
  • 95mm front diameter
  • Compatible with standard cine-style lens accessories
  • Mount: PL, EF
  • T-Stop: T2,8-T22
  • Image Circle: 31,5 (S35)
  • Construction: 21/15
  • Close Focus: 0,4 m
  • Iris Control: 64,4°
  • Focus Control: 270°
  • Zoom Control: 100°
  • Front Dia.: 95 mm
  • Length: 150 mm (PL), 159 mm (EF)
  • Iris Blades: 16
  • Filter Size: M86x0,75
  • Gear Pitch: M0,8
  • Material: Aluminum Alloy
  • Weight: Approx. 1600g
Parameters

Parameters

Manufacturer: DZO Optics
Category: Lenses

Main parameters

BayonetPL
BayonetEF
Lens TypeZoom
Lens suitable forAPS-C
Lens suitable forSuper 35
Aperture (f)2.8
Minimal focal length12mm
Maximum focal length25mm
ZoomYes

Other parameters

SeriesDZOFilm Pictor
