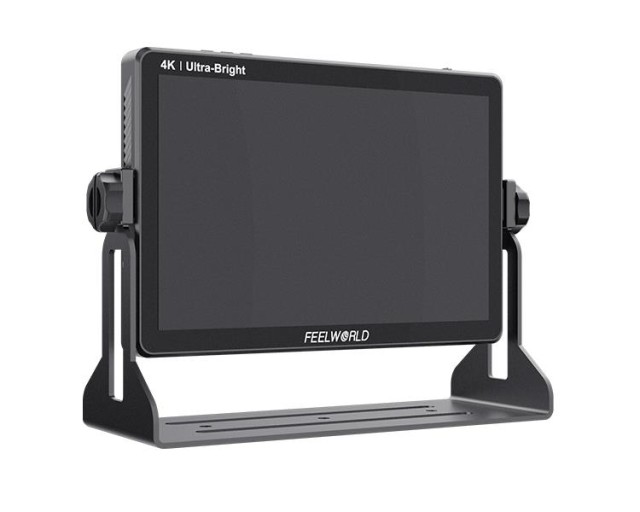

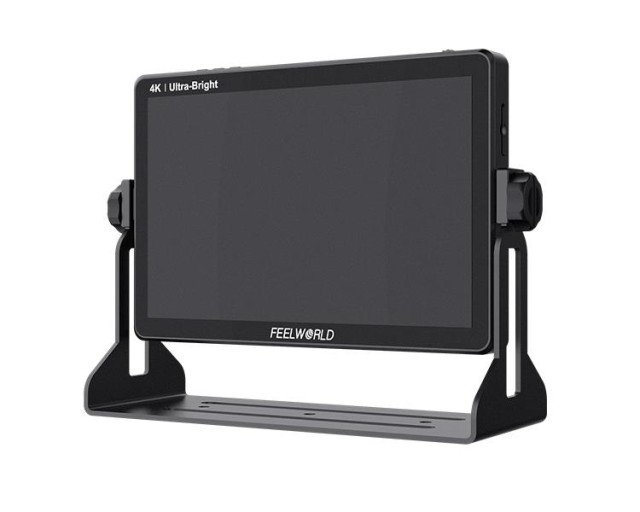

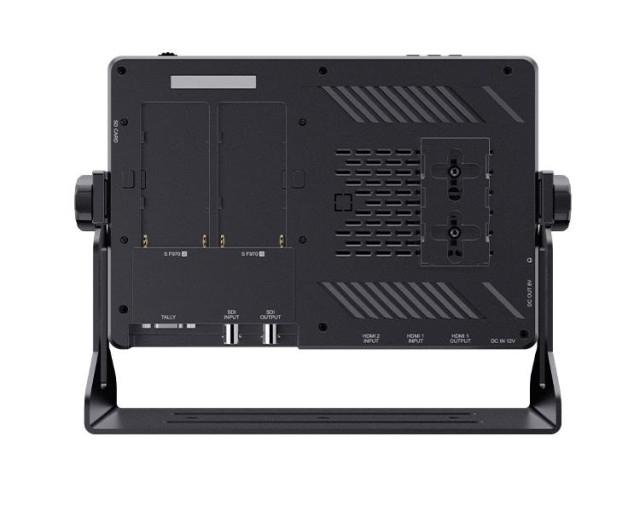

FEELWORLD LUT11S is a 10.1-inch with full touch screen, ultra brightness 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz HDMI signal input and output. Provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, making the operation easier. There is a F970 external install and power kit on the rear of LUT11S, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The dual battery plates design can install two F970 batteries at the same time for long-time power supply even outdoors. Ideal for crew field shooting, monitoring and post-production.

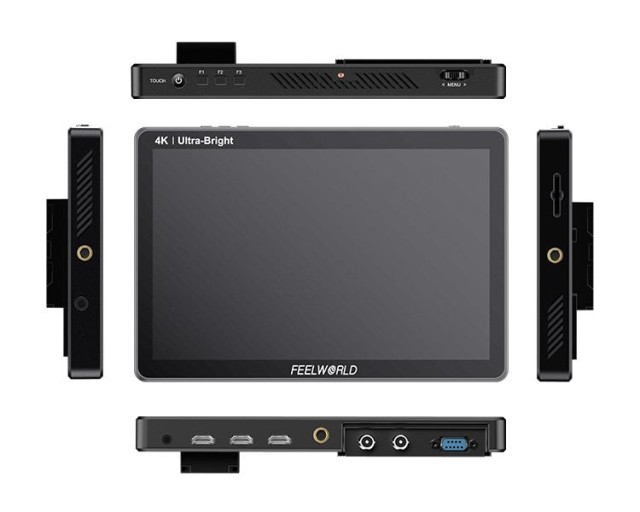

* 10.1-inch 1920x1200 full HD IPS screen
* Touch screen menu operation, improve shooting efficiency
* Ultra-bright 2000nit, clearly visible in the sun
* Light sensor auto dimming
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
* Supports HDR monitoring, what you see is what you get
* Dual HDMI inputs support up to 4K@60Hz
* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Built-in Tally Indicators (Red, Green, Yellow)
* Stereo Earphone output

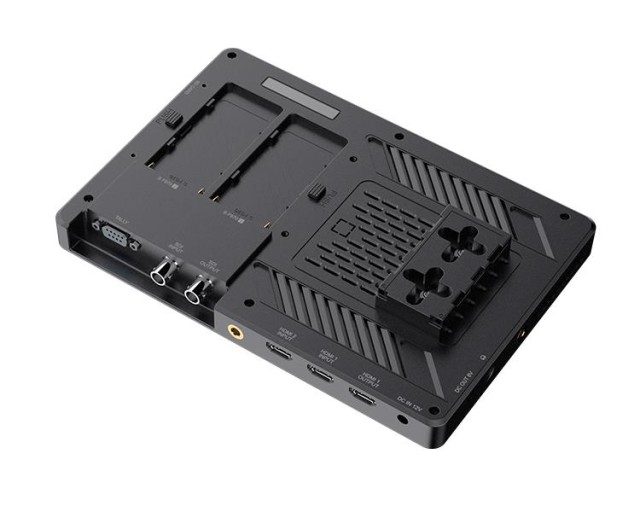

* DC 8V power out to power your DSLR camera or mirrorless camera
User LUT Cube Import
Provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to monitor by SD card.

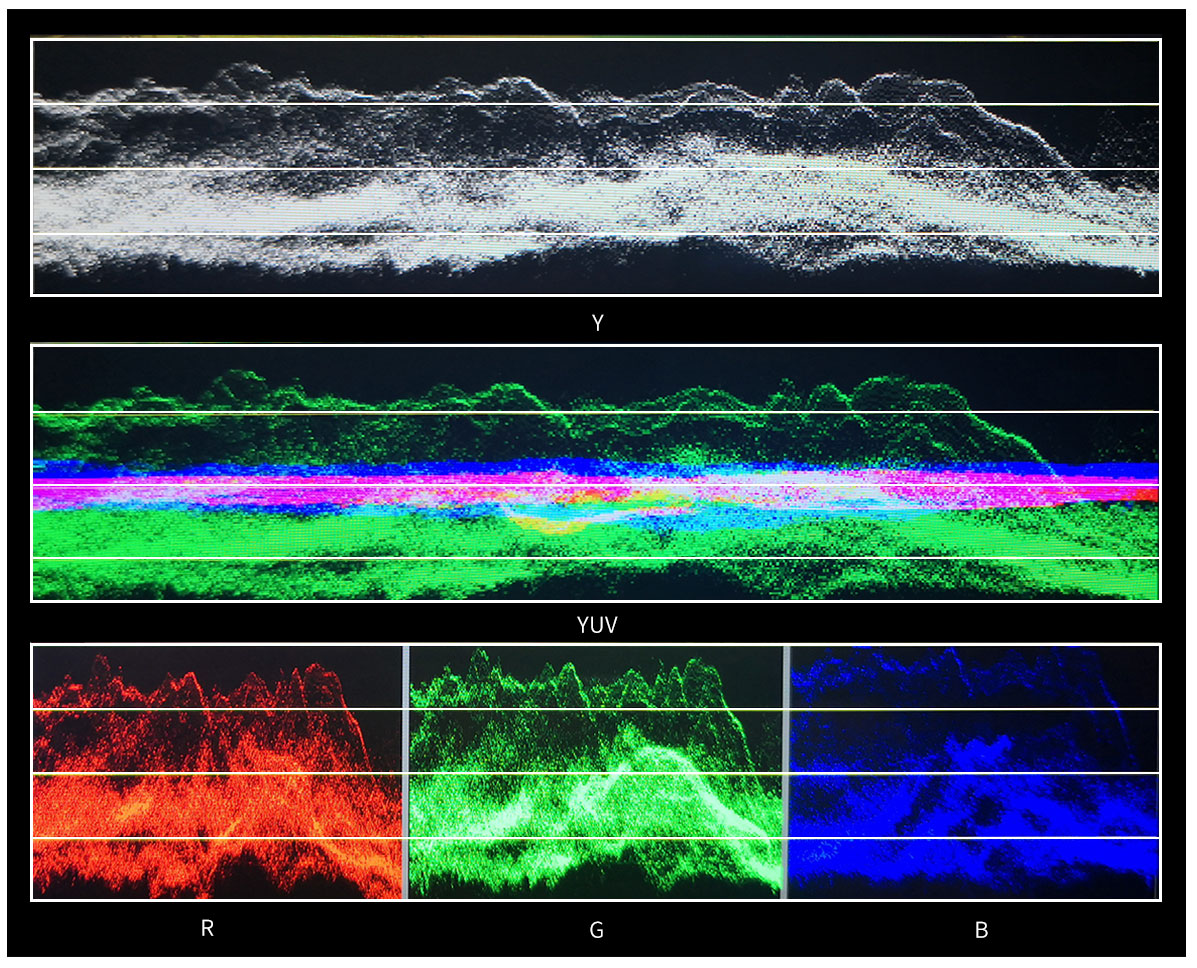

Video Analysis Assistant Pattern, Waveform / Vector scope / Histogram, Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.![](http://www.feelworld.cn/UpLoadFiles/CN_Product_GBJJSR/2020/3/202003091523080997.jpg)

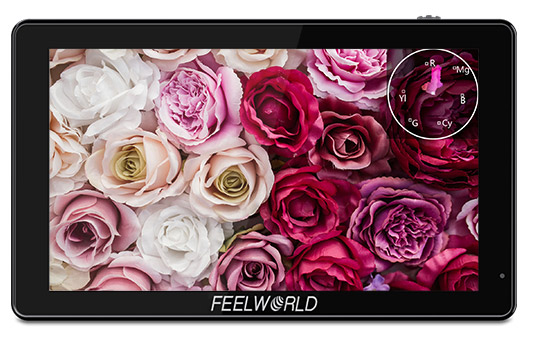

VectorscopeVector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
![](http://www.feelworld.cn/UpLoadFiles/EN_Product_SYJSR/2021/10/202110090847541305.jpg)
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.

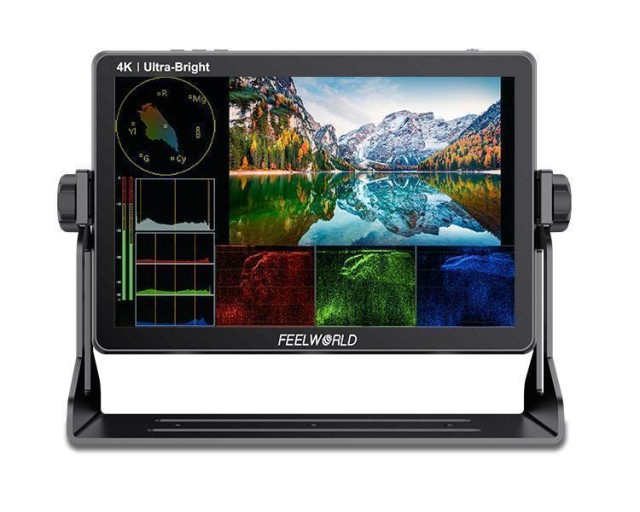

All Scopes Mode
This mode shrinks your video image to approximately the size of a 10.1" display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.
Audio Meter Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Under SDI audio, it supports 4-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported..
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

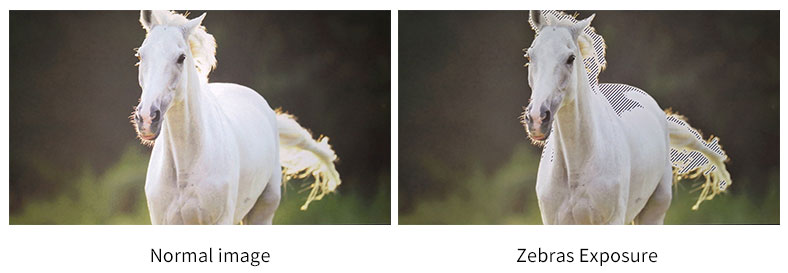

Exposure (Zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. There is a 1%-100% zebra value that can be adjusted.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or gray pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Zoom In (100%~500%)
Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.
Anamorphic Mode
Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid
Nine grid is the most common and basic composition method. The area of the picture is divided into nine equal grids.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker
Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.
SPECIFICATIONS
Display Spec.
Model |
LUT11S |
Screen Size |
10.1" IPS |
Resolution |
1920x1200 pixels |
Pixel Pitch |
0.113(W) x 0.113(H) (mm) |
Aspect Ratio |
16:10 |
Brightness |
2000cd/m² |
Contrast Ratio |
800:1 |
Backlight |
LED |
Viewing Angle |
85°/85°(L/R) 85°/85°(U/D) |

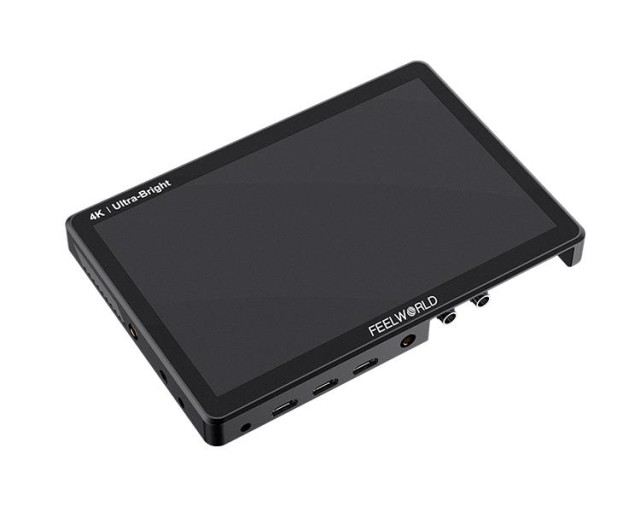

Input
2 X HDMI |
HDMI |
1 X SDI |
3G-SDI |
1 X Tally |
9 Pin Connect |
Output
1 X HDMI |
HDMI |
1 X SDI |
3G-SDI |
1 X DC |
Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
Audio
Audio |
3.5mm Stereo Headphone |
SDI Input Support Format
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080i(60/59.94/50) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
2048x1080i (60/59.94/50) |
2048x1080p (60/59.94/50/30/29.97/25/24/23.98) |
SDI Output Support Format
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080i(60/59.94/50) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Input/ Output Support Format
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
3840x2160p (60/50/30/29.97/25/24/23.98) |
4096×2160p (60/50/30/29.97/25/24/23.98) |
General
Input Voltage |
DC7~24V |
Power Consumption |
≤28W |
Working Temperature |
-10°C~50°C |
Storage Temperature |
-20°C~60°C |
Install Way |
1/4"-20 Thread Socket ( Left, Right, Bottom) |
Unit Size |
242Lx156Hx23D(mm) |
Unit Weight |
810g |
Color Box Size |
265L*110W*212H(mm) |
Outer Carton Qty |
10 |
Outer Carton Size |
590*270*480 (mm) |
Gross Weight |
kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload |
* Support Touch Menu |
* Parade (RGB, YUV, Y) |
* All Waves |
* Vector |
* RGB Histogram |
* Brightness Histogram |
* Embedded Audio |
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) |
* False Colors |
* Zebra Exposure (1%~100% adjustable) |
* Check Field (Red, Green, Blue, Gray) |
* Scan Mode (Under Scan, Over Scan) |
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag) |
* Image Flip (H, V, H/V) |
* Image Freeze |
* Center Marker |
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1) |
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
* Marker Color (red, green, blue, white, black, yellow) |
* Color Temperature Adjustment (5600K, 6500K, 9300K, user) |
* Nine Grid |
* Zoom (100%~500%) |
* Aspect Ratio |
* Pixel to Pixel |
