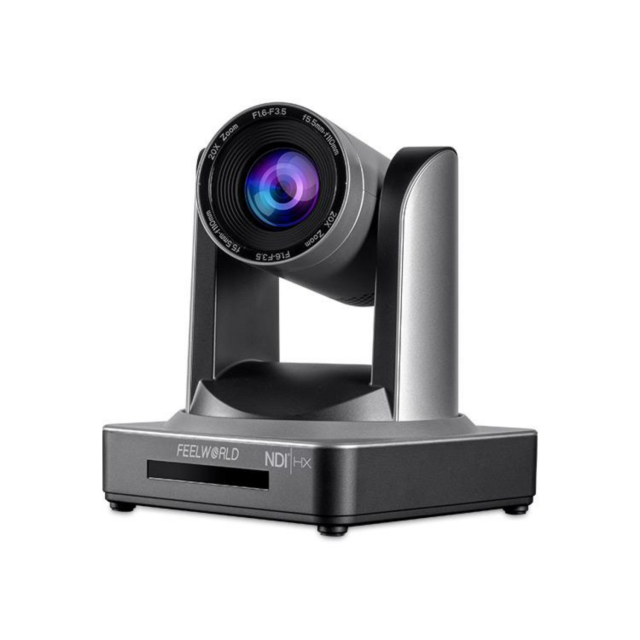

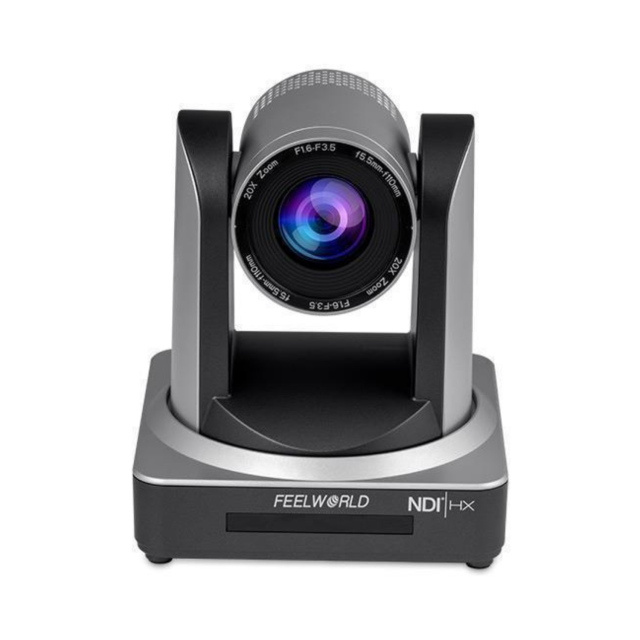

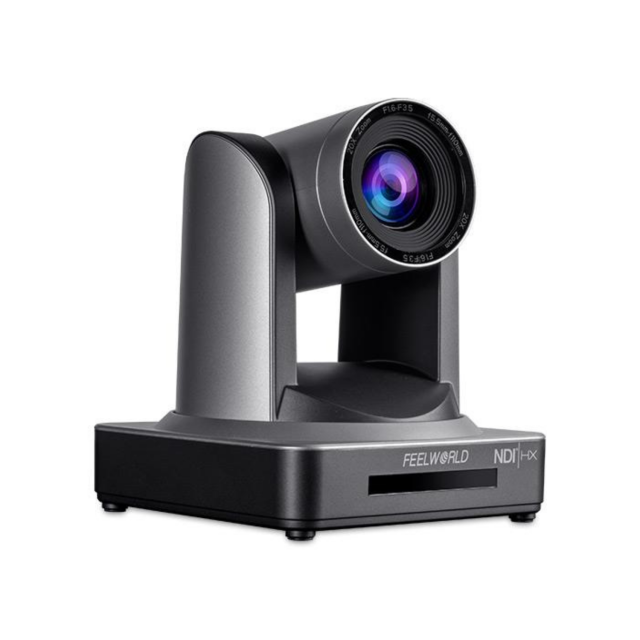

FeelWorld NDI20X NDI PoE PTZ Camera with 20x Optical Zoom

FEELWORLD NDI20X is a full HD PTZ camera with 20x optical zoom, simultaneous NDI/IP, 3G-SDI, HDMI video output interfaces. Supports PoE , which allows you easily transmit all the informations and power for device only by one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting and churches.

More information

1 169 € with VAT 966.12 € without VAT
-+
Availability
Backordered 2 pcs - 20.12.2024
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

FEELWORLD NDI20X is a full HD PTZ camera with 20x optical zoom, simultaneous NDI/IP, 3G-SDI, HDMI video output interfaces. Supports PoE , which allows you easily transmit all the informations and power for device only by one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting and churches.

Simultaneous HDMI, 3G-SDI, and IP/NDI video output and multiplel network Protocol allow NDIX20 to easlily live streaming to your favorite platforms, such as YouTube, Fackbook, Twitch, etc.

NDI20X comes with NDI interface transmission protocol, with low-latency video and audio transmission, and reduces wiring costs and deployment time, satisfies the needs of studios and on-site multi-camera video production.

The PTZ camera supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming and control.

The high resolution 1080P@60fps, outstanding color reproduction,20X zoom delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.

The low-light performance technology can automatically adjust the brightness level. Every moment can be seen clearly even in dark or back light condition. Outstanding performance and video quality make live recording extremely convenient.

IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.

Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.

Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°~+90°).

Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

10 preset positions by IR remote controller,that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via WEBSEVER

You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.

NDI20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every Live Video Production.

NDI20X is widely use for church streaming, video confrence, sports events, online education, ect.

PACKAGE CONTENT

  • 1× Video Camera
  • 1× Remote Control
  • 1× RS232 Control Cable
  • 1× RS485 Terminal Block
  • 1× Power Adapter
  • 1× EU Standard Power Cable
  • 1× US Standard Power Cable
  • 1× Manual

SPECIFICATIONS

Camera Parameters

  • Model NDI20X
  • Sensor 1/2.9 inch high quality CMOS sensor
  • Effective Pixels 2.07 megapixel, 16:9
  • Output Resolutions 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
  • View Angle 3.3°~ 54.7°
  • Focus Length f=5.5~110mm
  • AV F1.6 ~ F3.5
  • Optical Zoom 20X
  • Minimum Illumination 0.5 lux (F1.8, AGC ON)
  • DNR 2D & 3D
  • White Balance Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Focus Auto / Manual/ One Push Focus
  • Exposure Auto / Manual
  • BLC On/Off
  • WDR OFF/Dynamic level adjustment
  • Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR >55dB

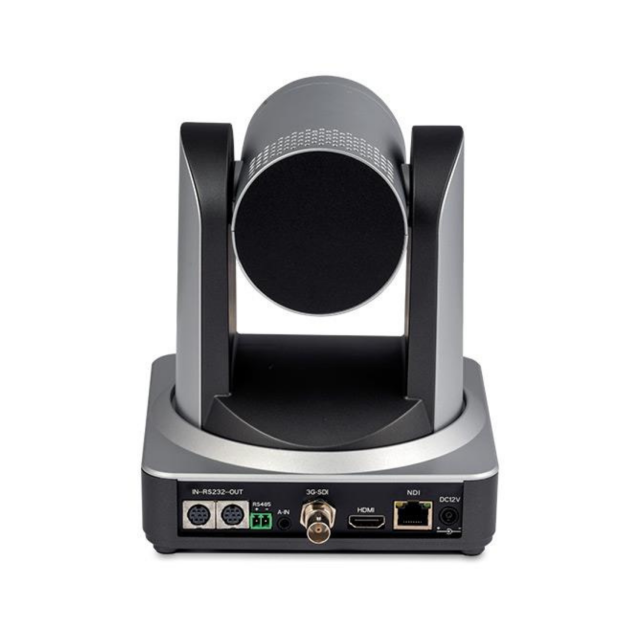

Input/output Interface

  • Video Interface HDMI, 3G-SDI, NDI
  • Image Code Stream Double stream outputs simultaneously
  • Video Compression Format H.264, H.265
  • Audio Interface Double track 3.5mm linear input
  • Audio Compression Format AAC、MP3、G.711A
  • Control Interface RS232 (IN/OUT), RS485
  • Control Protocol VISCA/Pelco-D/Pelco-P
  • HD IP Interface 100M IP port(10/100BASE-TX)
  • Network Protocol RTSP, RTMP, ONVIF, GB/T28181, NDI
  • Power Interface HEC3800 outlet (DC12V)

PTZ Parameters

  • Pan Rotation -170°~+170°
  • Tilt Rotation -30°~+90°
  • Pan Control Speed 0.1 ~60°/sec
  • Tilt Control Speed 0.1~30°/sec
  • Preset Speed Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number 255 presets (10 presets via remote control)
  • Other Parameters
  • Input Voltage 12V/1.5A
  • Power Consumption Maximum: 12W
  • Stored Temperature -40℃~+70℃
  • Storage Humidity 20%~90%
  • Working Temperature -10℃~+50℃
  • Working Humidity 20%~80%
  • Dimension (W*H*D) 150mm×150mm×167.5mm
  • Unit Weight 1.4kg
  • Outer Carton QTY 4pcs
  • Outer Carton Size 52*29*50cm
  • Gross Weight 9.85kgs
Parameters

Parameters

Manufacturer: Feelworld
Category: PTZ

Main parameters

Zoom20x
OutputHDMI
OutputNDI
Output3G SDI

Other parameters

FPS1080P 60fps
