Model Name |

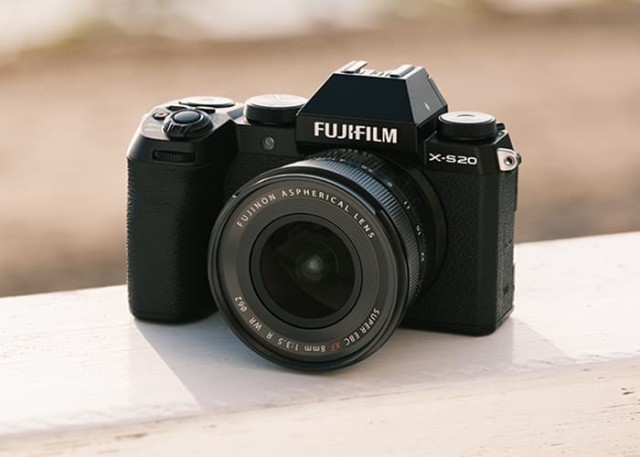

FUJIFILM X-S20 |
Lens mount |
FUJIFILM X bayonet |
Image sensor |
23.5 x 15.6 mm (APS-C) X-Trans CMOS 4 with primary colour filter |
Effective pixel count |
26.1 million pixels |
Sensor cleaning system |
Ultra Sonic Vibration |
Image processing engine |
X-Processor 5 |
Storage media |
SD card (-2 GB) / SDHC card (-32 GB) / SDXC card (-2 TB) / UHS-I / UHS-II / Video Speed Class V90 *Check the Fujifilm website (https://fujifilm-x.com/support/compatibility/cameras/) for memory card compatibility. |
Still image file format |
DCF |
In accordance with the Camera File System Design Rules (DCF2.0) |
|
JPEG |
Exif Ver.2.32*1 |
|
HEIF |
4:2:2 10bit |
|
RAW |
14bit RAW (original RAF format) |
|
TIFF |
8bit / 16bit RGB (in-camera raw format conversion only) |
Number of recorded pixels |
[L] |
〈3:2〉 6240 x 4160 〈16:9〉 6240 x 3512 〈1:1〉 4160 x 4160 |
|
[M] |
〈3:2〉 4416 x 2944 〈16:9〉 4416 x 2488 〈1:1〉 2944 x 2944 |
|
[S] |
〈3:2〉 3120 x 2080 〈16:9〉 3120 x 1760 〈1:1〉 2080 x 2080 |
Panorama |
[L] |
〈Vertical〉 9600 x 2160 〈Horizontal〉 9600 x 1440 |
|
[M] |
〈Vertical〉 6400 x 2160 〈Horizontal〉 6400 x 1440 |
Sensitivity |
Static image |
Standard output: AUTO1 / AUTO2 / AUTO3 / ISO160~12800 (1/3 step) Extended Output: ISO80 / ISO100 / ISO125 / ISO25600 / ISO51200 |
|
Film |
Standard Output: AUTO / ISO125~12800 (1/3 step) Extended Output: ISO25600 |
Exposure control |
TTL 256-zone metering / Multi / Spot / Average / Center Weighted |
Exposure mode |
P (program AE) / A (aperture priority AE) / S (shutter speed priority AE) / M (manual exposure) |
Exposure Compensation |
Still |
-5.0EV~+5.0EV step 1/3EV |
|
Filming |
-2.0EV~+2.0EV step 1/3EV |
Image Stabilizer |
Mechanism |
Image sensor shift mechanism with five-axis compensation |
|
Compensation effect |
7.0 degrees *based on CIPA standard *Only jitter in the direction and against the direction of rotation *With XF35mmF1.4 R lens attached |
|
Digital image stabilization |
Yes (video mode only) |
|
IS MODE BOOST |
Yes (movie mode only) |
Shutter type |
Focal plane shutter |
Shutter speed |
Mechanical shutter |
P mode: 30sec. 30 sec. to 1/4000sec. A mode: 30sec. to 1/4000sec. S/M mode: 15min. to 1/4000sec. Bulb: up to 60min. |
|
Electronic shutter |
P mode: 30sec. up to 1/32000sec. A mode: 30sec. 1/32000sec. S/M mode: 15min. to 1/32000sec. Bulb: 1sec. Fixed |
|
Mechanical + electronic shutter |
P mode: 30sec. 1/32000sec. A mode: 30sec. 1/32000sec. S/M mode: 15min. to 1/32000sec. Bulb: up to 60min. *Mechanical shutter operates up to 1/4000sec. |
|
Filming |
6.2K: 1/4000sec. up to 1/24sec. DCI4K/4K: 1/4000sec. up to 1/24 sec. FHD: 1/4000 sec. to 1/24 sec. *For some settings, shutter speeds longer than the frame rate cannot be selected. |
|
Synchronized shutter speed for flash |
Mechanical shutter: 1/180 sec. or slower |
Continuous shooting |
CH Electronic Shutter Approximately 30 fps (1.25x crop) (Number of recordable frames: JPEG 407 frames, Compressed RAW 88 frames, Lossless Compressed RAW 62 frames, Uncompressed RAW 28 frames, Compressed RAW + JPEG 41 frames, Lossless Compressed RAW + JPEG 36 frames, Uncompressed RAW + JPEG 28 frames) CH Electronic Shutter Approx. 20 fps (1.25x crop) (Recordable frame rate: JPEG 1000+ frames, Compressed RAW 104 frames, Lossless Compressed RAW 72 frames, Uncompressed RAW 30 frames, Compressed RAW + JPEG 66 frames, Lossless Compressed RAW + JPEG 53 frames, Uncompressed RAW + JPEG 30 frames) CH Electronic Shutter Approx. 10 fps (1.25x crop) (Number of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless Compressed RAW 215 frames, Uncompressed RAW 40 frames, Compressed RAW + JPEG 163 frames, Lossless Compressed RAW + JPEG 102 frames, Uncompressed RAW + JPEG 40 frames) CH Electronic Shutter Approximately 20 frames per second (Number of recordable frames: JPEG 256 frames, Compressed RAW 79 frames, Lossless Compressed RAW 44 frames, Uncompressed RAW 28 frames, Compressed RAW+JPEG 68 frames, Lossless Compressed RAW+JPEG 33 frames, Uncompressed RAW+JPEG 28 frames) CH Electronic shutter Approximately 10 frames per second (Recordable frames: JPEG 1000+ frames, compressed RAW 341 frames, lossless compressed RAW 82 frames, uncompressed RAW 32 frames, compressed RAW+JPEG 89 frames, lossless compressed RAW+JPEG 51 frames, uncompressed RAW+JPEG 32 frames) CH Electronic shutter Approximately 8 frames per second (Number of recordable frames: JPEG 1000+ frames, compressed RAW 1000+ frames, lossless compressed RAW 90 frames, uncompressed RAW 35 frames, compressed RAW+JPEG 94 frames, lossless compressed RAW+JPEG 57 frames, uncompressed RAW+JPEG 33 frames) CH Mechanical Shutter Approximately 8 frames per second (Number of recordable frames: JPEG 1000+ frames, compressed RAW 1000+ frames, lossless compressed RAW 90 frames, uncompressed RAW 35 frames, compressed RAW+JPEG 94 frames, lossless compressed RAW+JPEG 57 frames, uncompressed RAW+JPEG 33 frames) CL Approximately 5.0 frames per second (Number of recordable frames: JPEG 1000+ frames, compressed RAW 1000+ frames, lossless compressed RAW 1000+ frames, uncompressed RAW 49 frames) CL Approx. 4.0 fps (Recordable frames: JPEG 1000+ frames, compressed RAW 1000+ frames, lossless compressed RAW 1000+ frames, uncompressed RAW 67 frames) CL Approx. 3.0 fps (Number of recordable frames: JPEG 1000+ frames, compressed RAW 1000+ frames, lossless compressed RAW 1000+ frames, uncompressed RAW 1000+ frames) Electronic shutter, 1.25x crop Approx. 30 fps (Number of recordable frames: Half-press 30 frames, Full-press 75 frames, Total 105 frames) Preset Electronic shutter, 1.25 x crop Approx. 20 fps (Recordable frames: Half-press 20 frames, Full-press 576 frames, Total 596 frames) Electronic shutter, 1.25x crop Approx. 10 fps (Recordable frames: Half-press 10 frames, Full-press 1000+ frames, Total 1000+ frames) Preset Electronic Shutter Approximately 20 fps (Number of recordable frames: Half-press 20 frames, Full-press 998 frames, Total 1018 frames) Electronic shutter Approximately 10 fps (Number of recordable frames: Half-press 10 frames, Full-press 1000+ frames, Total 1000+ frames) Preset Electronic Shutter Approximately 8 fps (Number of recordable frames: Half-press 8 frames, Full-press 1000+ frames, Total 1000+ frames) *The number of recordable frames depends on the recording medium *Continuous shooting speed depends on the environment and the number of frames to be captured |
Drive mode |
Bracketing AE |
2 frames / 3 frames / 5 frames / 7 frames / 9 frames *1/3EV increments, up to ±3EV increments |
|
Bracketing with film simulation |
Choice of any 3 types of film simulation |
|
Dynamic range bracketing |
100% / 200% / 400% |
|
ISO sensitivity bracketing |
±1/3EV / ±2/3EV / ±1EV |
|
White balance bracketing |
±1 / ±2 / ±3 |
|
Focus Bracketing |
AUTO / MANUAL |
|
Multiple Exposure |
Yes (max. 9 shots) / additive / average / light / dark |
|
HDR mode |
AUTO / 200% / 400% / 800% / 800% + |
|
Advanced filter |
Toy camera / Miniature / Pop color / High key / Low key / Dynamic tone / Soft focus / Partial color (red / orange / yellow / green / blue / purple) |
Focus |
Mode |
Single Auto Focus / Continuous Auto Focus / MF |
|
Type |
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
|
Low light performance |
Contrast: -4.0EV XF50mmF1.0 connected Phase Detection: -7.0EV XF50mmF1.0 connected |
|
AF frame selection |
Single-point AF: 13x9 / 25x17 (AF frame resizable) Zone AF: 3x3 / 5x5 / 7x7 of 117 areas on 13×9 grid Wide Angle/Tracking AF: Yes (AF-S: Wide Angle / AF-C: Tracking) All: Yes |
|
Face/Eye Detection |
Yes |
|
Subject detection |
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Aircraft/Train) |
Flash |
Built-in flash |
Manual pop-up flash (Super Intelligent Flash) Directional number: approx. 7 (ISO200・m) / approx. 5 (ISO100・m) Synchronization. Mode: 1st aperture / 2nd aperture Flash mode: TTL (TTL AUTO / STANDARD / SLOW SYNCHRONIZATION ) / MANUAL / COMMANDER / OFF |
|
Flash with socket |
Sync. Mode: 1st Aperture / 2nd Aperture / AUTO FP (HSS) Flash mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF |
Hot shoe |
Yes (compatible with dedicated TTL flash) |
Viewfinder |
EVF: 0.39" OLED colour viewfinder, approx. 2.36 million dots Viewing area coverage vs. shooting area: Approximately 100% Approximately 17.5 mm (from the rear end of the camera eyepiece) Diopter adjustment: -4~+2m-1 Magnification: 0.62x with 50mm lens (35mm equivalent) at infinity and diopter set to -1.0m-1 Diagonal angle of view: approximately 31° (horizontal angle of view: approximately 26° ) Built-in eye sensor |
LCD monitor |
3.0-inch color touch screen LCD monitor Aspect ratio: 3:2 Number of dots: approximately 1.84 million dots |
Touch screen mode |
Shooting mode |
Shooting, autofocus, focus area, off, double tap setting (ON/OFF), touch function setting (ON/OFF), touch zoom (ON/OFF), touch screen EVF area setting |
|
Playback mode |
Swipe, Zoom in/out, Double tap, Drag |
Video Recording |
File format |
MOV: HEVC/H.265, Linear PCM (24bit/48KHz stereo audio sampling) MPEG-4 AVC/H.264, Linear PCM (24bit/48KHz stereo audio sampling) MP4: MPEG-4 AVC/H.264, AAC |
|
Movie compression |
All internal/long GOP |
|
File size Frame rate Bitrate |
[6.2K(3:2)] 6240 x 4160 29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [DCI4K(17:9)] 4096 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [4K(16:9)] 3840 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9)] 2048 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(16:9)] 1920 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD LP(17:9)] 2048 x 1080 (1.29x crop) 59.94p/50p 360Mbps/200Mbps/100Mbps/50Mbps [Full HDLP(16:9)] 1920 x 1080 (1.29x crop) 59.94p/50p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9) High Speed Recording] 2048 x 1080 240p/200p/120p/100p 360Mbps(record)/200Mbps(record) [Full HD(16:9) High Speed Recording] 1920 x 1080 240p/200p/120p/100p 360Mbps(record)/200Mbps(record) *Use an SD memory card with a speed class of UHS 3 or higher to record movies. *For 360 Mbps movie recording, use an SD memory card with a video speed class of 60 or higher. *The selected bitrate will change depending on the setting. *Recording time may be reduced depending on temperature and/or shooting conditions |
Film simulation mode |
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia) |
Monochrome |
Yes |
Grain effect |
Roughness |
STRONG, WEAK, OFF |
|
Size |
LARGE, SMALL |
Color Chrome Effect |
STRONG, WEAK, OFF |
Colour chrome Blue |
STRONG, WEAK, OFF |
Dynamic range adjustment |
Still |
AUTO / 100% / 200% / 400% ISO limitation: DR100%: No limitation、DR200%: ISO320 or more、DR400%: ISO640 or more |
|
Film |
100% / 200% / 400% ISO restriction: DR100%: No restriction、DR200%: ISO320 or more、DR400%: ISO640 or more |
White balance |
Automatically |
White Priority / Auto / Ambient Priority |
|
Custom |
Custom1 - 3 |
|
Color Temperature Selection |
2500K~10000K |
|
Preset |
Daylight / shade / fluorescent-1 / fluorescent-2 / fluorescent-3 / incandescent / underwater |
Brightness adjustment |
±5 steps |
Self-timer |
Still |
10sec. / 2sec. |
|
Video |
10sec. / 5sec. / 3sec. |
Interval shooting with timer |
Yes (Settings : Interval, Frame rate, Start time, Interval exposure smoothing, Interval priority mode) |
Wireless transmitter |
Standard |
IEEE802.11a/b/g/n/ac (standard wireless protocol) |
|
Encryption |
WPA/WPA2 mixed mode, WPA3 |
|
Access mode |
Infrastructure |
Bluetooth® |
Standardd |
Bluetooth Ver. 4.2 (Bluetooth low energy) |
|
Operating frequency (medium frequency) |
2402~2480MHz |
Terminal |
Digital interface |
USB Type-C (USB3.2 Gen2x1) |
|
HDMI output |
HDMI Micro connector (type D) |
|
Other |
ø3.5 mm, stereo mini connector (microphone) ø3.5 mm, stereo mini connector (headphone) Hot shoe |
Power supply |
Lithium-ion battery NP-W235 (included) |
|
Battery life for still images*2 |
Power saving mode: Approximately 800 shots Normal mode: Approximately 750 shots *At XF35mmF1.4 R setting |
|
Actual battery life when shooting video*2 |
6.2K: Approximately 85 min (29.97p) 4K: Approximately 80 min (59.94p) Full HD: (59.94p), approx. 95 min. (120P) *Face detection is set to OFF |
|
Continuous battery life during video recording*2 |
6.2K: Approx. 120 min. (29.97p) 4K: Approximately 110 min (59.94p) Full HD: (59.94p) *Face detection is set to OFF |
Dimensions |
Width: 127.7 mm Height: 85.1 mm Depth: 65.4 mm (Minimum depth: 32.9 mm) |
Weight |
including battery and memory card: Approximately 491 g without battery and memory card: Approximately 410 g without battery and memory card |
Operating environment |
Operating temperature |
0℃~+40℃ |
|
Operating humidity |
10%-80% (non-condensing) |
Supplied accessories |
Li-ion battery NP-W235 AC-5VJ power adapter Power outlet adapter USB cable Shoulder strap Body cover Cooling fan connector cover |
