Model name |
FUJIFILM X-T5 |
Lens Mount |
FUJIFILM X mount |
Image sensor |
23.5mm x 15.7mm (APS-C) X-Trans CMOS 5 HR with primary color filter |
Number of effective pixels |
40.2 millions pixels |
Sensor Cleaning System |
Ultra Sonic Vibration |
Image Processing Engine |
X-Processor 5 |
Storage media |
SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 *Please check Compatibilityfor more detail. |
File format of still image |
DCF |
Compliant with Design rule for Camera File system (DCF2.0) |
|
JPEG |
Exif Ver.2.32*1 |
|
HEIF |
4:2:2 10bit |
|
RAW |
14bit RAW (RAF original format) |
|
TIFF |
8bit / 16bit RGB (In-camera Raw Conversion Only) |
Number of recorded pixels |
[L] |
〈4:3〉 6864 x 5152 〈3:2〉 7728 x 5152 〈16:9〉 7728 x 4344 〈1:1〉 5152 x 5152 〈5:4〉 6432x5152 |
|
[M] |
〈4:3〉 4864 x 3648 〈3:2〉 5472 x 3648 〈16:9〉 5472 x 3080 〈1:1〉 3648 x 3648 〈5:4〉 4560x3648 |
|
[S] |
〈4:3〉 3456 x 2592 〈3:2〉 3888 x 2592 〈16:9〉 3888 x 2184 〈1:1〉 2592 x 2592 〈5:4〉 3264x2592 |
Panorama |
[L] |
〈vertical〉 9600 x 2160 〈Horizontal〉 9600 x 1440 |
|
[M] |
〈vertical〉 6400 x 2160 〈Horizontal〉 6400 x 1440 |
Digital Tele-Converter |
2.0x / 1.4x / OFF |
Sensitivity |
Still Image |
Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO125 - 12800 (1/3 step) Extended Output: ISO64 / ISO80 / ISO100 / ISO25600 / ISO51200 |
|
Movie |
Standard Output: AUTO / ISO125 - 12800 (1/3 step) Extended Output: ISO25600 |
Exposure control |
TTL 256-zone metering / Multi / Spot / Average / Center Weighted |
Exposure mode |
P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure) |
Exposure compensation |
Still |
-5.0EV - +5.0EV 1/3EV step |
|
Movie |
-2.0EV - +2.0EV 1/3EV step |
Image stabilizer |
Mechanism |
Image sensor shift mechanism with 5-axis compensation |
|
Compensation Effect |
7.0 stops *based on CIPA standard *Pitch/yaw shake only *With XF35mmF1.4 R lens mounted |
|
Digital Image Stabilization |
Yes (movie mode only) |
|
IS MODE BOOST |
Yes (movie mode only) |
Shutter type |
Focal Plane Shutter |
Shutter speed |
Mechanical shutter |
P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. |
|
Electronic shutter |
P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: 1sec. Fixed *The shutter speed ranges for continuous mode may differ from those listed here. |
|
Electronic front curtain shutter |
P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. |
|
Mechanical + Electronic shutter |
P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. *Mechanical shutter works until 1/8000sec. *The shutter speed ranges for continuous mode may differ from those listed here. |
|
E-front + Mechanical shutter |
P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. *Electronic front curtain shutter works until 1/2000sec. |
|
E-front + Mechanical + Electronic shutter |
P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. *Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec. *The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used. *The shutter speed ranges for continuous mode may differ from those listed here. |
|
Movie |
6.2K: 1/8000sec. to 1/24 sec. DCI4K/4K: 1/8000sec. to 1/4 sec. FHD: 1/8000sec. to 1/4 sec. *Cannot choose slower shutter speed than framerate for some settings. |
|
Synchronized shutter speed for flash |
Mechanical shutter: 1/250sec. or slower |
Continuous shooting |
CH Electronic shutter Approx. 20fps (1.29x Crop) (JPEG 168 frames, Compressed RAW 72 frames, Lossless compressed RAW 41 frames, Uncompressed RAW 23 frames, Compressed RAW + JPEG 37 frames, Lossless compressed RAW + JPEG 31 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 13fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 104 frames, Lossless compressed RAW 53 frames, Uncompressed RAW 23 frames, Compressed RAW + JPEG 56 frames, Lossless compressed RAW + JPEG 44 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 10fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 70 frames, Uncompressed RAW 25 frames, Compressed RAW + JPEG 72 frames, Lossless compressed RAW + JPEG 53 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 13fps (JPEG 163 frames, Compressed RAW 56 frames, Lossless compressed RAW 29 frames, Uncompressed RAW 22 frames, Compressed RAW+JPEG 32 frames, Lossless compressed RAW+JPEG 26 frames, Uncompressed RAW+JPEG 20 frames) CH Electronic shutter Approx. 8.9fps (JPEG 1000+ frames, Compressed RAW 94 frames, Lossless compressed RAW 40 frames, Uncompressed RAW 23 frames, Compressed RAW+JPEG 45 frames, Lossless compressed RAW+JPEG 30 frames, Uncompressed RAW+JPEG 22 frames) CH Mechanical shutter Approx. 15fps (JPEG 119 frames, Compressed RAW 39 frames, Lossless compressed RAW 22 frames, Uncompressed RAW 19 frames, Compressed RAW+JPEG 27 frames, Lossless compressed RAW+JPEG 21 frames, Uncompressed RAW+JPEG 19 frames) CH Mechanical shutter Approx. 10fps (JPEG 1000+ frames, Compressed RAW 56 frames, Lossless compressed RAW 29 frames, Uncompressed RAW 19 frames, Compressed RAW+JPEG 34 frames, Lossless compressed RAW+JPEG 25 frames, Uncompressed RAW+JPEG 19 frames) CL Mechanical shutter Approx. 7.0fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 33 frames, Uncompressed RAW 20 frames, Compressed RAW+JPEG 45 frames, Lossless compressed RAW+JPEG 22 frames, Uncompressed RAW+JPEG 20 frames) Pre-shot Electronic shutter Approx. 20fps (1.29x Crop) (While half press 20 frames, After full press 140 frames) Pre-shot Electronic shutter Approx. 13fps (1.29x Crop) (While half press 13 frames, After full press 300 frames) Pre-shot Electronic shutter Approx. 10fps (1.29x Crop) (While half press 10 frames, After full press 370 frames) Pre-shot Electronic shutter Approx. 13fps (While half press 13 frames, After full press 70 frames) *Recordable frames depends on recording media *Speed of continuous shooting depends on shooting environment and shooting frames |
Drive Mode |
AE Bracketing |
2 frames / 3 frames / 5 frames / 7 frames / 9 frames *by 1/3EV step, up to ±3EV steps |
|
Filmsimulation bracketing |
Any 3 types of film simulation selectable |
|
Dynamic Range Bracketing |
100% / 200% / 400% |
|
ISO sensitivity Bracketing |
±1/3EV / ±2/3EV / ±1EV |
|
White Balance Bracketing |
±1 / ±2 / ±3 |
|
Focus Bracketing |
AUTO / MANUAL |
|
Multiple Exposure |
Yes (Max. 9 frames) / Additive / Average / Bright / Dark |
|
HDR Mode |
AUTO / 200% / 400% / 800% / 800% + |
|
Advanced filter |
Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
|
Pixel Shift Multi Shot |
Yes |
Focus |
Mode |
Single AF / Continuous AF / MF |
|
Type |
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
|
Low-light Performance |
Contrast: -4.0EV XF50mmF1.0 attached Phase Detection: -7.0EV XF50mmF1.0 attached |
|
AF frame selection |
Single point AF: 13x9 / 25x17 (Changeable size of AF frame) Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking) All: Yes |
|
Face/eye detection |
Yes |
|
Subject detection |
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train) |
Flash |
EF-X8 |
Guide Number: approx. 11 (ISO200・m) / approx. 8 (ISO100・m) Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF |
|
Shoe mount flash |
Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS) Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF |
|
Synchronized terminal |
Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: MANUAL |
Hot shoe |
Yes (Dedicated TTL Flash compatible) |
Viewfinder |
EVF: 0.5 inch OLED Color Viewfinder, Approx. 3.69 million dots Coverage of Viewing Area vs. Capturing Area: Approx. 100% Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece) Diopter Adjustment: -5 - +3m-1 Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1 Diagonal Angle of View: approx. 39° (Horizontal angle of view: approx. 32° ) Built-In Eye Sensor |
LCD monitor |
3.0 inch Tilt-Type(Three Direction) Touch Screen Color LCD Monitor Aspect Ratio: 3:2 Dots: Approx. 1.84 million dots |
Touch Screen Mode |
Shooting Mode |
Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting |
|
Playback Mode |
Swipe, Pinch-in / Pinch-out, Double-tap, Drag |
Movie recording |
File format |
MOV: HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling) MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling) MP4: MPEG-4 AVC/H.264, AAC |
|
Movie compression |
All Intra / Long GOP |
|
File size Frame rate Bitrate |
[6.2K(16:9)] 6240 x 3510 29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [DCI4K HQ(17:9)] 4096 x 2160 29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [4K HQ(16:9)] 3840 x 2160 29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [DCI4K(17:9)] 4096 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [4K(16:9)] 3840 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9)] 2048 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(16:9)] 1920 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9) High speed rec.] 2048 x 1080 240p/200p/120p/100p 360Mbps(recording)/200Mbps(recording) [Full HD(16:9) High speed rec.] 1920 x 1080 240p/200p/120p/100p 360Mbps(recording)/200Mbps(recording) *For recording movies, use a SD memory card with UHS Speed Class 3 or higher. *For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher. *Selectable bitrate will be changed depends on the setting. *Recording time can become short depending on the temperature and/or shooting conditions |
Film simulation mode |
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia) |
Monochromatic Color |
Yes |
Grain Effect |
Roughness |
STRONG, WEAK, OFF |
|
Size |
LARGE, SMALL |
Color Chrome Effect |
STRONG, WEAK, OFF |
Color chrome Blue |
STRONG, WEAK, OFF |
Smooth Skin Effect |
STRONG, WEAK, OFF |
Dynamic range setting |
Still |
AUTO / 100% / 200% / 400% ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more |
|
Movie |
100% / 200% / 400% ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more |
White balance |
Auto |
White Priority / Auto / Ambience Priority |
|
Custom |
Custom1 - 3 |
|
Color temperature selection |
2500K - 10000K |
|
Preset |
Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater |
Clarity setting |
±5 steps |
Self-timer |
Still |
10sec. / 2sec. |
|
Movie |
10sec. / 5sec. / 3sec. |
Interval timer shooting |
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode) |
Wireless transmitter |
Standard |
IEEE802.11a/b/g/n/ac (standard wireless protocol) |
|
Encryption |
WPA/WPA2 mixed mode, WPA3 |
|
Access mode |
Infrastructure |
Bluetooth® |
Standartd |
Bluetooth Ver. 4.2 (Bluetooth low energy) |
|
Operating frequency (Center frequency) |
2402 - 2480MHz |

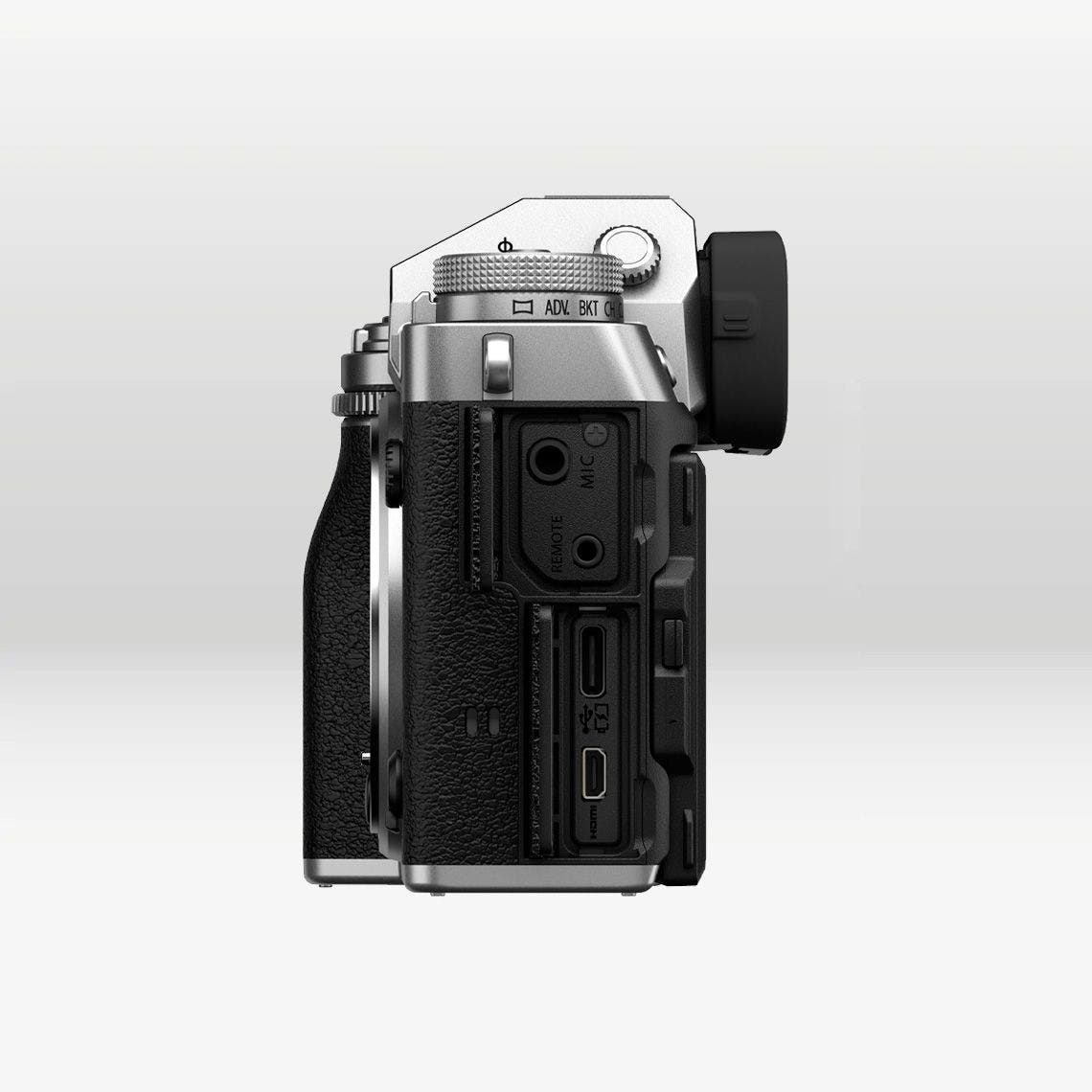

Terminal |
Digital interface |
USB Type-C (USB3.2 Gen2x1) |
|
HDMI output |
HDMI Micro connector (Type D) |
|
Others |
ø3.5mm, stereo mini connector (Microphone) ø2.5mm, Remote Release Connector Hot shoe Synchronized terminal |

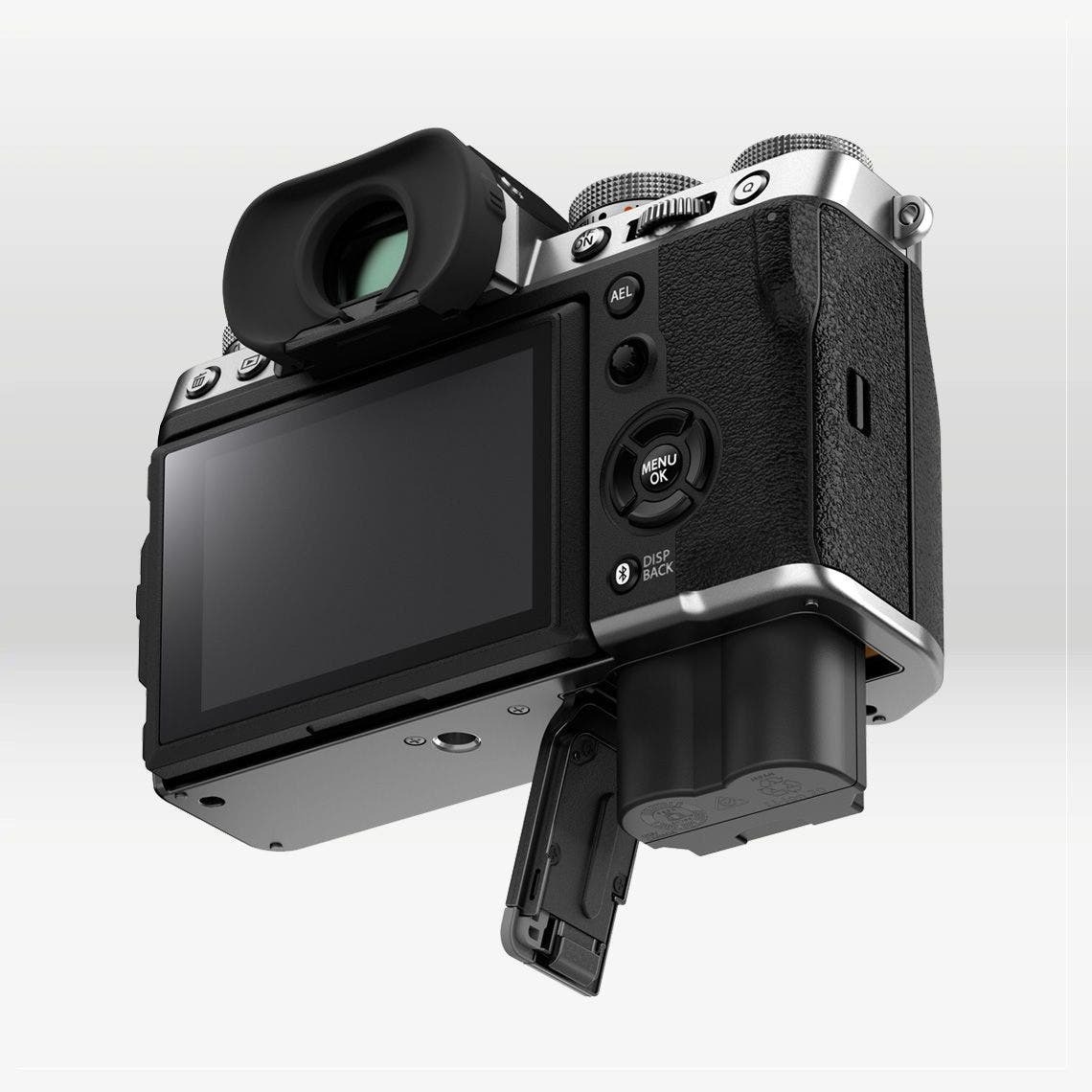

Power supply |
NP-W235 Li-ion battery (included) |
|
Battery life for still images*2 |
Economy Mode: Approx. 740 frames Normal Mode: Approx. 580 frames *When XF35mmF1.4 R is set |
|
Actual battery life of movie capture*2 |
6.2K: Approx. 90min. (29.97p) 4K: Approx. 80min. (59.94p) Full HD: Approx. 90min. (59.94p), Approx. 100min. (120P) *Face detection is set to OFF |
|
Continuance battery life of movie capture*2 |
6.2K: Approx. 130min. (29.97p) 4K: Approx. 130min. (59.94p) Full HD: Approx. 150min. (59.94p) *Face detection is set to OFF |
Dimensions |
Width: 129.5mm Height: 91mm Depth: 63.8mm (Minimum Depth: 37.9mm) |
Weight |
including battery and memory card: Approx. 557g excluding battery and memory card: Approx. 476g |
Operation Environment |
Operating Temperature |
-10℃ - +40℃ |
|
Operating Humidity |
10% - 80% (no condensation) |
Starting up period |
Approx. 0.49sec. |
Accessories included |
Li-ion battery NP-W235 AC power adapter AC-5VJ Plug adapter USB cable Headphone adapter Shoulder strap Body cap Hot shoe cover Sync terminal cover |
