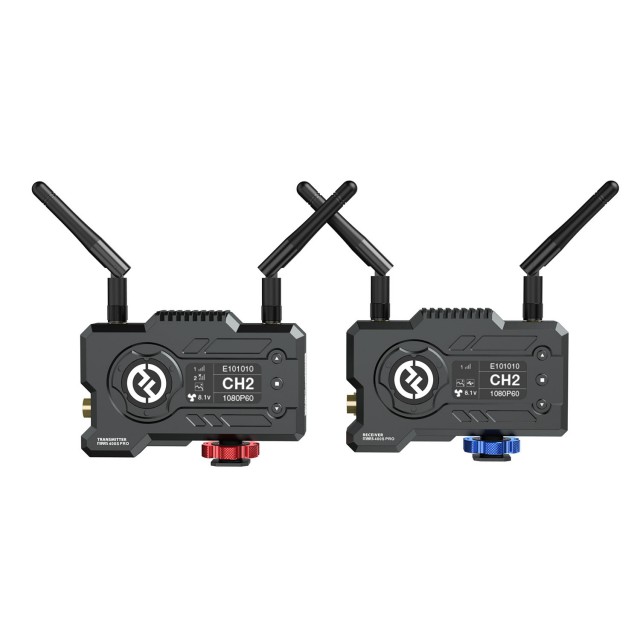

Hollyland Mars 400S Pro

Mars 400S Pro, an updated version of Mars 400S, features new design, better latency (0.08s); optional fan modes (Off, Low Speed & Auto); direct monitoring video feed for live streaming; optimized monitoring feed; data rate raised from 8 Mbps to 12 Mbps; multiple power options; and in-app channel scan as well as firmware update.

The system supports 1x transmitter connection with up to 2 receivers; supports up to 2 mobile devices monitoring while only 1 receiver is connected; supports up to 4 mobile devices monitoring without receiver connected. The modules feature OLED display screens; channel scan feature, three application scene modes; battery voltage display; 121 m transmission range (LOS); integrated cold shoes for quick installation; and versatile powering options.

Parameters:
Interfaces (Transmitter): HDMI Input (Type A Female), SDI Input, 2x Antenna Interface (RP-SMA Male), DC Input, USB Type-C
Interfaces (Receiver): HDMI Output (Type A Female), SDI Output, 2x Antenna Interface (RP-SMA Male), DC Input, USB Type-C
Power (each): Power Input: 6-16V=, USB Type-C 5V/2A, Battery: 6-16V=
Power Consumption: <11W (transmitter), <7W (Receiver)
Weight (each): 206 g
Dimensions (each, excl. battery plate): 110x72x33,5 mm
Input/Output Formats (Transmitter): HDMI: 480p60, 576p50, 720p50/59,94/60, 1080i50/59,94/60, 1080p23,98/24/25/29,9/30, 1080p50/59,94/60; SDI: 1080p60/59,94/50 (Level A), 1080p60/59,94/50 (Level B), 1080i60/59,94/50, 1080p30/29,97/25/24/23,98, 1080PsF 25, 720p60/59,94/50, 1080PsF 24/23,98
Input/Output Formats (Receiver): HDMI: 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60; SDI: 1080p60/50 (Level A), 1080p60/50, 1080p30/25/24, 720p60/50, 1080i50 (1080PsF 25/24/23,98), 1080i60 (1080PsF 30/29,97)
Frequency: 5 GHz
Modulation: OFDM
Transmission Power / Receiver Sensitivity: 21 dBm / 80 dBm
Latency: 0,08 s
Bandwidth: 20 MHz
Set Includes: 1x Transmitter, 1x Receiver, 5x Antenna, 1x DC Adapter, User Guide
