Hollyland Mars M1 Enhanced

The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver and monitoring functions into one body! The 5.5″ touchscreen display with accurate color calibration and Rec.709 color gamut, delivers precise monitoring including professional image analysis features. The device offers an impressive range (line-of-sight) of up to 150m and boasts a low latency of approximately 0.08 seconds, ensuring seamless monitoring without noticeable lag. This versatile all-in-one unit can be used as a transmitter or receiver and is also compatible with Hollyland Mars 4K, 300 Pro and 400 Pro products. The HollyView app for iOS/Android allows you to watch video using your smartphone or tablet. On sale as of 11/2023.

The Mars M1 Enhanced Wireless Receiver/Transmitter/Monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device that integrates transmitter, receiver and monitor functions into a single solution, you can easily switch between transmitter and receiver modes in its menu. In addition, a single Mars M1 Enhanced transmitter can be seamlessly connected to up to two receivers or four mobile apps. The device is designed to work easily with Mars Pro and Mars 4K series video transmission systems.

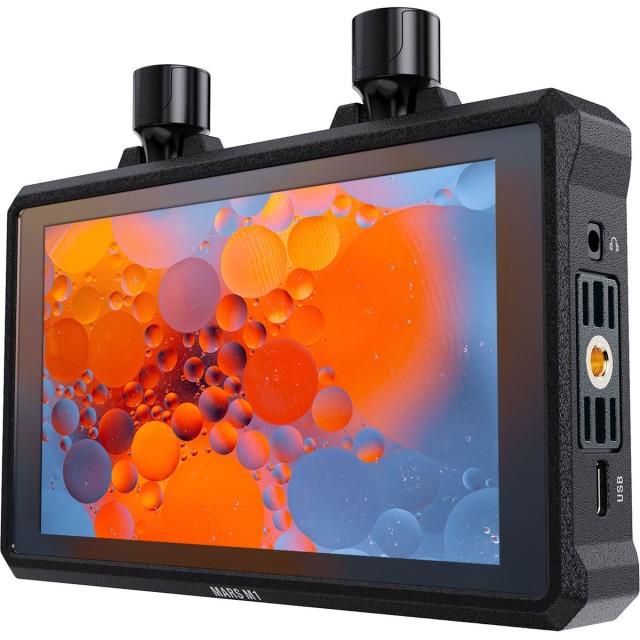

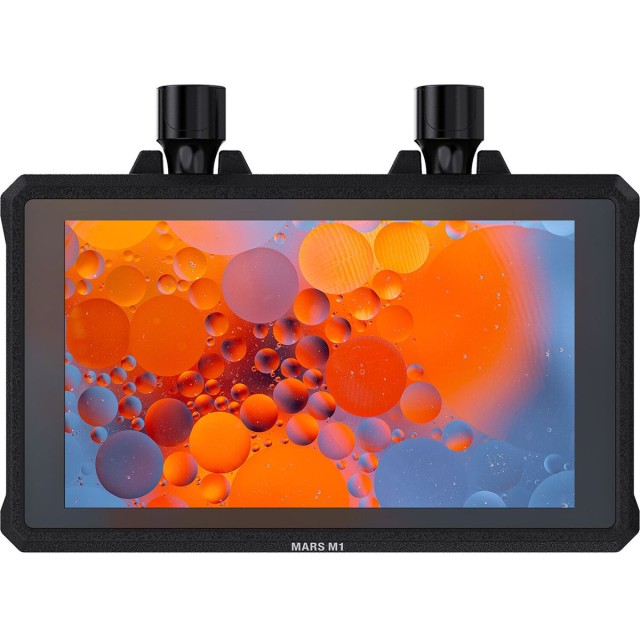

The Mars M1 Enhanced is a high-end monitor with excellent color accuracy. With a highly responsive 5.5″ LCD touchscreen and brightness up to 1000 cd/m2, it is ideal for indoor and outdoor use. The monitor undergoes a colour calibration process during manufacture for maximum colour accuracy. In addition, you can fine-tune the RGB components through resetting to achieve color balance for your specific needs.

The Mars M1 Enhanced uses the HollyOS operating system offering a comprehensive set of advanced monitoring tools. And with support for decimal frame rates, the Mars M1 Enhanced also supports HDMI 4K/30fps input and output for expanded connectivity and compatibility. The SDI input also provides extensive connectivity options to meet the ever-widening range of professional video production needs.

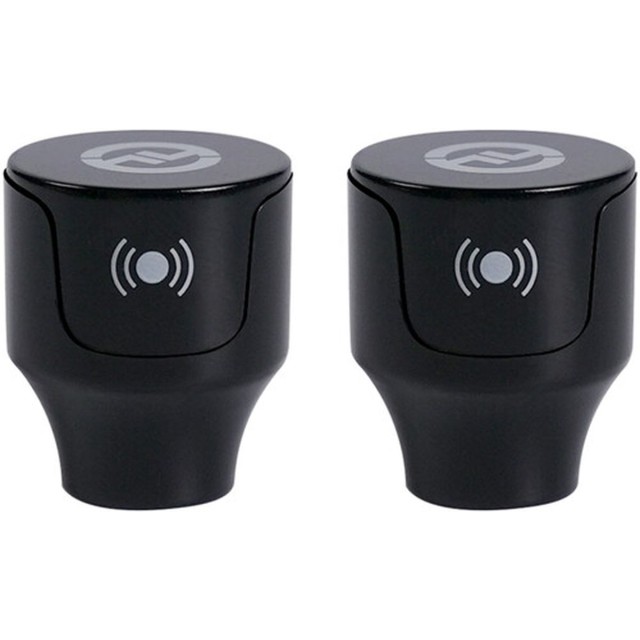

The Mars M1 Enhanced is equipped with an intelligent channel scanning feature to help determine which channels are busy and which can be safely selected, ensuring stable, interference-free connections. It comes with newly designed compact antennas that save you time by eliminating the need for repeated disassembly and reassembly. It weighs approximately 400g and is manufactured with a high impact resistant body shell to ensure maximum durability and protection even in harsh working environments.

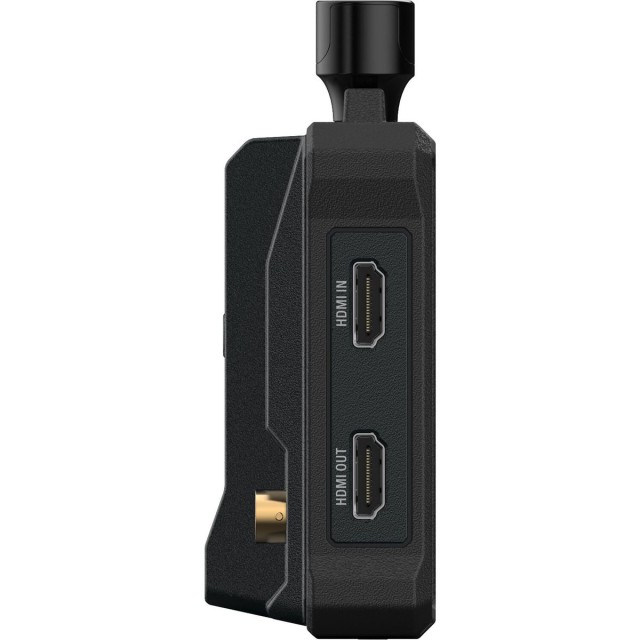

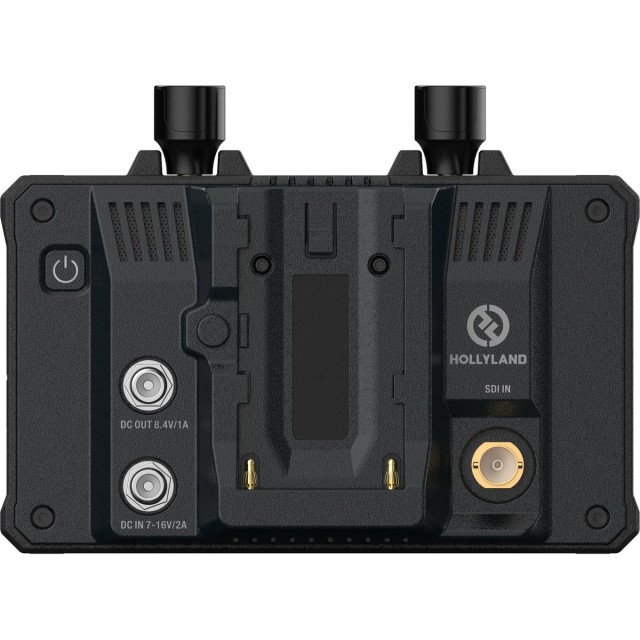

• Inputs: HDMI 1.4b (female type A), 3G-SDI (female BNC)
• Outputs: HDMI 1.4b (Loop Out) (female type A)
• Antennas: 2x RP-SMA, male
• Power Input: 2mm socket
• Power Output: 2mm socket

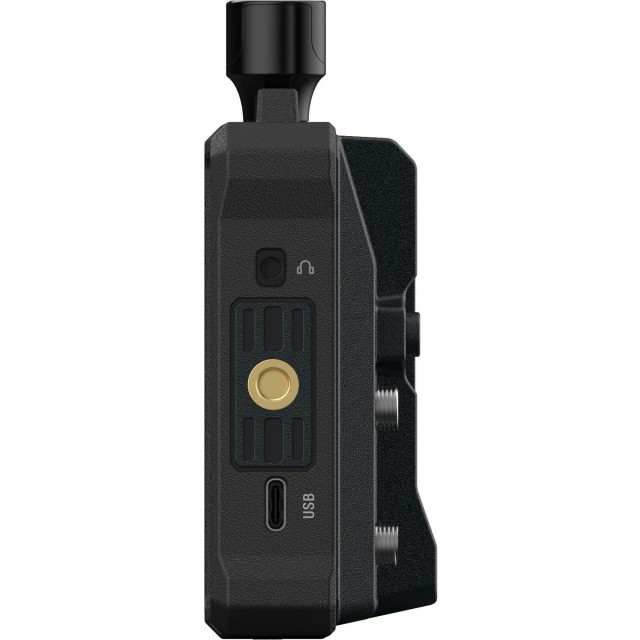

• Headphone: 3.5mm TRS
• USB-C (USB-2.0 OTG)
• Display: 5.5″ touch
• Resolution: 1920x1080, 403 ppi, 16:9
• Brightness: 1000 cd/m2
• Contrast: 1000:1
• Input voltage: DC IN 7-16V 2.5A (nominal 12V), NP-F battery 6.8V-8.4V
• Output Voltage: 8.4V= ±5%
• Power consumption: <16 W
• Net weight: approx. 400 g without external antennas
• Dimensions: 152x96x40 mm without external antennas
• Input resolution: HDMI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz; SDI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60 Hz (3G-SDI level A), 1080p50/59.94/60 Hz (3G-SDI level B).
• Output resolution: HDMI Loop Out (HDMI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz; HDMI Loop Out (SDI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29. 97/30/50/59.94/60 Hz; Note: When the device is connected to a Mars 4K transmitter in receiver mode and the HDMI video input resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI video output resolution is 1920x1080p24/25/30 Hz.
• Operating frequencies: 5.150-5.250 GHz, 5.250-5.350 GHz, 5.470-5.725 GHz, 5.725-5.850 GHz.
• H.264 codec
• Bit rate: 12 Mbps
• Transmit power: ≤ 21+/-1.5 dBm
• Transmission delay: approximately 0.08 s (test data when transmitting a 1080p60 signal in a lab environment)
• Range (line-of-sight): up to 150 m in an undisturbed outdoor environment
• Bandwidth: 20 MHz
• Audio format: 8x audio channels for HDMI 1.4b
• Operating temperature: -10 to 60 C
